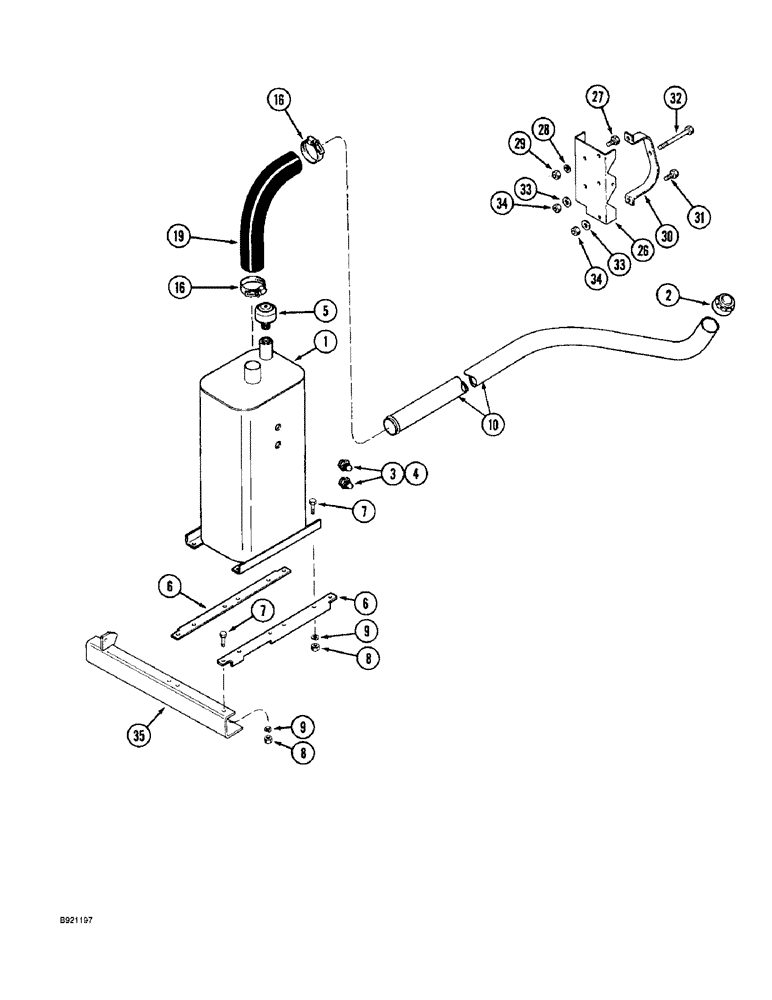

Запчасти Case IH 1800 (8-02) - HYDRAULIC RESERVOIR (07) - HYDRAULICS

1272252C93

TANK, HYDRAULIC OIL

RESERVOIR ASSEMBLY - hydraulic oil

1шт.

1

NSS

NOT SOLD SEPARAT

RESERVOIR - oil, order reservoir assembly 1272252C93

1шт.

2

1272941C2

BREATHER

CAP - breather (Replaces cap 1272941C1)

1шт.

3

244600R92

SIGHTGLASS

GAUGE - sight

2шт.

4

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

5

923745C91

BREATHER ASSY.

BREATHER - reservoir

1шт.

6

1288807C2

ANGLE BAR

ANGLE - reservoir support

2шт.

7

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

11шт.

8

425-106

NUT,3/8"-16, Cl 5

11шт.

9

492-11038

LOCK WASHER,3/8"

11шт.

10

1329200C1

HYD TUBE

TUBE - reservoir filler

1шт.

16

214-1448

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

CLAMP - adjustable, 2-9/16 - 3-1/2 inch diameter (Replaces clamp 27392R1)

2шт.

19

1329201C1

FITTING

ELBOW - reservoir filler tube

1шт.

26

1345163C2

SUPPORT

BRACKET - fill tube

1шт.

27

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

28

492-11038

LOCK WASHER,3/8"

2шт.

29

425-106

NUT,3/8"-16, Cl 5

2шт.

30

1345166C2

CLAMP

- fill tube

1шт.

31

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

32

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch

1шт.

33

495-51041

WASHER,3/8"

- flat, 13/32 x 47/64 x 1/16 inch

2шт.

34

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

3шт.

35

1990426C1

SUPPORT

- channel

1шт.
