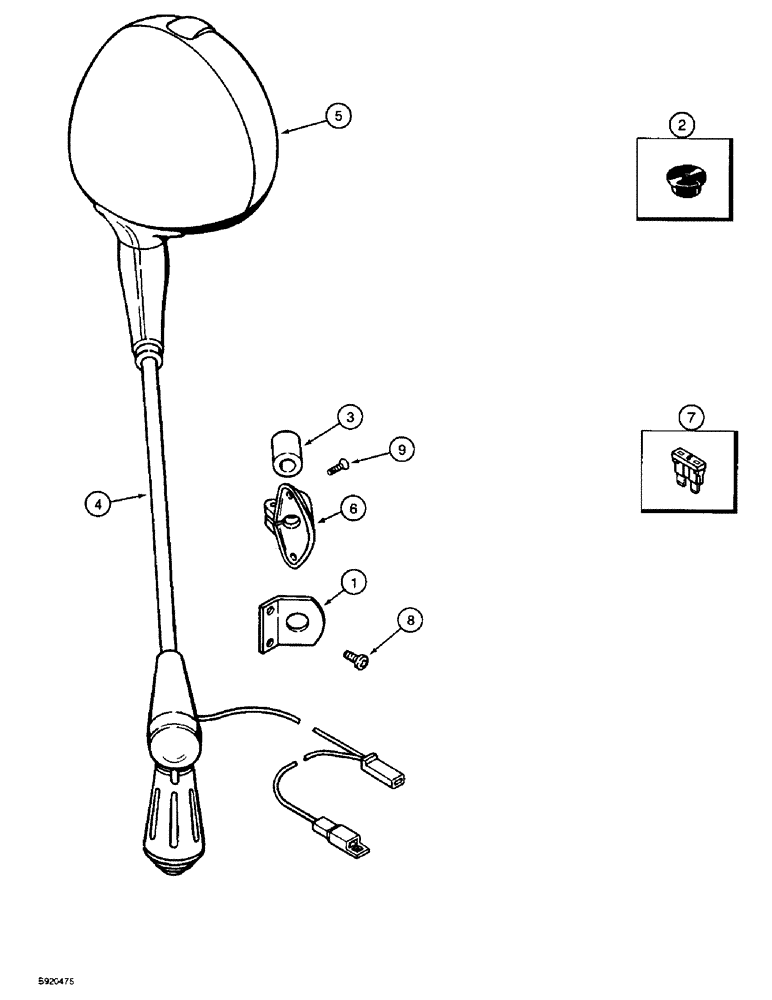

Запчасти Case IH 1800 (4-36) - CAB SPOTLAMP (06) - ELECTRICAL SYSTEMS

1323590C91

LAMP BASE

KIT - flood lamp, no longer available as a unit, order components

1шт.

1

1329859C1

BRACKET

- flood lamp

1шт.

2

1330144C1

GROMMET

- wire

1шт.

3

1330145C1

BUSHING

- bracket

1шт.

4

91938C1

INTERIOR LIGHT

LAMP ASSEMBLY - flood

1шт.

5

28753R1

LIGHT

LAMP - sealed beam, No. H7604

1шт.

6

92015C1

BRACKET

- flood lamp

1шт.

7

A149798

FUSE

- tan, 5 ampere

1шт.

7

A149799

FUSE

- brown, 7-1/2 ampere

1шт.

8

261-1456

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - self-tapping, No. 10 NC x 3/8 inch

2шт.

9

265-1358

SELF-TAP SCREW,Cross Oval Hd, #10 x 1/2"

SCREW - self-tapping, oval Phillips, No. 10 NC x 1/2 inch

2шт.

8-27571

INSTRUCTION

SHEET - installation instructions

1шт.
