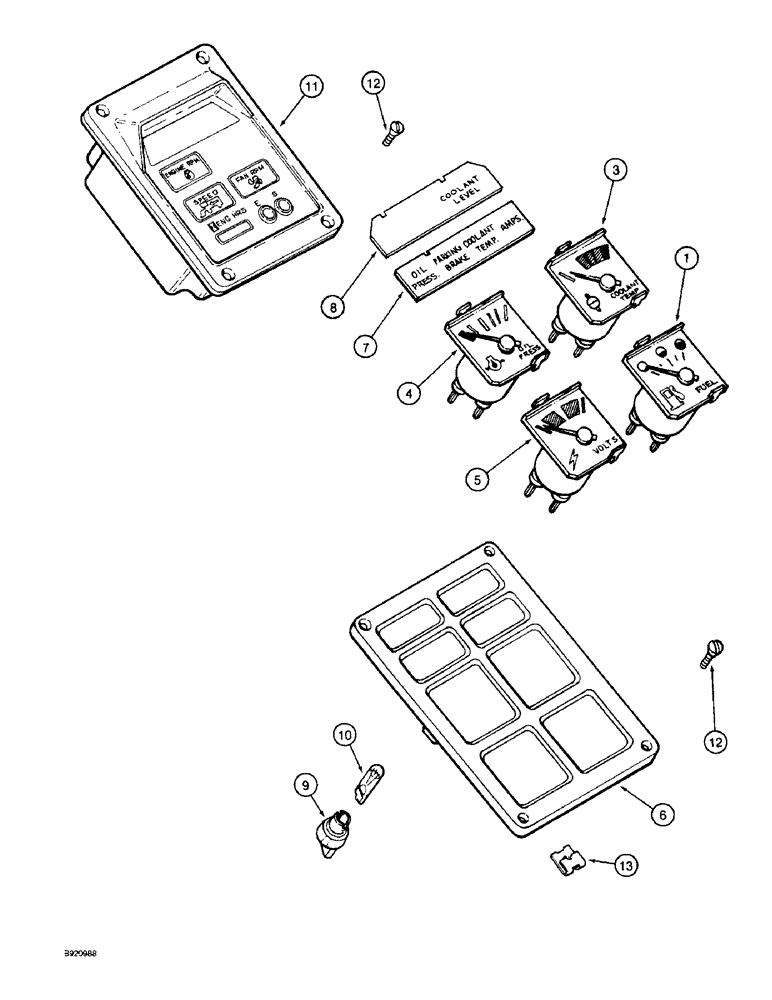

Запчасти Case IH 1800 (4-24) - INSTRUMENT CLUSTER AND TACHOMETER (06) - ELECTRICAL SYSTEMS

1964923C1

GAUGE ASSY.

CLUSTER ASSEMBLY - instrument

1шт.

1

121604C2

ELECTRICAL GAUGE

GAUGE - fuel (Replaces gauge 121604C1)

1шт.

3

1964922C1

GAUGE ASSY.

GAUGE - temperature

1шт.

4

121606C2

ELECTRICAL GAUGE

GAUGE - oil pressure (Replaces gauge 121606C1)

1шт.

5

121607C2

ELECTRICAL GAUGE

GAUGE - system voltage (Replaces gauge 121607C1)

1шт.

6

121608C1

GASKET

BEZEL - instrument cluster

1шт.

7

187597C1

LENS

- oil pressure, brake, temperature and amperes

1шт.

8

1979357C1

LENS

- coolant level

1шт.

9

121611C1

SOCKET

- bulb

6шт.

10

W10478

LAMP

BULB - lamp, No. 194, if used (Replaces bulb 20627R1)

6шт.

10

D71346

TAIL LAMP,12V

BULB - lamp, No. 168, if used (Replaces bulb 26617R1)

6шт.

11

1983689C2

TACHOMETER

- new

1шт.

11

1935116C1

REMAN-ELECT GAUGE

TACHOMETER - remanufactured, North America only

1шт.

11

1935115C1

CORE GAUGE ELECT

RETURN NUMBER - use this part number to return tachometer core for credit when using a remanufactured assembly

1шт.

12

265-13512

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - self-tapping, oval Phillips, No. 10 NC x 3/4 inch

8шт.

13

445357

SPRING NUT,J, #10-16

- J-shape, special, No. 10 NC

8шт.
