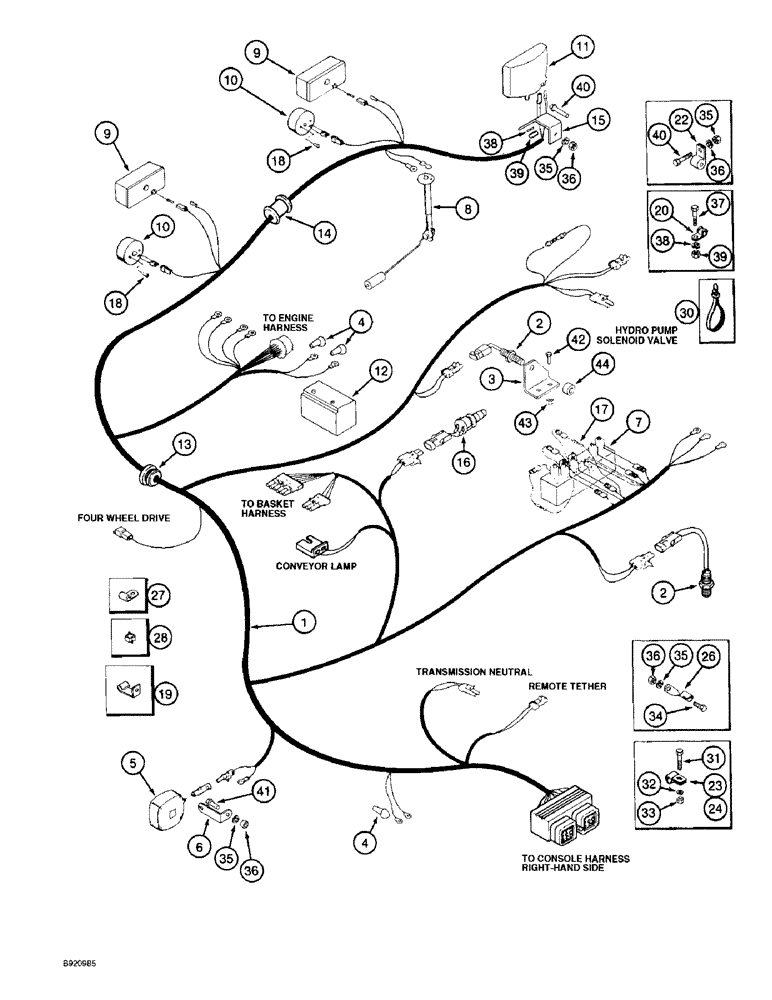

Запчасти Case IH 1800 (4-20) - REAR HARNESS (06) - ELECTRICAL SYSTEMS

1

1987541C1

HARNESS

- rear

1шт.

2

245193C2

SENSOR

- transducer, MPH and fan RPM

2шт.

3

1285232C1

SUPPORT

BRACKET - transmitter

1шт.

4

399470R1

BOOT

- cable

3шт.

5

192051A1

SERVICE KIT

LAMP ASSEMBLY - side warning, parts list page 4-33

2шт.

6

1283289C1

ANGLE

BRACKET - mounting

2шт.

7

1340837C2

VALVE

ASSEMBLY - manifold, parts list page 8-25

1шт.

8

121810C1

ELECTRICAL GAUGE

SENDER - fuel level gauge

1шт.

9

130882C91

LAMP

LAMP ASSEMBLY - warning, parts list page 4-33

2шт.

10

131183C91

STOP LIGHT

LAMP ASSEMBLY - tail, parts list page 4-35

2шт.

11

245897C91

LAMP, WORK

LAMP - flood, 80 x 30 Halogen, parts list page 4-31

1шт.

12

BMF31ES

BATTERY, DRY

BATTERY - 12 volt (Replaces battery A186008)

1шт.

13

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

- rubber, 1/2 inch ID

1шт.

14

1321767C1

GROMMET

- left-hand side sheet, no longer used, order grommet 198824C1 above

3шт.

15

561915R1

BRACKET

- lamp

1шт.

16

1983297C2

IGNITION SWITCH

SWITCH - basket door open limit

1шт.

17

548239R2

RECTIFIER

- nonlocking, if used

1шт.

17

113699A1

RECTIFIER

- locking, 2-5/8 inch long, if used

1шт.

18

260-14512

SCREW,Cross Pan Hd, #10 x 3/4"

- self-tapping, pan Phillips, No. 10 NC x 3/4 inch

4шт.

19

370383R1

CLIP

CLAMP - harness, warning lamp cables

4шт.

20

515-25317

CLAMP,1 1/4", Insul, 1/2" Bolt

P-type, Used at right-hand front side of frame and top of platform (Replaces clamp 299608C1) 1 1/4", Insul, 1/2" Bolt

2шт.

20

515-2195

CLAMP,3/8", Insul, 1/4" Bolt

- P-type, 3/8 inch diameter, frame crossmember (Replaces clamp 299403c1)

1шт.

22

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type, Harness, retaining, frame, RH side 1", Insul, 3/8" Bolt

1шт.

22

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

P-type, Behind fuel tank 1/2", Insul, 1/2" Bolt

2шт.

23

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type, Used at RH side of frame and front crossmember 3/4", Insul, 3/8" Bolt

2шт.

24

A62209

CLAMP,5/16", Insul, 1/4" Bolt

- P-type, used at basket deck and fan support crossmember

1шт.

26

363660R1

CLIP

CLAMP - harness, air cleaner bracket

1шт.

27

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - P-type, used at transmission and ether bracket

3шт.

27

366460R1

CABLE CLIP

CLIP - harness, fan speed transducer cables

2шт.

28

862576R1

CLAMP

- harness, tail lamp cables

4шт.

30

702093C1

CABLE TIE

STRAP - tie, frame, right-hand side

1шт.

31

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

32

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

33

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

34

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

35

492-11038

LOCK WASHER,3/8"

4шт.

36

425-106

NUT,3/8"-16, Cl 5

4шт.

37

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

38

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

39

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

40

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

41

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

42

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

43

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

44

425-1512

JAM NUT,Jam, 3/4"-10, G5

- hex jam, 3/4 inch NF

2шт.
