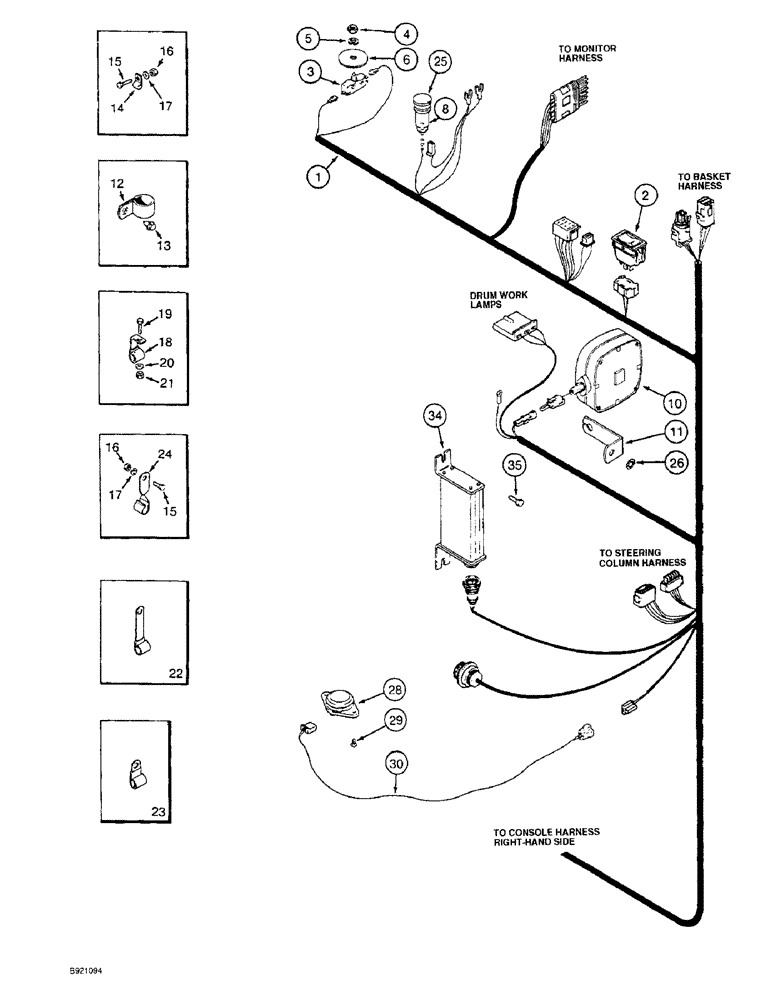

Запчасти Case IH 1800 (4-12) - CONSOLE HARNESS, LEFT-HAND (06) - ELECTRICAL SYSTEMS

1

1983634C6

HARNESS

- console, see pages 4-9 and 4-11 for continuation of harness

1шт.

2

245012C1

SWITCH

- rocker, basket lamps

1шт.

3

1983341C1

SWITCH

- parking brake warning lamp

1шт.

4

A39888

NUT

- hex, 3/8-32 inch

1шт.

5

495-51041

WASHER,3/8"

- flat, 13/32 x 47/64 x 1/16 inch

1шт.

6

166817C2

WASHER

- flat, 9.0 x 51.0 x 1.6 mm

1шт.

8

245576C1

LIGHTER, CIGARETTE

LIGHTER - cigar, 12 volt, includes element 378781R1, item 25

1шт.

10

REF

INSTRUCTION

LAMP ASSEMBLY - warning, parts list page 4-33

1шт.

11

1283289C1

ANGLE

BRACKET - warning lamp mounting

1шт.

12

515-25317

CLAMP,1 1/4", Insul, 1/2" Bolt

P-type, Console harness, on rear wall (Replaces clamp 299608C1) 1 1/4", Insul, 1/2" Bolt

2шт.

13

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - self-tapping, hex head, 1/4 NC x 1/2 inch

2шт.

14

A62209

CLAMP,5/16", Insul, 1/4" Bolt

- P-type, harness, on front wall

1шт.

15

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

16

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

17

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

18

370383R1

CLIP

CLAMP - harness, under platform

4шт.

19

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

20

492-11038

LOCK WASHER,3/8"

1шт.

21

425-106

NUT,3/8"-16, Cl 5

1шт.

22

362126R1

CLIP

CLAMP - harness, under platform front edge

2шт.

23

358986R1

CABLE CLIP

CLAMP - P-type, left-hand console harness

3шт.

24

363660R1

CLIP

CLAMP - harness, between instrument panel and console extension

1шт.

25

378781R1

LIGHTER, CIGARETTE

ELEMENT - pop up, lighter

1шт.

26

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

WASHER - internal-external tooth lock, 3/8 inch

2шт.

28

1983395C1

IGNITION SWITCH

SWITCH - seat

1шт.

29

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

- machine, pan Phillips, 1/4 NC x 1/2 inch

2шт.

30

1345209C1

HARNESS

- seat switch

1шт.

34

1983637C1

CASE

MODULE - engine R.P.M.

1шт.

35

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - self-tapping, hex washer head, 1/4 NC x 1/2 inch

2шт.
