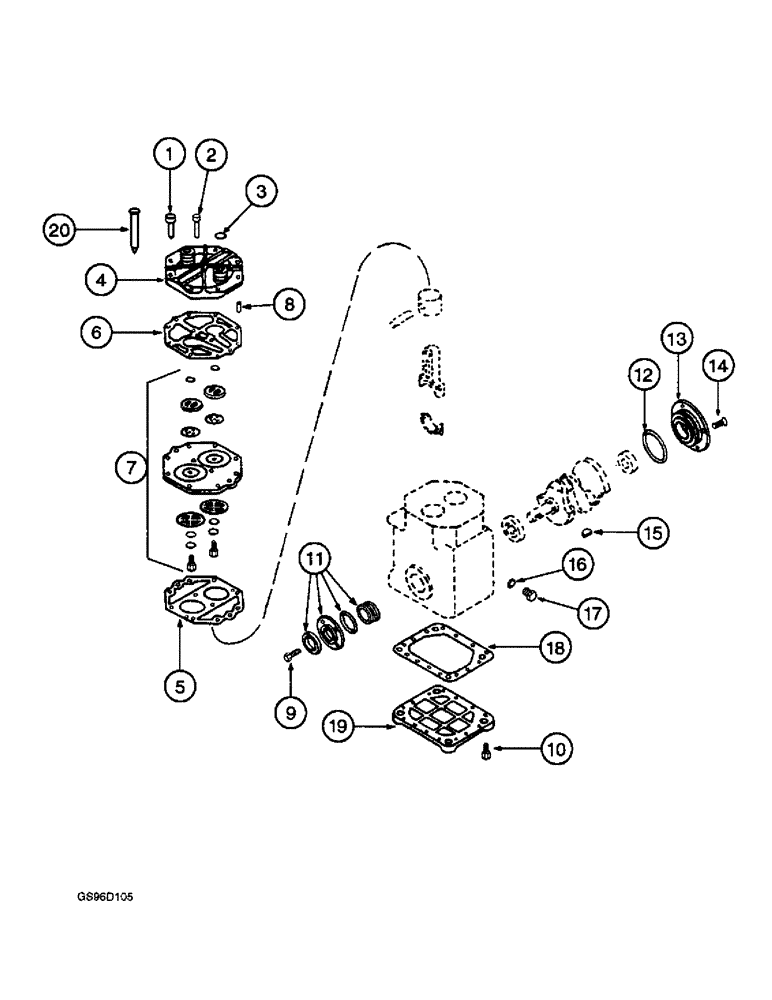

Запчасти Case IH 1400 (9D-12) - COMPRESSOR (10) - CAB & AIR CONDITIONING

118250C91

COMPRESSOR

COMPRESSOR ASSEMBLY - air conditioner

1шт.

1924006C2

REMAN-A/C COMPRESSOR

Reman For New PN 118250C91

1шт.

1924007C1

CORE-A/C COMPRESSOR

Return Number

1шт.

1

413-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

BOLT - hex, 5/16 NC x 1-3/8 inch (Replaces bolt 20641R1)

8шт.

2

380-2524

12 PT SCREW,Flg, 5/16" - 18 x 1 1/2"

SCREW - hex, 5/16 NC x 1-1/2 inch (Replaces screw 374805r1 )

2шт.

3

A42938

GASKET

GASKET - service valve (Replaces gaskets 431762C1 and 118469C1 )

2шт.

4

479011C91

KIT

KIT - cylinder head

1шт.

5

431761C1

CYLINDER HEAD GASKET

GASKET - valve plate

1шт.

6

431756C1

CYLINDER HEAD GASKET

GASKET - head

1шт.

7

394430C91

KIT

KIT - valve plate

1шт.

8

37-1212

DOWEL,1/8" x 3/4"

PIN - dowel, 1/8 x 3/4 inch, hardened (Replaces pin 21247r1 )

2шт.

9

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

SCREW - machine, No. 10 NC x 1/2 inch,Course threads

6шт.

10

463-12510

SCREW,Hex Hd, 1/4"-20 x 5/8"

BOLT - hex flange, 1/4 NC x 5/8 inch (Replaces bolt 21024R1)

14шт.

11

592263C91

SEAL KIT

KIT - shaft seal, front (Replaces kit 428606C91)

1шт.

12

431763C1

O-RING,0.07" Thk x 3.239" ID, -42, Cl 6, 90 Duro

SEAL - O-ring

1шт.

13

431757C1

HOUSING

HOUSING - rear bearing

1шт.

14

473-12510

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

SCREW - machine, flat head slotted, 1/4 NC x 5/8 inch (Replaces screw 120585)

4шт.

15

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

WOODRUFF KEY, (Replaces key 124546) #6, 5/32" x 5/8", HT

1шт.

16

431764C1

SEAL,8.484mm ID x 1.778mm Width

SEAL - O-ring oil plug

2шт.

17

86982693

PLUG

PLUG - hex, 3/8 inch NF

2шт.

18

431760C2

GASKET

GASKET - base

1шт.

19

431755C1

PLATE

SPARE PART PLATE - base

1шт.

20

118210C1

FILTER SCREEN

SCREEN - suction filter

1шт.
