Запчасти Case IH 1400 (9D-11A) - BLOWER (10) - CAB & AIR CONDITIONING

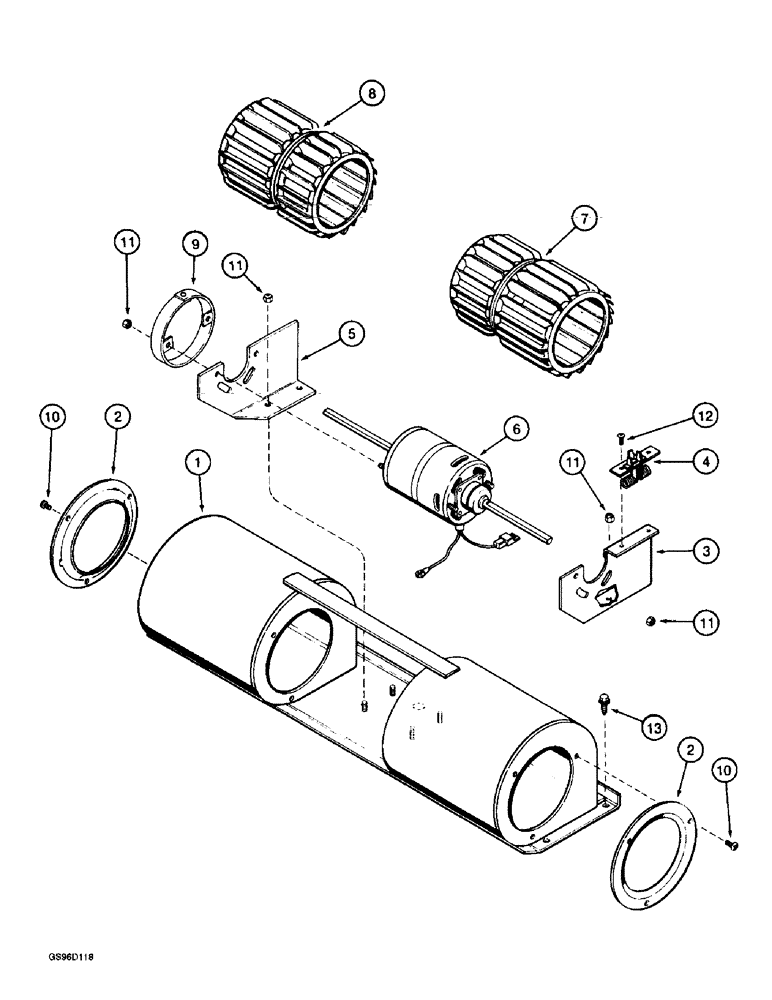

Схема запчастей Case IH 1400 - (9D-11A) - BLOWER (10) - CAB & AIR CONDITIONING
8
11
3
7
4
6
11
11
10
9
10
5
13
12
2
1
2
11

Артикул

Название

Примечание

Количество

1255878C92

BLOWER ASSY.

BLOWER ASSEMBLY - pressurizer (Replaces blower assembly 1255878C91 )

1шт.

1

117785C2

HOUSING ASSY.

HOUSING - blower

1шт.

2

1344175C1

RETAINER

- inlet

2шт.

3

1262098C1

SUPPORT ASSY.

SUPPORT - resistor

1шт.

4

1255876C1

RESISTOR

- blower

1шт.

264-2036

SELF-TAP SCREW,Slotted Pan Hd, #6 x 3/8"

SCREW - self-tapping, pan head slotted, No. 6 NC x 3/8 inch

2шт.

5

1344176C1

SUPPORT

BRACKET - motor mounting

1шт.

6

190333A1

MOTOR, ELECTRIC,12V

MOTOR - blower

1шт.

190333A1R

REMAN-ELECTRIC MOTOR,12V

1400 IH Cotton Harv.

1шт.

190333A1C

CORE-ELECTRIC MOTOR,12V

Return Number

1шт.

7

539077R2

FAN

- wheel, right-hand

1шт.

8

539018R2

FAN

- wheel, left-hand

1шт.

9

1344177C1

RETAINER

RING - motor mounting

1шт.

10

260-1456

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - self-tapping, pan Phillips, No. 10 NC x 3/8 inch

6шт.

11

66299C1

NUT

- hex Keps, No. 10-32

8шт.

12

261-2436

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/8"

SCREW - self-tapping, pan head Phillips, No. 6 NC x 3/8 inch

2шт.

13

280-1478

SELF-TAP SCREW,HWH, 1/4-14 x 1/2"

SCREW - self-tapping, 1/4 NC x 1/2 inch

7шт.

13

275-14716

SELF-TAP SCREW,Hex Hd, 1/4" x 1"

SCREW - hex, self-tapping, 1/4 NC x 1 inch

1шт.

83829C1

HARNESS

- blower motor

1шт.

Выбрано товаров: 19
