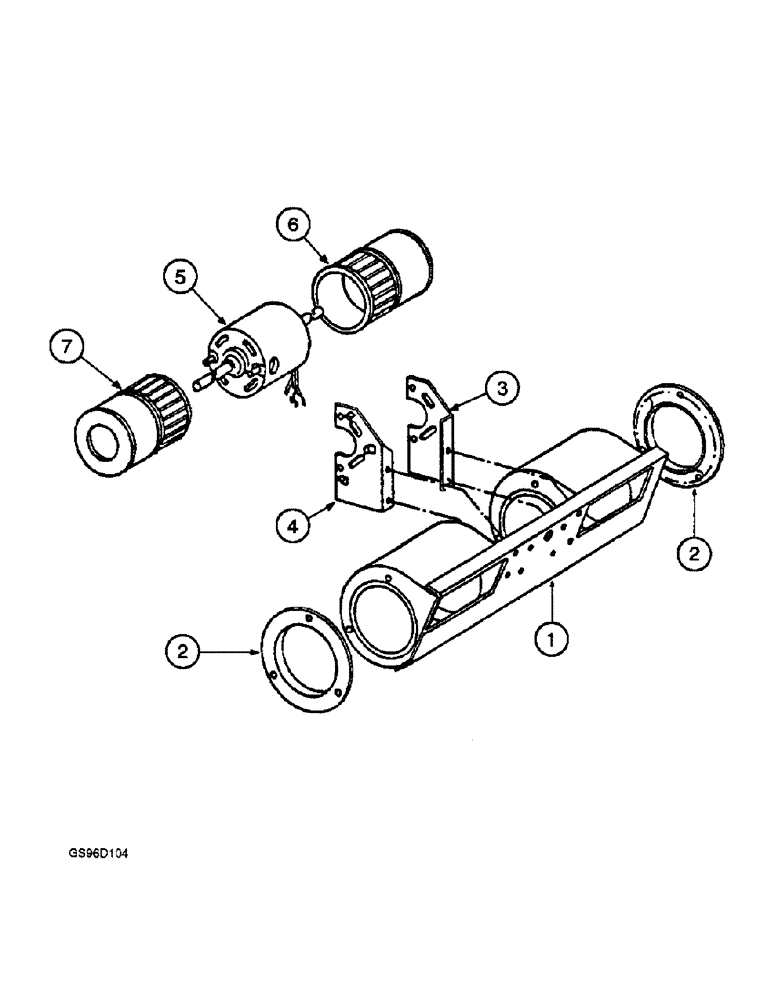

Запчасти Case IH 1400 (9D-10) - BLOWER (10) - CAB & AIR CONDITIONING

109246C94

BLOWER

ASSEMBLY - pressurizer, no longer available, order blower assembly 1255878C92, parts list page 9D-11B

1шт.

1

117785C2

HOUSING ASSY.

HOUSING - weldment

1шт.

2

1344175C1

RETAINER

- inlet (Replaces retainer 65010C1)

2шт.

190075

ELBOW,Phil Pan Hd, #6 x 5/16"

SCREW - self-tapping, No. 6 NC x 5/16 inch

6шт.

3

539017R1

SUPPORT

- motor

1шт.

4

539019R2

SUPPORT

BRACKET - blower housing

1шт.

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- hex, No. 8 NC, includes external lockwasher (Replaces nut 151297H1)

4шт.

5

1987399C2

MOTOR, ELECTRIC

MOTOR - DC blower (Replaces motor 117784C5)

1шт.

6

539018R2

FAN

- wheel, left-hand

1шт.

7

539077R2

FAN

- wheel, right-hand

1шт.
