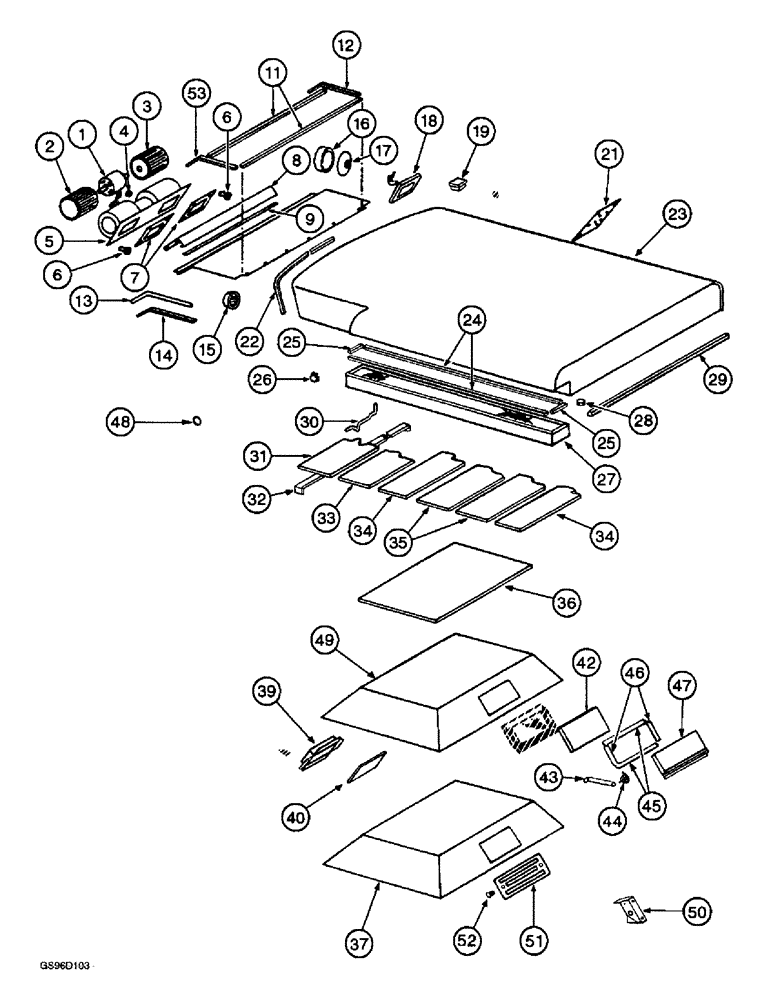

Запчасти Case IH 1400 (9D-08) - CAB, ROOF (10) - CAB & AIR CONDITIONING

1

REF

INSTRUCTION

MOTOR - blower, see page 9D-11 or 9D-11B

1шт.

2

539018R2

FAN

WHEEL - blower fan, left-hand

1шт.

3

539077R2

FAN

WHEEL - blower fan, right-hand

1шт.

4

248-1220

GROMMET,3/4" ID x 1 3/8" x .062", Diag Cut

- blower cable, if used (Replaces grommet 127979)

1шт.

4

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

- blower cable, if used

1шт.

5

REF

INSTRUCTION

BLOWER ASSEMBLY - operators cab, parts list page 9D-11 or 9D-11B

1шт.

6

175578C1

INSULATOR

- blower mounting vibration

1шт.

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

(Replaces screw 187797C1) Hex Flg, 1/4"-20 x 1", Serr

8шт.

7

117645C1

STRIP

- blower

2шт.

8

196534C1

SUPPORT

- blower mounting

1шт.

238-5144

O-RING,0.103" Thk x 2.487" ID, -144, Cl 5, 75 Duro

NUT - hex serrated flange, 1/4 inch NC (Replaces nut 938016R1)

4шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch (Replaces bolt 180016)

4шт.

495-81109

WASHER,.281" x 1" x .048"

- flat, 9/32 x 1 x 3/64 inch (Replaces washer 21871R1)

2шт.

9

REF

INSTRUCTION

STRIP - heater core, 34-1/2 inch (876 mm) long, cut from bulk seal 198581C1

1шт.

10

198569C2

DOOR

- pressurizer

1шт.

225-14210

NUT,#10-32

(Replaces nut 120614) #10-32

7шт.

463-6108

BOLT,Hex, #10 - 32 x 1/2"

- machine, No. 10 NF x 1/2 inch (Replaces screw 431942)

7шт.

493-81000

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, (3/16") (Replaces washer 179378) Ext-Int Tooth, #10

7шт.

143309C1

SELF-TAP SCREW,Cross Pan Hd, #10 - 16 x 1/2"

SCREW - self-tapping, No. 10 NF x 1/2 inch (Replaces screw 456107C1)

10шт.

11

REF

INSTRUCTION

STRIP - blower and core chamber front and rear, 34-1/2 inch (876 mm) long, cut from bulk seal 187874C1

2шт.

12

REF

INSTRUCTION

STRIP - blower and core chamber, right-hand side, 15-3/4 inch (400 mm) long, cut from bulk seal 187874C1

1шт.

13

REF

INSTRUCTION

STRIP - pressurizer cover end, 16-1/2 inch (419 mm) long, cut from bulk seal 198578C1

2шт.

14

REF

INSTRUCTION

STRIP - roof to pressurizer cover, 12-1/2 inch (317.5 mm) long, cut from bulk seal 198577C1

2шт.

15

173913C1

DEFLECTOR

- air

6шт.

16

175570C1

SEAL RETAINER

- night lamp, see page 4-5B

2шт.

17

196700C1

FLANGE

- night lamp mounting

2шт.

329-148

NUT,Jam, 1/2"-13, G8

- hex jam, 1/2 inch NC (Replaces nut 120238)

2шт.

18

REF

INSTRUCTION

LAMP - dome, see page 4-5B

1шт.

19

169850C2

CABLE CLIP

CLIP, CABLE - includes ring (Replaces clip 169850C1)

5шт.

21

187993C1

PANEL

- switch

1шт.

132718C1

FASTENER

- switch panel

4шт.

260-13424

SELF-TAP SCREW,Cross Pan Hd, #8 x 1 1/2"

SCREW - self-tapping, pan Phillips, No. 8 NC x 1-1/2 inch (Replaces screw 26664R1)

4шт.

22

REF

INSTRUCTION

STRIP - roof front pinch, 72 inch (1829 mm) long, cut from bulk seal 1327666C1

1шт.

23

NSS

NOT SOLD SEPARAT

ROOF - cab, order cab assembly 198212C94

1шт.

24

143481C2

AIR CLEANER

STRIP - air intake filter, long (Replaces strips 111560C2 and 143481C92)

2шт.

25

143481C2

AIR CLEANER

STRIP - air intake filter, end (Replaces strip 111561C2)

2шт.

26

432366

HOLE PLUG BUTTON,1 3/8"

PLUG - core and accessories wire hole

1шт.

26

432487

HOLE PLUG BUTTON,11/16"

PLUG - air conditioner lamp hole, 11/16 inch

1шт.

26

432539

HOLE PLUG BUTTON,7/16"

PLUG - thermostat and wiper switch, 7/16 inch (Replaces plug 188003)

1шт.

27

143481C92

CAB FILTER

FILTER - air intake (Replaces filter 109215C1)

1шт.

27

87543798

CAB FILTER

Charcoal cab filter

1шт.

28

3063674R1

GROMMET

- power wire, upper rear

1шт.

29

REF

INSTRUCTION

STRIP - cab roof to bottom, 220 inch (5588 mm) long, cut from bulk seal 182747C1

1шт.

30

117727C2

ROD

- air intake filter retaining

3шт.

86625057

NUT,#10-24, GB

NUT, LOCK, (Replaces nut 19910R1) #10-24, GB

3шт.

110084C1

WASHER - rubber

3шт.

31

198286C1

SHEET

- roof front

1шт.

32

198283C1

SUPPORT

- front insulation, no longer available

1шт.

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

(Replaces nut 938016R1) Flg, USR, 1/4"-20

2шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch (Replaces bolt 180016)

2шт.

33

198147C2

STRIP

- roof center

1шт.

34

198284C1

SHEET

- roof rear

2шт.

35

198285C1

SHEET

- roof rear, center

2шт.

36

187745C2

LINING

STRIP - headliner top (Replaces strip 187745C1)

1шт.

37

117662C2

LINING

INSULATOR - headliner

1шт.

39

187741C1

COVER

- access door

2шт.

132718C1

FASTENER

- access door cover

1шт.

260-13424

SELF-TAP SCREW,Cross Pan Hd, #8 x 1 1/2"

SCREW - self-tapping, pan Phillips, No. 8 NC x 1-1/2 inch (Replaces screw 26664R1)

1шт.

40

187742C1

INSULATOR

STRIP - access door cover

2шт.

42

183661C1

AIR CLEANER

FILTER - recirculating air

1шт.

43

198153C1

HANDLE

- recirculating air door

1шт.

196922C1

LOCK NUT

- hex, No. 10 inch NF

1шт.

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan Phillips, No. 10 NC x 1/2 inch (Replaces screw 159920)

1шт.

44

198223C1

SPRING

- recirculating air door

1шт.

45

REF

INSTRUCTION

STRIP - recirculating air door top and bottom, 13 inch (330 mm) long

2шт.

46

REF

INSTRUCTION

STRIP - recirculating air door end, 3-1/2 inch (89 mm) long

2шт.

47

198260C2

DOOR

- recirculating air

1шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

- machine, pan Phillips, 1/4 NC x 1/2 inch (Replaces screw 160515)

3шт.

493-81002

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER, LOCK, (Replaces washer 174916) Ext-Int Tooth, 1/4"

3шт.

48

432416

PLUG,5/16"

- button, 5/16 inch, wiper mounting holes

2шт.

48

192769

PLUG,3/4"

(button), Wiper shaft hole 3/4"

1шт.

49

183682C91

LINING

HEADLINER - insulated

1шт.

50

198248C2

BRACKET

- recirculating air door spring

1шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

- machine, pan Phillips, 1/4 NC x 1/2 inch (Replaces screw 160515)

2шт.

493-81002

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER, LOCK, (Replaces washer 174916) Ext-Int Tooth, 1/4"

2шт.

51

183662C1

GRILLE

GRILL - recirculating air filter

1шт.

52

97135C1

KNOB

- recirculating air filter grill (Replaces knob 111296C1)

1шт.

1276056C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1 1/4"

SCREW - machine, 1/4 NC x 1-1/4 inch (Replaces screw 160568)

2шт.

1250628C2

SPACER

- grill spacer (Replaces nut 111685C1)

2шт.

53

REF

INSTRUCTION

STRIP - blower and core chamber, left-hand side, 10-1/2 inch (267 mm) long, cut from bulk seal 187874C1

1шт.

198581C1

STRIP

SEAL - bulk, 50 foot (15240 mm) long

1шт.

187874C1

GASKET

SEAL - bulk, adhesive backed, 50 foot (15240 mm) long

1шт.

198578C1

SEAL

- bulk, 50 foot (15240 mm) long

1шт.

198577C1

STRIP

SEAL - bulk, 50 foot (15240 mm) long

1шт.

1327666C1

SEAL

- bulk, 50 foot (15240 mm) long (Replaces bulk seal 1965320C1)

1шт.

182747C1

DOOR SEAL

SEAL - bulk, 50 foot (15240 mm) long

1шт.
