Запчасти Case IH 1400 (9D-06) - CAB, FRAME (10) - CAB & AIR CONDITIONING

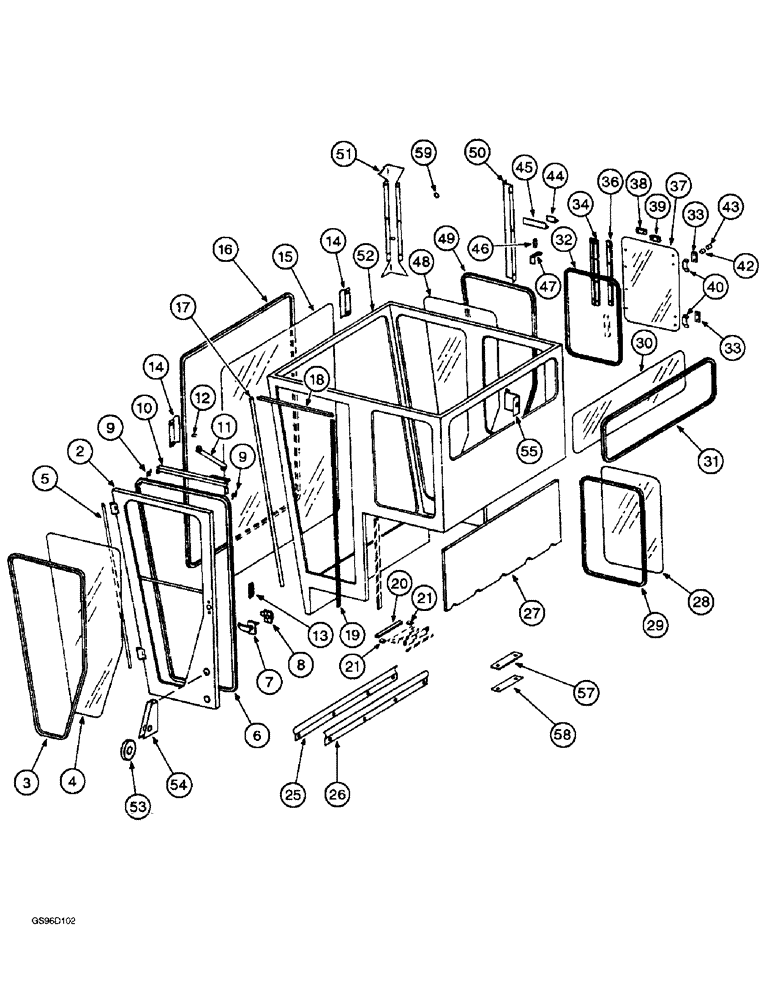

Схема запчастей Case IH 1400 - (9D-06) - CAB, FRAME (10) - CAB & AIR CONDITIONING
19
51
27
18
39
43
55
15
38
14
3
4
42
47
8
50
9
17
52
21
57
53
33
7
58
29
28
44
5
46
34
49
59
37
21
33
9
54
16
20
26
32
6
31
2
30
10
12
48
36
45
14
40
11
13
25

Артикул

Название

Примечание

Количество

198210C96

CAB ASSEMBLY - operators, with heater, no longer available

1шт.

198212C96

CAB

ASSEMBLY - operators, with heater and air conditioning

1шт.

231-5146

FLANGE NUT,3/8"-16

(Replaces nut 482256R1) Flg, USR, 3/8"-16

1шт.

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

- slotted truss head, 3/8 NC x 1-1/4 inch (Replaces screw 179464C1)

1шт.

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

- hex serrated flange, 3/8 NC x 1-1/4 inch (Replaces bolt 165420C1)

1шт.

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

(Replaces bolt 187620C1) Hex Flg, 3/8"-16 x 1 1/2", Serr

1шт.

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch (Replaces washers 120393 and 27309R1)

13шт.

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

13шт.

198521C92

DOOR ASSY.

DOOR ASSEMBLY - cab

1шт.

2

NSS

NOT SOLD SEPARAT

DOOR - order door assembly 198521C92

1шт.

3

REF

INSTRUCTION

STRIP - door glass, 130-1/2 inch (3315 mm) long, cut from bulk trim 198131C2

1шт.

4

198184C1

GLASS

- cab door

1шт.

5

REF

INSTRUCTION

STRIP - door front, 53-1/2 inch (1359 mm) long, cut from bulk seal 198522C1

1шт.

6

REF

INSTRUCTION

STRIP - door rear, top and bottom, 118 inch (2997 mm) long, cut from bulk seal 198522C1

1шт.

7

175566C1

HANDLE

- door, outside lock, no longer available, order handle 1329440C1, gasket 1329441C1 and handle 1329442C1

1шт.

7

1329440C1

HANDLE

- door outside lock

1шт.

1329441C1

GASKET

- handle

1шт.

1329442C1

HANDLE

- door

1шт.

489-1108

SCREW,Cross Oval Hd, #10"-32 x 1/2"

- machine, oval Phillips, No. 10 NF x 3/4 inch (Replaces screw 157070)

2шт.

8

178748C1

LATCH

- door, inside, no longer available, order latch 1329443C1

1шт.

8

1329443C1

LATCH

- door, inside

1шт.

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- machine, pan Phillips, No. 10 NF x 1/2 inch (Replaces screw 160046)

4шт.

138534

LOCK WASHER,Int Tooth, #10

WASHER - internal tooth lock, No. 10 (Replaces washer 121801)

4шт.

9

198844C1

SPRING

- cab door check

2шт.

276-34724

SELF-TAP SCREW,Hex Hd, 1/4" x 1 1/2"

SCREW - hex, 1/4 NC x 1-1/2 inch (Replaces screw 554859C1)

2шт.

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") (Replaces washer 120392) 1/4", SAE

2шт.

10

198839C1

STOP

CHECK - cab door

1шт.

11

198845C1

ARM

- cab door check

1шт.

12

100-3374

SNAP RING,#X74, .616" Dia, E-Type

Ring, Retaining, (replaces ring 378066R1) #X74, .616" Dia, E-Type

1шт.

13

392801R3

LATCH

CATCH - door (Replaces catch 392801R2)

1шт.

442-1258

SCREW,Cross Oval Hd, 1/4"-20 x 1/2"

- machine, oval Phillips, 1/4 NC x 1/2 inch (Replaces screw 157391)

2шт.

493-51026

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER - countersunk, external tooth lock, 1/4 inch (Replaces washer 138604)

2шт.

14

196742C2

SUPPORT

- windshield side (Replaces support 196742C1)

2шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

(Replaces bolt 174856C1) Hex Flg, 5/16"-18 x 1/2", Serr

4шт.

15

1957276C1

GLASS

- cab windshield (Replaces glass 198242C1)

1шт.

16

REF

INSTRUCTION

STRIP - windshield glass, 221 inch (5613 mm) long, cut from bulk trim 198131C2

1шт.

17

REF

INSTRUCTION

STRIP - door opening, front, 54-1/2 inch (1386 mm) long, cut from bulk trim 1330108C2

1шт.

18

REF

INSTRUCTION

STRIP - door opening, top, 26 inch (660 mm) long, cut from bulk trim 1330108C2

1шт.

19

REF

INSTRUCTION

STRIP - door opening, rear, 54 inch (1371.6 mm) long, cut from bulk trim 1330108C2

1шт.

20

REF

INSTRUCTION

STRIP - front drop cleanout door, long, 10-3/4 inch (273 mm) long, cut from bulk seal 198530C1

1шт.

21

REF

INSTRUCTION

STRIP - front drop cleanout door, end, 3/4 inch (19 mm) long, cut from bulk seal 1281436C1

1шт.

25

196742C2

SUPPORT

- windshield moulding outer retainer (Replaces support 198174C1)

1шт.

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Hex Flg, 5/16-18 x 3/4", Serr (Replaces bolt 202107C1)

5шт.

26

196742C1

SUPPORT

- windshield moulding, inner retainer (Replaces support 198173C1)

1шт.

27

198290C1

INSULATOR

INSULATION - rear acoustical

1шт.

28

198244C1

GLASS

- cab, left-hand rear

1шт.

29

REF

INSTRUCTION

STRIP - left-hand rear glass, 85 inch (2159 mm) long, cut from bulk trim 198131C2

1шт.

30

198247C1

GLASS

- cab rear

1шт.

31

REF

INSTRUCTION

STRIP - rear glass, 121 inch (3073 mm) long, cut from bulk trim 198131C2

1шт.

32

1301235C1

STRIP

- right-hand rear window

1шт.

33

183585C1

STRIP

- right-hand rear window

2шт.

1301231C91

WINDOW ASSY

WINDOW ASSEMBLY - right-hand rear

1шт.

34

1301233C2

HINGE

- right-hand rear window (Replaces hinge 1301233C1)

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, 3/8 NC x 1 inch (Replaces screw 163860C1)

1шт.

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- machine, pan Phillips, No. 10 NF x 1/2 inch (Replaces screw 160046)

4шт.

36

1301234C1

STRIP

- right-hand rear window

1шт.

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

(Replaces screw 159947) Cross Pan Hd, #10-24 x 3/4"

4шт.

196922C1

LOCK NUT

- hex, No. 10 inch NF

4шт.

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 3/64 inch (Replaces washer 120391)

4шт.

37

1301232C1

GLASS

- right-hand rear window

1шт.

38

183584C1

STRIP

- right-hand rear window

1шт.

39

183585C1

STRIP

- right-hand rear window

1шт.

40

170404C1

HANDLE

- right-hand rear window

2шт.

440-11028

SCREW,Cross Pan Hd, #10-24 x 1 3/4"

- machine, pan head, No. 10 NC x 1-3/4 inch (Replaces screw 159972)

2шт.

196922C1

LOCK NUT

- hex, No. 10 inch NF

6шт.

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 3/64 inch (Replaces washer 120391)

1шт.

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

(Replaces screw 159947) Cross Pan Hd, #10-24 x 3/4"

4шт.

225-14110

NUT,#10-24

(Replaces nut 120361) #10-24

1шт.

42

896274C1

BUSHING

- window retainer cushion

10шт.

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") (Replaces washer 120394) 3/8", SAE

2шт.

43

196926C1

END FITTING

GRIP - window lock bolt

4шт.

44

REF

INSTRUCTION

STRIP - right-hand rear window latch, outer, 1-1/2 inch (38 mm) long

1шт.

45

REF

INSTRUCTION

STRIP - right-hand rear window latch, inner, 3 inch (76 mm) long, cut from bulk seal 198522C1

1шт.

46

183615C1

SPRING

- right-hand rear window latch

1шт.

47

195611C1

SUPPORT

- right-hand rear window

1шт.

231-5344

FLANGE NUT,Flg, 1/4"-20

NUT, LOCK, (Replaces nut 188472C1) Flg, 1/4"-20

1шт.

340-12524

SCREW,Cross Pan Hd, 1/4"-20 x 1 1/2"

- pan head, cross recess, 1/4 NC x 1-1/2 inch (Replaces screw 160578)

1шт.

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") (Replaces washer 120392) 1/4", SAE

1шт.

48

198184C1

GLASS

- right-hand front

1шт.

49

REF

INSTRUCTION

STRIP - right-hand front glass, 127-1/2 inch (3238.5 mm) long, cut from bulk trim 198131C2

1шт.

50

198293C1

PANEL

- right-hand filler

1шт.

187-1737

SELF-TAP SCREW,Sltd Pan Hd, #10 x 3/8"

SCREW - self-tapping, pan head, No. 10 NF x 3/8 inch (Replaces screw 167156)

6шт.

51

198292C2

PANEL - hose cover, left-hand

1шт.

187-1737

SELF-TAP SCREW,Sltd Pan Hd, #10 x 3/8"

SCREW - self-tapping, pan head, No. 10 NF x 3/8 inch (Replaces screw 167156)

6шт.

52

NSS

NOT SOLD SEPARAT

BOTTOM - cab, order cab assemblies 198210C94 or 198212C94

1шт.

53

215912C1

WHEEL

- cab door

1шт.

22076R1

HEADED PIN,1/4" x 1 7/16"

PIN - headed, 1/4 x 1-7/16 inch

1шт.

432-616

COTTER PIN,3/32" x 1"

(Replaces pin 103374) 3/32" x 1"

1шт.

54

215913C1

SUPPORT

- cab door

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch (Replaces bolt 16897R1)

2шт.

425-106

NUT,3/8"-16, Cl 5

- hex, 5/16 inch NC (Replaces nut 120376)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

2шт.

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

- flat, 11/32 x 1 x 3/64 inch (Replaces washer 134238R1)

2шт.

55

222795C1

SUPPORT

- cab filler, right-hand side

1шт.

57

1301129C1

DOOR

- clean-out

1шт.

166667C1

THUMB SCREW,1/4" - 20 x 0.62"

- thumb

2шт.

1301128C2

SPRING NUT,U, 1/4" - 20 x 23.37mm, Gr 5

- thumb screw (Replaces nut 1301128C1)

2шт.

58

REF

INSTRUCTION

STRIP - clean-out door seal, 9-3/4 inch (247 mm) long, cut from bulk seal 1300025C1

1шт.

59

432539

HOLE PLUG BUTTON,7/16"

PLUG - button, 7/16 inch, heater valve (Replaces plug 188003)

1шт.

929460C1

FLUID

ADHESIVE - rear acoustical, 11 ounce cartridge, purchase localy

1шт.

198131C2

SEAL, GLASS

TRIM - bulk, 120 inch (3048 mm) long

1шт.

198522C1

STRIP

SEAL - bulk, rubber, 50 foot (15240 mm) long, sold by the foot

1шт.

1330108C2

SEAL ASSY.

TRIM - bulk, edge, 50 foot (15240 mm) roll

1шт.

1281436C1

SEAL

- bulk, 100 foot (30480 mm) roll (Replaces bulk seal 198530C1)

1шт.

195594C1

SEAL - bulk, no longer used

1шт.

1300025C1

GASKET

SEAL - bulk, 50 foot (15240 mm) long

1шт.

Выбрано товаров: 106
