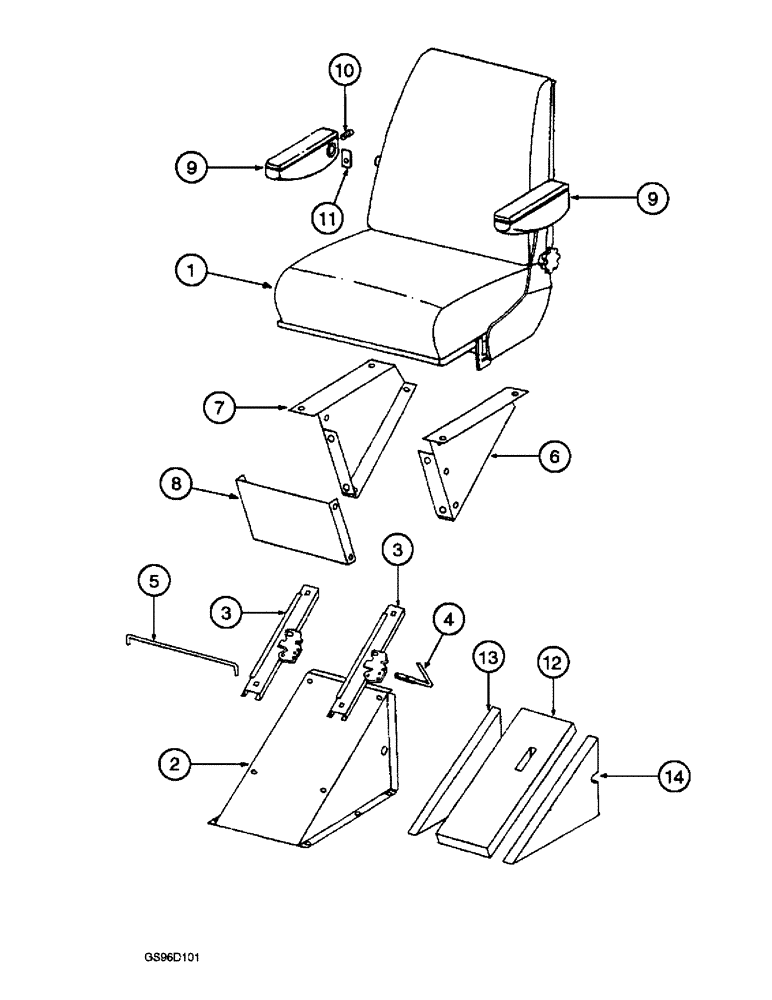

Запчасти Case IH 1400 (9D-04) - OPERATOR SEAT AND SUPPORTS (10) - CAB & AIR CONDITIONING

1

216039C1

SEAT

- operators, complete, no longer available, order seat 1990564C1

1шт.

1

1990564C1

SEAT

- operators, complete, includes hardware package (Replaces seat 216039C1)

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 180077)

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 120376)

4шт.

2

210155C1

SUPPORT

- operators seat, lower

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch (Replaces bolt 598802R1)

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 120376)

4шт.

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - self-tapping, hex head, 1/4 NC x 1/2 inch (Replaces screw 552897R1)

6шт.

3

192995C1

ADJUSTER

TRACK - seat adjuster

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 120376)

4шт.

4

98199C1

ROD

HANDLE - seat adjuster (Replaces handle 192997C1)

1шт.

463-11012

SCREW,Hex Hd, #10-24 x 3/4"

- machine, hex head, No. 10 NC x 3/4 inch (Replaces screw 274957)

2шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, (Replaces washer 120217) #10

2шт.

225-14110

NUT,#10-24

(Replaces nut 120361) #10-24

2шт.

5

209489C1

ROD

- seat adjusting

1шт.

6

91670C1

SUPPORT

- seat, left-hand (Replaces support 215470C1)

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch (Replaces bolt 598802R1)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 120376)

2шт.

7

91671C1

SUPPORT

- seat, right-hand (Replaces support 215478C1)

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch (Replaces bolt 598802R1)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 120376)

2шт.

8

215471C1

CHANNEL

- seat bracket

1шт.

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - self-tapping, hex head, 1/4 NC x 1/2 inch (Replaces screw 552897R1)

6шт.

9

139069C1

ARMREST

- left-hand, order armrest kit ZSA6224

1шт.

9

139070C1

ARMREST

- right-hand, order armrest kit ZSA6224

1шт.

10

61-3256

HEX SOC SCREW,1/4"-20 x 3/8"

SCREW, , Armrest stop (Replaces screw 139067C1) Hex Soc Hd, 1/4"-20 x 3/8"

1шт.

11

A45583

PLATE

- cover, left-hand (Replaces plate 139071C1)

1шт.

11

A45584

COVER

PLATE - cover, right-hand (Replaces plate 139072C1)

1шт.

340-11014

SCREW,Cross Pan Hd, #10-24 x 7/8"

- machine, No. 10 NC x 7/8 inch (Replaces screw 27094R1)

2шт.

12

1260449C1

INSULATOR

SUPPORT - seat bottom

1шт.

13

1260448C1

INSULATOR

SUPPORT - seat, right-hand side

1шт.

14

1260447C1

SUPPORT - seat, left-hand side

1шт.
