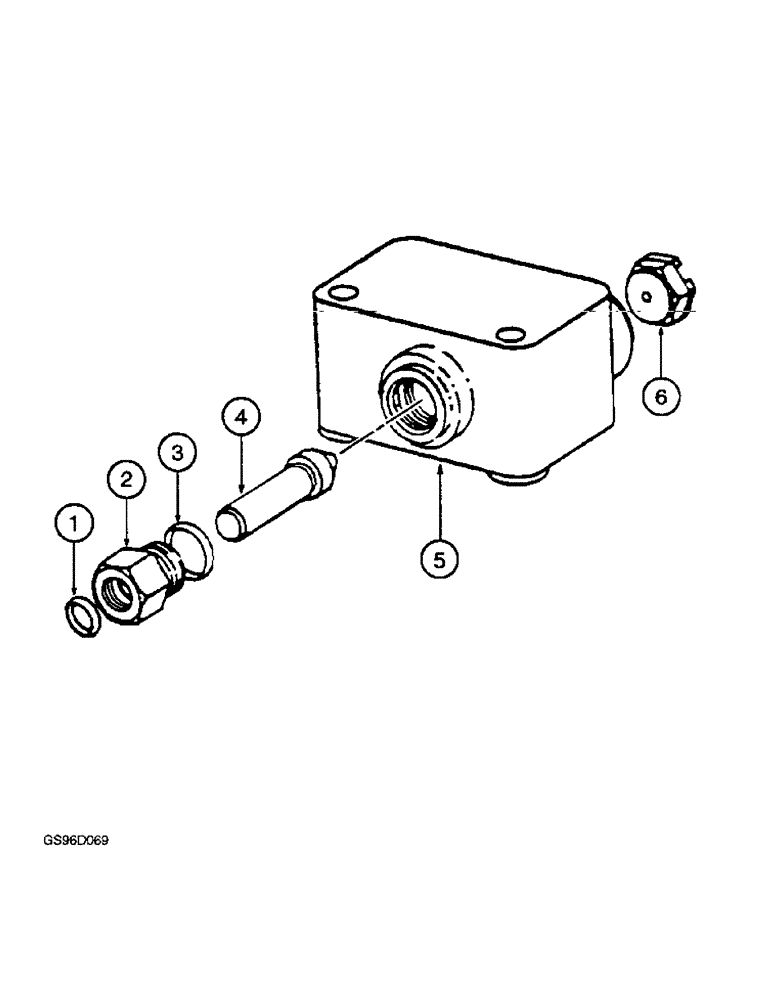

Запчасти Case IH 1400 (8-34) - HEIGHT CONTROL VALVE (07) - HYDRAULICS

202067C91

VALVE

ASSEMBLY - height control

1шт.

1

238-5110

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

- 3/8 x 9/16 inch (Replaces O-rings 310926R1 and 252738R1)

1шт.

2

937202R1

PLUG

- metering pin

1шт.

3

238-5112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

(Replaces O-ring 252739R1) -112, 70 Duro, .487" ID x .103" Thk

1шт.

4

202488C1

PIN

- metering

1шт.

5

NSS

NOT SOLD SEPARAT

BODY - valve, order valve assembly 202067C91

1шт.

6

937201R1

PLUG

PLATE - orifice

1шт.
