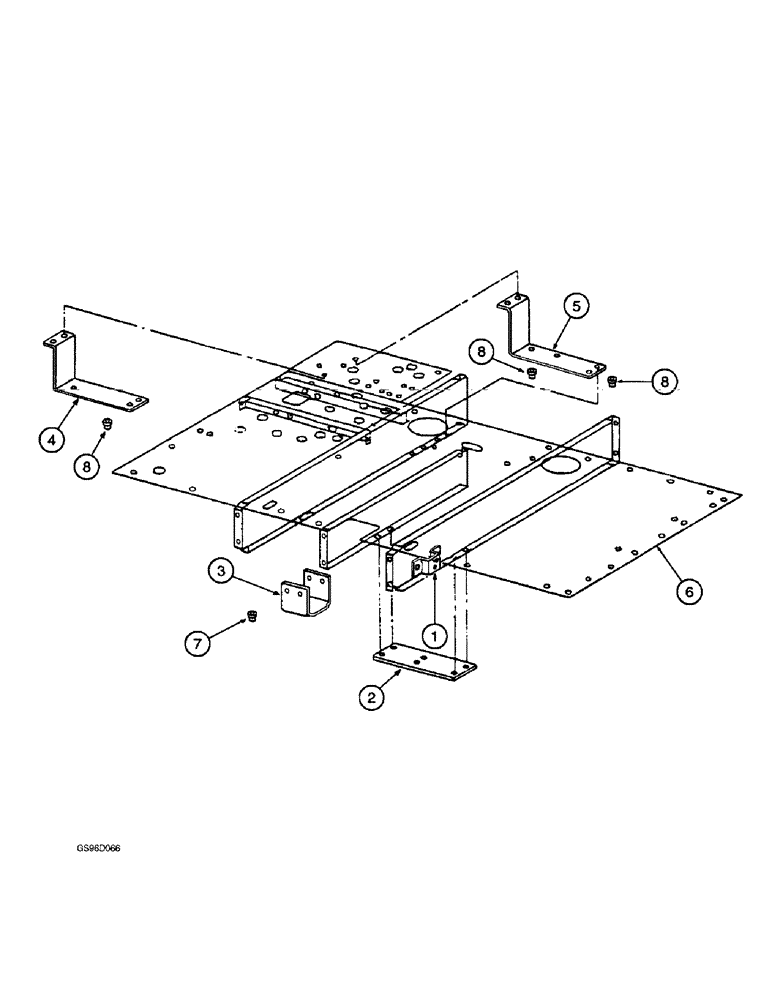

Запчасти Case IH 1400 (8-28) - VALVE MOUNTING (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
209898C1
SUPPORT
- pilot relief valve
1шт.
413-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
- hex, 5/16 NC x 3/4 inch (Replaces bolt 180077)
2шт.
425-105
NUT,5/16"-18, G5
- hex, 5/16 inch NC (Replaces nut 120376)
2шт.
2
222206C1
PLATE
- steering check valve mounting
1шт.
413-636
BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5
- hex, 3/8 NC x 2-1/4 inch (Replaces bolt 180132)
2шт.
413-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
(Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd
4шт.
425-106
NUT,3/8"-16, Cl 5
(Replaces nut 120377) 3/8"-16, G5
6шт.
492-11038
LOCK WASHER,3/8"
(Replaces washer 120382) 3/8"
6шт.
3
219887C2
CHANNEL - compactor and boll box valve support
1шт.
413-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
- hex, 5/16 NC x 3/4 inch (Replaces bolt 180077)
4шт.
425-105
NUT,5/16"-18, G5
- hex, 5/16 inch NC (Replaces nut 120376)
4шт.
4
219888C2
SUPPORT - basket and unit lift, front
1шт.
413-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
(Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd
4шт.
425-106
NUT,3/8"-16, Cl 5
(Replaces nut 120377) 3/8"-16, G5
4шт.
492-11038
LOCK WASHER,3/8"
(Replaces washer 120382) 3/8"
4шт.
5
219889C2
SUPPORT - basket and unit lift, rear
1шт.
413-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
(Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd
4шт.
425-106
NUT,3/8"-16, Cl 5
(Replaces nut 120377) 3/8"-16, G5
4шт.
492-11038
LOCK WASHER,3/8"
(Replaces washer 120382) 3/8"
4шт.
6
REF
INSTRUCTION
PLATFORM - operators, see pages 9E-5 - 9E-5D
1шт.
7
1151182C1
PAD
ISOMOUNT - operators platform
3шт.
8
D52276
ISOLATOR,10.16mm ID x 28.07mm OD x mm L
ISOMOUNT - operators platform (Replaces isomount 196504C1)
3шт.
WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk
- flat, 11/32 x 1 x 3/64 inch (Replaces washer 134238R1)
6шт.
Выбрано товаров: 25
