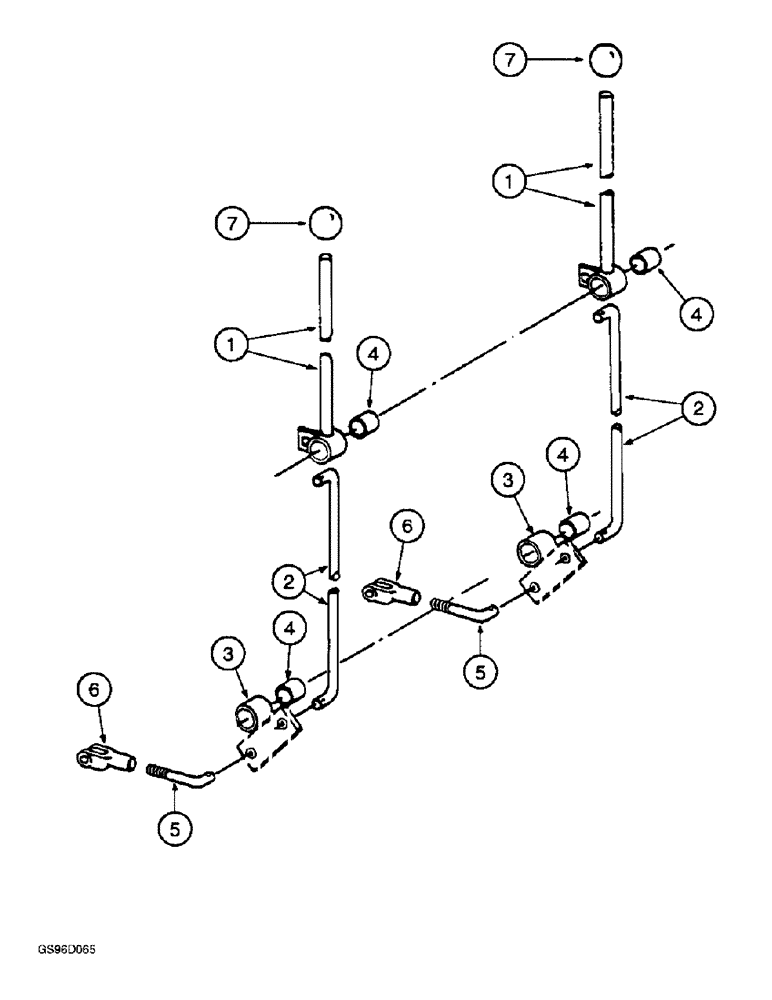

Запчасти Case IH 1400 (8-26) - DISTRIBUTOR AND BOLL BOX CONTROLS (07) - HYDRAULICS

1

210126C91

LEVER

- valve distributor and boll box

2шт.

2

214891C1

ROD - valve

2шт.

432-616

COTTER PIN,3/32" x 1"

(Replaces pin 121222) 3/32" x 1"

4шт.

3

214636C91

LEVER

- valve distributor and boll box

2шт.

4

568921R1

BUSHING,15.9mm ID x 19.02mm OD x 22.23mm L

- lever hub

4шт.

5

222296C1

ROD

- drum height valve

2шт.

432-616

COTTER PIN,3/32" x 1"

(Replaces pin 121224) 3/32" x 1"

2шт.

6

215895C1

YOKE

- drum height rod

2шт.

427-3103

CLEVIS PIN,4.78mm OD x 26.19mm L

PIN - clevis, 3/16 x 1-1/32 inch, hardened (Replaces pin 20286R1)

2шт.

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), (Replaces pin 112726) 1/16" x 1/2"

2шт.

7

198936C1

KNOB

- compactor and boll box

2шт.
