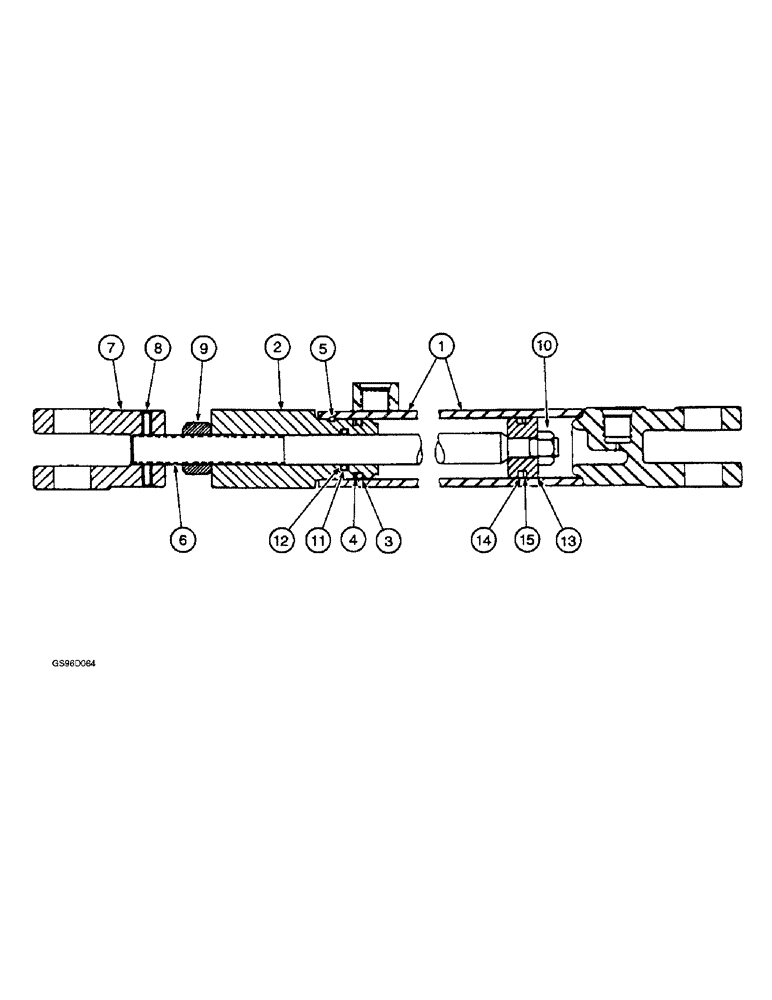

Запчасти Case IH 1400 (8-24) - BOLL BOX CYLINDER (07) - HYDRAULICS

381818R94

CYLINDER ASSY.

CYLINDER ASSEMBLY - boll box, 1 ID (25) x 3-11/16 (94 mm) stroke, 9/16-18 inch ports (Replaces cylinder assembly 381818R91)

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

149629C2

JACK HEAD

GLAND - cylinder

1шт.

3

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

Gland -117, 90 Duro, .799" ID x .103" Thk

1шт.

4

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

5

381830R1

ELECTRICAL WIRE

RING - retaining, gland

1шт.

381826R11

PISTON ROD

ROD ASSEMBLY - cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

ROD - piston, order rod assembly 381826R11

1шт.

7

NSS

NOT SOLD SEPARAT

CLEVIS - piston rod, order rod assembly 381826R11

1шт.

8

38-31020

PIN,3.96mm OD x 31.75mm L, Coiled

- clevis (Replaces pin 591225R1)

1шт.

9

232-4118

NUT,1/2"-13, GC

NUT, LOCK, , Clevis end 1/2"-13, GC

1шт.

10

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, , Piston end 5/16"-18, GC

1шт.

11

NSS

NOT SOLD SEPARAT

RING - quad, piston rod, order kit 386690R93

1шт.

12

NSS

NOT SOLD SEPARAT

RING - backup, piston rod, order kit 386690R93

1шт.

13

381828R4

JACK PISTON

PISTON - cylinder rod

1шт.

14

NSS

NOT SOLD SEPARAT

RING - quad, piston, order kit 386690R93

1шт.

15

NSS

NOT SOLD SEPARAT

RING - backup, piston, order kit 386690R93

2шт.

386690R93

SEAL KIT

KIT - cylinder service (Replaces kit 386690R91)

1шт.
