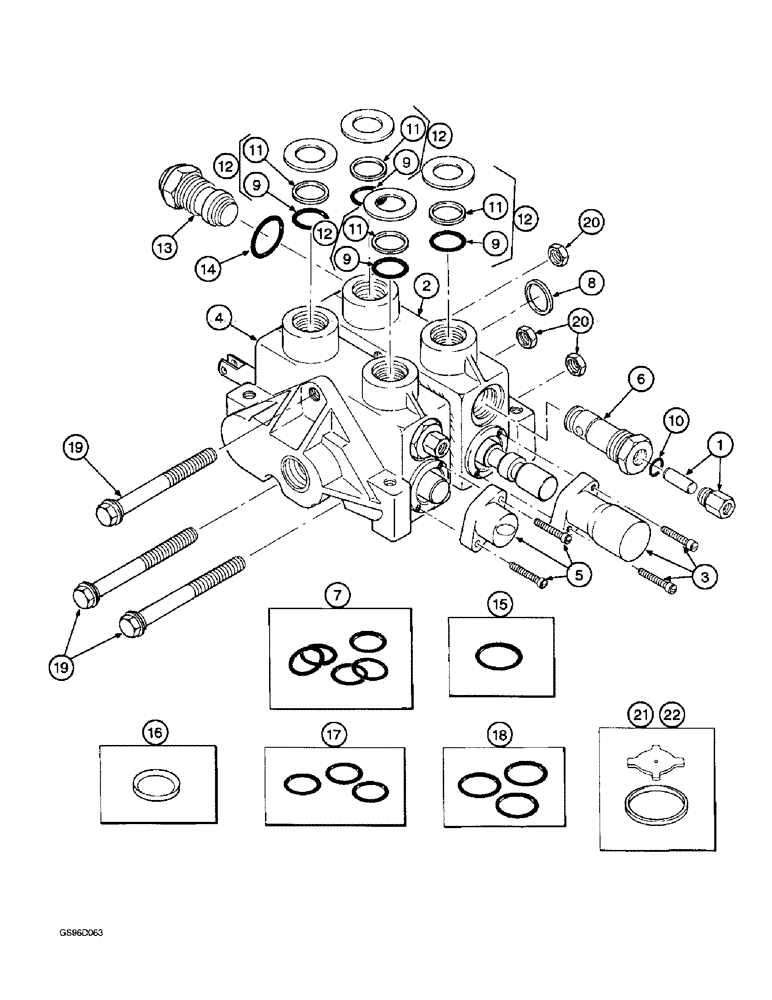

Запчасти Case IH 1400 (8-22) - UNIT LIFT AND BASKET VALVE (07) - HYDRAULICS

137955C92

VALVE

ASSEMBLY - unit lift and basket, no longer available as a unit, order components

1шт.

1

1260834C1

VALVE

- thermal relief

1шт.

2

145657C91

VALVE

- header control

1шт.

3

145658C91

VALVE

POSITIONER - detent

1шт.

4

145659C91

VALVE

- basket control

1шт.

5

145660C91

VALVE

POSITIONER - spring return

1шт.

6

139409A1

VALVE

- lock out with thermal relief (Replaces valve 145661C91)

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Replaces O-ring 364885R1)

5шт.

8

850124C1

WASHER

- back-up

1шт.

9

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

(Replaces O-ring 392385R1) -016, 90 Duro, .614" ID x .070" Thk

4шт.

10

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

(Replaces O-ring 392382R1) -015, 90 Duro, .551" ID x .070" Thk

1шт.

11

L30012

RING

WASHER - back-up (Replaces washer 149935C1)

4шт.

12

145667C1

KIT

- spool seal

4шт.

13

145663C91

VALVE

- relief

1шт.

14

238-6023

O-RING,0.07" Thk x 1.051" ID, -23, Cl 6, 90 Duro

(Replaces O-ring 343900R1) -023, 90 Duro, 1.051" ID x .070" Thk

1шт.

15

238-6022

O-RING,0.07" Thk x 0.989" ID, -22, Cl 6, 90 Duro

(Replaces O-ring 25897R1) -022, 90 Duro, .989" ID x .070" Thk

1шт.

16

G34774

OIL SEAL

WASHER - back-up (Replaces washer 850114C1)

1шт.

17

238-5019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

-019, 70 Duro, .801" ID x .070" Thk (Replaces O-ring 364840R1)

3шт.

18

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

-021, 70 Duro, .926" ID x .070" Thk (Replaces O-ring 376769R1)

3шт.

19

145664C1

BOLT

- hex, 3/8 NF x 6 inch

3шт.

20

232-4616

LOCK NUT,3/8"-24, GC

NUT, LOCK, (Replaces nut 9413243) 3/8"-24, GC

3шт.

21

145672C1

PLATE

- orifice, 1/8 inch diameter

1шт.

22

145673C1

SLEEVE

- orifice stop

1шт.
