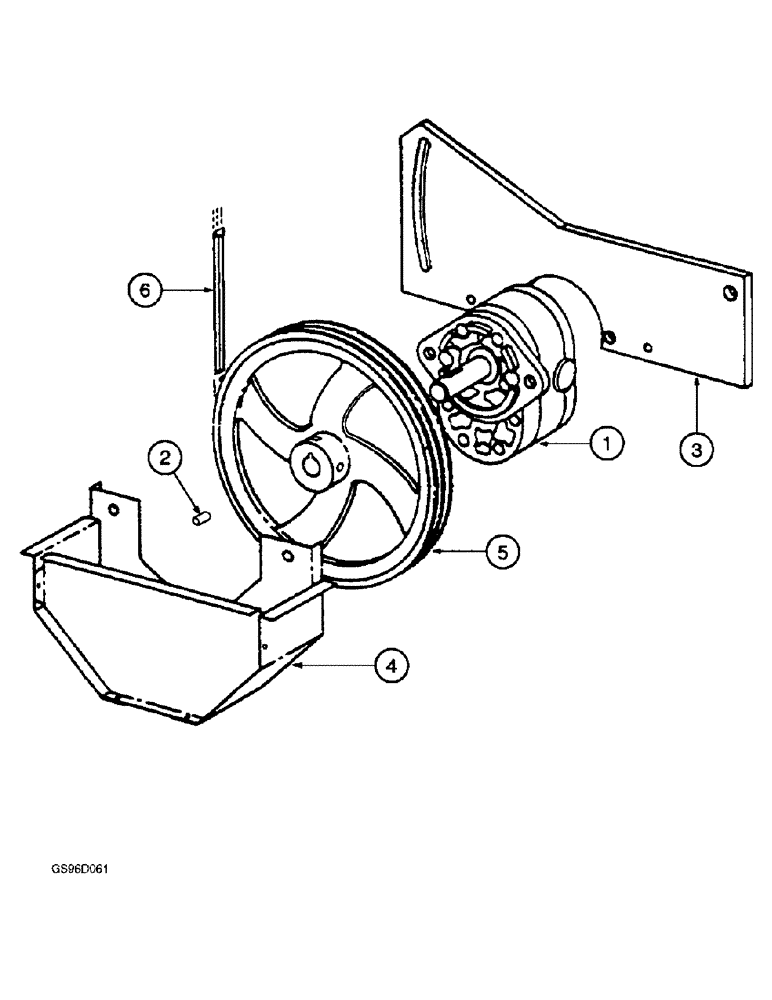

Запчасти Case IH 1400 (8-18) - HYDRAULIC PUMP AND MOUNTING (07) - HYDRAULICS

1

1272646C1

PUMP - hydraulic gear (Replaces pump 128130C91)

1шт.

60-216

FITTING

- hose

1шт.

2

79179C1

KEY

- pump pulley

1шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch (Replaces bolt 180126)

2шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

2шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

2шт.

3

1260486C1

SUPPORT

- pump (Replaces support 222127C1)

1шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch (Replaces bolt 180175)

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 103323) 1/2"

1шт.

495-81161

WASHER,17/32" x 1 1/2" x .060"

- flat, 17/32 x 1-1/2 x 3/64 inch (Replaces washer 21740R1)

1шт.

4

222128C2

SHIELD

- pulley (Replaces shield 222128C1)

1шт.

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

(Replaces bolt 180116) Hex, 3/8"-16 x 1/2", G5, Full Thd

2шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

2шт.

5

131426C1

PULLEY

- pump drive

1шт.

102586

SCREW - set, 5/16 NC x 1 inch

2шт.

NLS

NO LONGER SERVICED

- hex jam, 5/16 inch NC

2шт.

6

1265653C1

V-BELT,0.38" W, 2 Ribs

Hydraulic Control, Set of Two, Replaces Belt 131431C1 0.38" W, 2 Ribs

1шт.

133606C1

KIT

- pump service

1шт.
