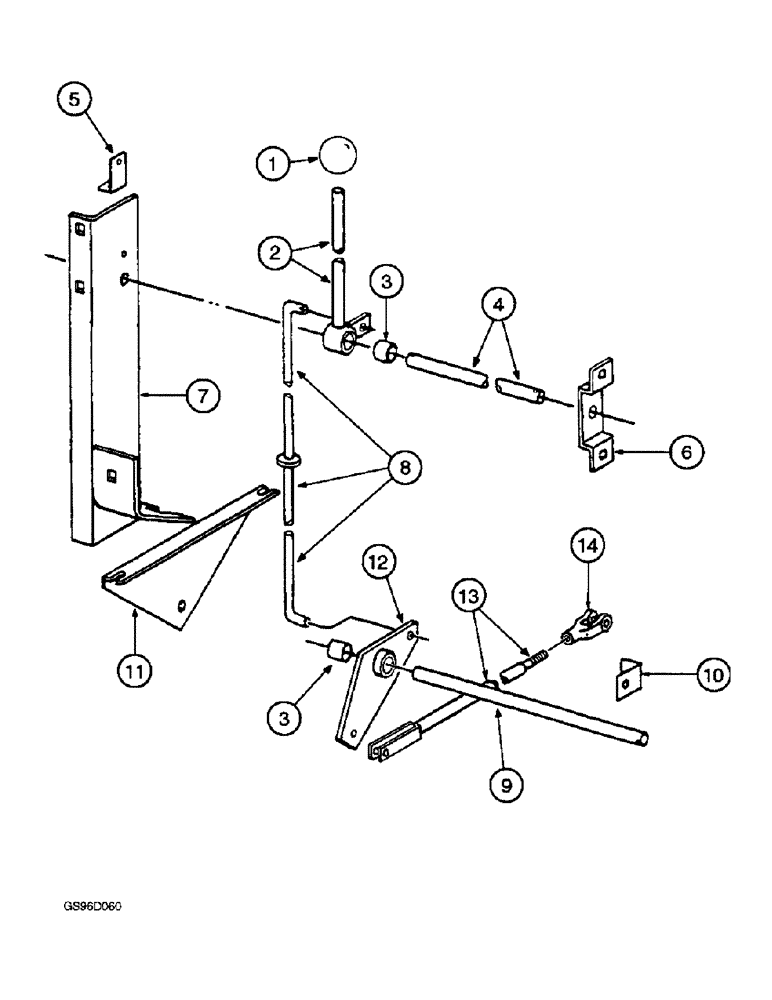

Запчасти Case IH 1400 (8-16) - UNIT LIFT CONTROLS (07) - HYDRAULICS

1

198956C1

KNOB

- drum hydraulic valve lever unit lift

1шт.

2

220914C91

LEVER

- valve

1шт.

3

568921R1

BUSHING,15.9mm ID x 19.02mm OD x 22.23mm L

- lever hub

1шт.

4

210186C1

ROD

- pivot controls

1шт.

5

165900C1

ANGLE

CLIP - shaft retainer

1шт.

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch (Replaces bolt 180073)

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 120376)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

(Replaces pin 187988) 3/16" x 1 1/4"

1шт.

6

210187C1

SUPPORT

- control shaft pivot

1шт.

111-229

CARRIAGE BOLT,Short NK, 5/16"-18 x 1/2", G2

BOLT - carriage, 5/16 NC x 1/2 inch, grade 2 (Replaces bolt 18673R1)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 120376)

2шт.

7

215869C1

SUPPORT

- cable anchor

1шт.

111-229

CARRIAGE BOLT,Short NK, 5/16"-18 x 1/2", G2

BOLT - carriage, 5/16 NC x 1/2 inch, grade 2 (Replaces bolt 18673R1)

3шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

3шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 120376)

3шт.

8

219908C1

BAR

ROD - upper (Replaces rod 220916C1)

1шт.

432-616

COTTER PIN,3/32" x 1"

(Replaces pin 121222) 3/32" x 1"

2шт.

9

214616C1

ROD

- control rockshaft pivot

1шт.

10

165900C1

ANGLE

CLIP - pivot shaft

1шт.

432-816

COTTER PIN,1/8" x 1"

(Replaces pin 137185) 1/8" x 1"

1шт.

432-1216

COTTER PIN,3/16" x 1"

(Replaces pin 18481R1) 3/16" x 1"

1шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

(Replaces washer 131016) 21/32" x 1 5/16" x .150", HDN

2шт.

11

214618C1

SUPPORT

- rockshaft

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 180077)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 120376)

2шт.

12

220669C91

LEVER

- valve rockshaft, includes bushing

1шт.

13

217902C1

ROD ASSY.

ROD - drum height valve

1шт.

432-616

COTTER PIN,3/32" x 1"

(Replaces pin 121244) 3/32" x 1"

4шт.

14

213-125

ADJUSTABLE CLEVIS,5/16" - 32

(Replaces clevis 104037) 5/16"-24

1шт.

427-5118

CLEVIS PIN,5/16" x 1 3/16"

PIN - clevis, 5/16 x 1-3/16 inch (Replaces pin 23840R1)

1шт.

432-616

COTTER PIN,3/32" x 1"

(Replaces pin 121222) 3/32" x 1"

1шт.

23268R1

PIN - clevis, 1/4 x 1-1/4 inch

1шт.

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), (Replaces pin 112726) 1/16" x 1/2"

1шт.
