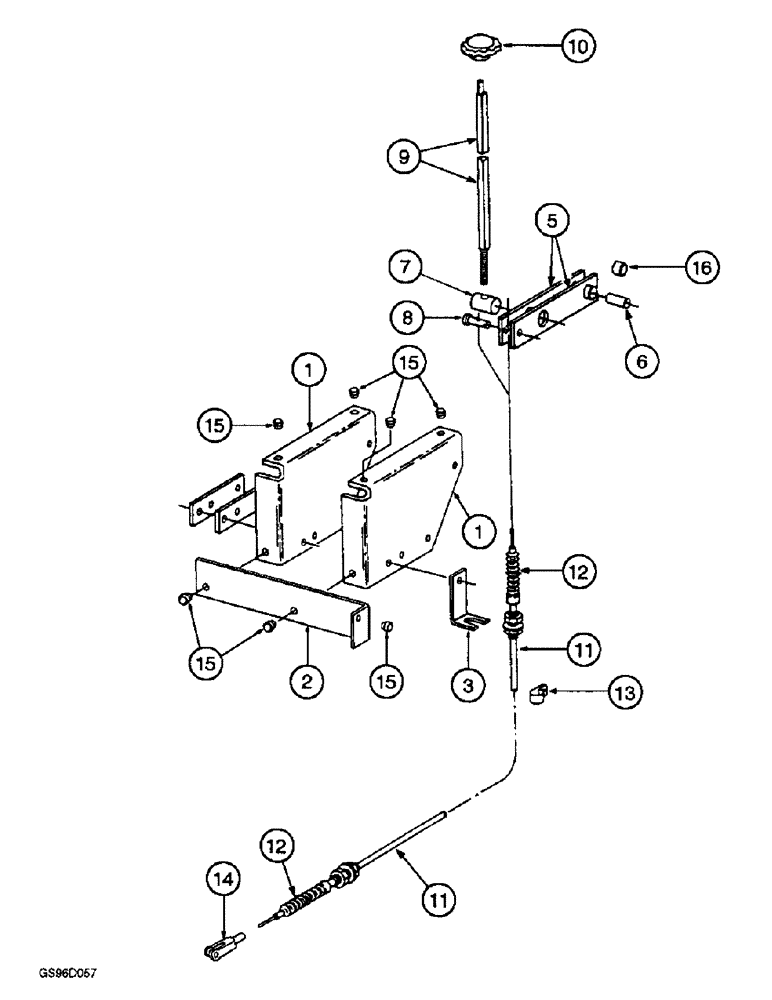

Запчасти Case IH 1400 (8-10) - HEIGHT CONTROL MOUNTING (07) - HYDRAULICS

1

222199C1

SUPPORT

- AHC valve

2шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch (Replaces bolt 180079)

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 120376)

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

4шт.

2

222200C2

SUPPORT

- valve bracket front

1шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

(Replaces bolt 180087) Hex, 5/16"-18 x 2", G5

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 120376)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

2шт.

3

202450C1

CLIP

- control cable

4шт.

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch (Replaces bolt 180085)

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 120376)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

2шт.

4

203835C1

LARGE PLATE

SPACER - valve

4шт.

5

202053C2

ROCKSHAFT

- control valve

4шт.

495-81113

WASHER,0.34" ID x 0.75" OD x 0.18" Thk

- flat, 11/32 x 3/4 x 3/16 inch (Replaces washer 22859R1)

2шт.

6

202059C1

SPACER

- long

4шт.

413-576

BOLT,Hex, 5/16" - 18 x 4-3/4", Gr 5

- hex, 5/16 NC x 4-3/4 inch (Replaces bolt 272401)

2шт.

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch (Replaces washer 619855R1)

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 120376)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

2шт.

7

202368C1

ROD

- trunnion control valve

4шт.

8

202371C1

PIN

- cable pivot

4шт.

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") (Replaces washer 120394) 3/8", SAE

4шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), (Replaces pin 117923) 1/8" x 3/4"

4шт.

9

222198C1

ROD

- control valve

4шт.

10

672684R1

KNOB

- control valve

4шт.

38-1812

LOCK PIN,1/8" x 3/4", Slotted

Pin, (replaces pin 18607R1) 1/8" x 3/4", Slotted

4шт.

11

1329387C1

CABLE

- height control, 110 inch (2794 mm) long, two used with two row, three used with four row (Replaces cable 222456C1)

1шт.

11

1329386C1

CABLE

- height control, 156 inch (3962 mm) long, used with four row only (Replaces cable 222312C91)

1шт.

12

204053C1

BOOT

- cable end, four used with two row, eight used with four row

1шт.

13

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

4 used with 2 row, 8 used with 4 (Replaces clamp 299404C1) 3/8", Insul, 3/8" Bolt

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

four used with two row, eight used with four row (Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

231-5146

FLANGE NUT,3/8"-16

Four used with two row, eight used with four row (Replaces nut 482256R1) Flg, USR, 3/8"-16

1шт.

14

213-113

ADJUSTABLE CLEVIS,#10-32

CLEVIS - adjustable, No. 10 NF, two used with two row, four used with four row (Replaces clevis 186956)

1шт.

225-14210

NUT,#10-32

6 used with two row, 12 used with four row (Replaces nut 120614) #10-32

1шт.

427-3058

CLEVIS PIN,3/16" x .580"

PIN, CLEVIS, , Hardened, 2 used with 2 row, 4 used with 4 (Replaces pin 138082) 3/16" x .580"

1шт.

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), , 2 used with two row, 4 used with four row (Replaces pin 112726) 1/16" x 1/2"

1шт.

15

1151182C1

PAD

ISOMOUNT - valve support

7шт.

495-81038

WASHER,25/32" x 1 1/4" x .075"

- flat, 25/32 x 1-1/4 x 1/16 inch (Replaces washer 21758R1)

4шт.

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

- flat, 11/32 x 1 x 3/64 inch (Replaces washer 134238R1)

7шт.

16

88594H

SPACER

- pivot

1шт.
