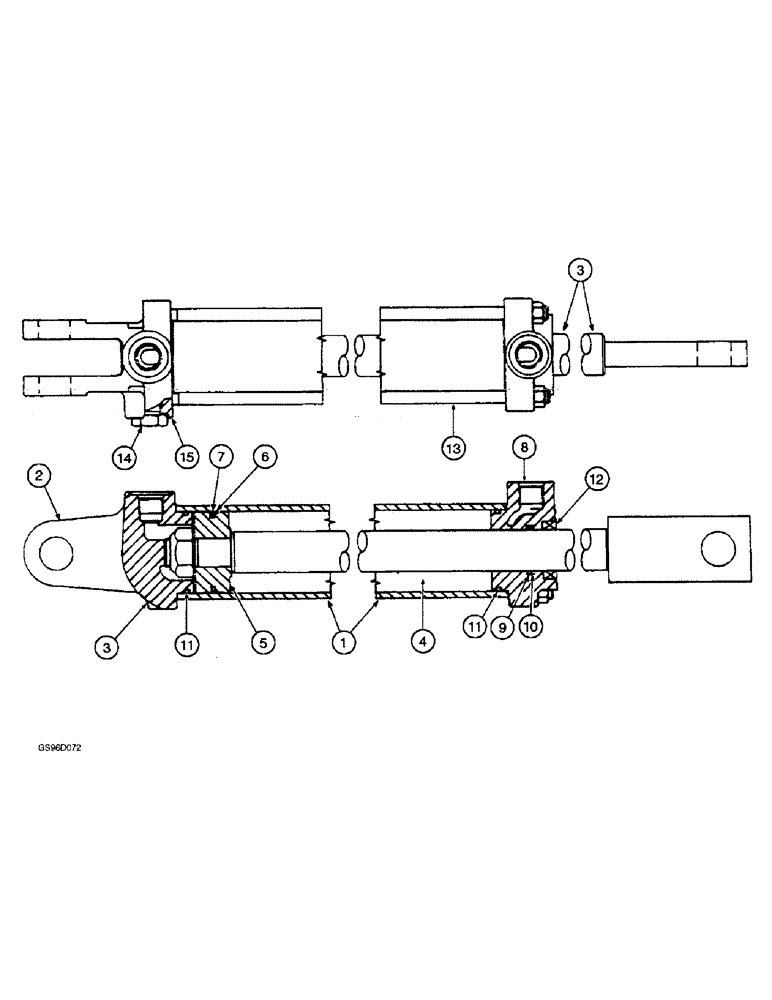

Запчасти Case IH 1400 (8-07A) - HYDRAULIC CYLINDER, HYDRAULIC DISTRIBUTOR (07) - HYDRAULICS

145499C93

CYLINDER

ASSEMBLY - hydraulic, 2-1/2 (51) ID x 18-7/8 (480 mm) stroke, no longer available, order cylinder assembly 1272487C91, parts list page 8-7D

1шт.

1

145511C1

SLEEVE

- hydraulic cylinder

1шт.

2

145218C1

HEAD

- cylinder rear, no longer available, order head 1272766C1, see page 8-7D

1шт.

3

145513C1

ROD

- cylinder piston

1шт.

4

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, (Replaces nut 20268R1) 7/8"-14, GC

1шт.

5

145221C3

PISTON

- hydraulic cylinder (Replaces piston 145221C2)

1шт.

6

238-5137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

Cylinder piston (Replaces 379961R1) -137, 90 Duro, 2.05" ID x .103" Thk

2шт.

7

79974C2

SEAL KIT

WASHER - cylinder piston O-ring back-up (Replaces washer 1252019C1)

1шт.

8

145220C1

HEAD

- cylinder front, used with cylinder assembly 145499C92, no longer available, order head 1260997C91 below

1шт.

8

1260997C91

HEAD

- cylinder front, used with cylinder assembly 145499C93

1шт.

9

238-6218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 6, 90 Duro

Cylinder piston rod, used with cylinder assembly 145499C92 (Replaces O-ring 386422R1) -218, 90 Duro, 1.234" ID x .139" Thk

1шт.

9

119188C1

SEAL,32.03mm ID x 37.84mm OD x 4.04mm Thk

- cylinder piston rod, used with cylinder assembly 145499C93

1шт.

10

546279R1

WASHER

- piston rod O-ring back-up, used with cylinder assembly 145499C93

1шт.

11

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

Cylinder front head (Replaces O-ring 343923R1) -228, 90 Duro, 2.234" ID x .139" Thk

1шт.

12

546283R1

WIPER SEAL

- cylinder piston rod wiper

1шт.

13

145516C1

BOLT,7/16" - 14 x 599mm

- cylinder tie

4шт.

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC (Replaces nut 271500)

4шт.

14

214389

PLUG,3/4" - 16 ORB

Cylinder sleeve (Replaces plug 9410359) Hex Hd, 3/4"-16 ORB

1шт.

145572C1

KIT

- hydraulic cylinder O-ring and seal, used with cylinder assembly 145499C92

1шт.

79979C3

SEAL KIT

KIT - hydraulic cylinder O-ring and seal, used with cylinder assembly 145499C93 (Replaces kit 79979C1)

1шт.

15

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
