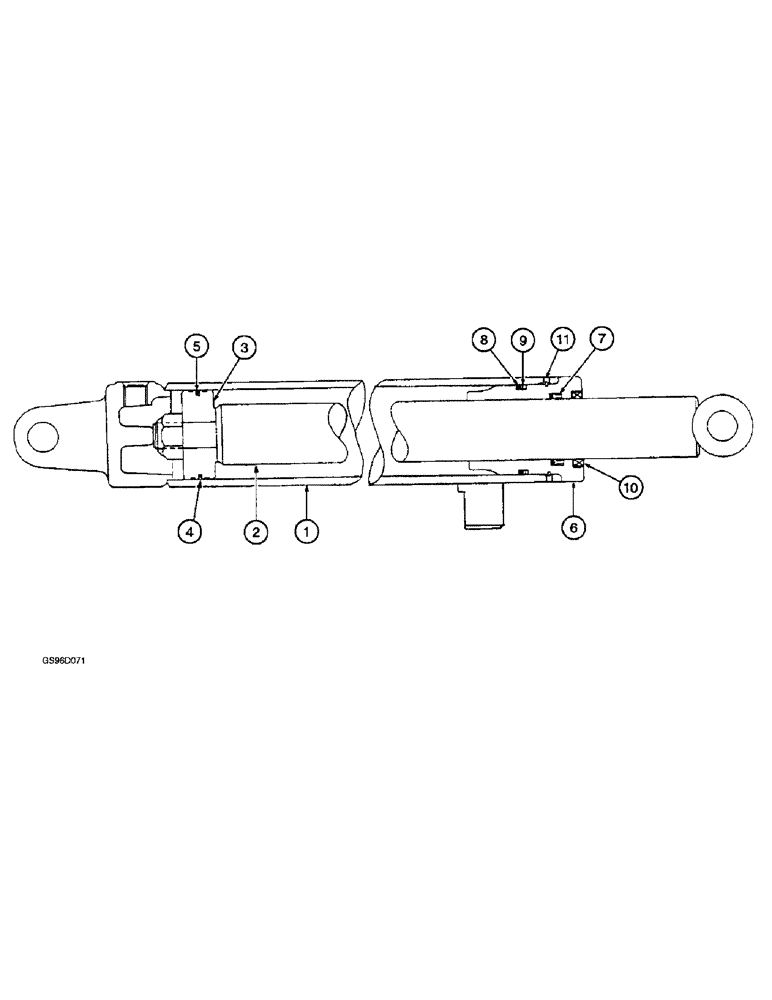

Запчасти Case IH 1400 (8-05A) - HYDRAULIC CYLINDER, BASKET LIFT (07) - HYDRAULICS

145288C91

CYLINDER

ASSEMBLY - hydraulic, 3 (76) ID x 59-1/2 inch (1511 mm) stroke

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - hydraulic cylinder, order cylinder assembly 145288C91

1шт.

2

1252153C1

ROD

- hydraulic cylinder piston

1шт.

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, (Replaces nut 20268R1) 7/8"-14, GC

1шт.

3

145225C2

PISTON

- cylinder (Replaces piston 145225C1)

1шт.

1252164C1

KIT

- cylinder service, no longer available, order components

1шт.

4

238-5145

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

Cylinder piston (Replaces 383017R1) -145, 90 Duro, 2.55" ID x .103" Thk

1шт.

5

387373R1

RING

WASHER - cylinder piston O-ring back-up (Replaces washer 1252020C1)

1шт.

6

529847R1

HEAD

- cylinder front

1шт.

7

119205C1

SEAL

- cylinder piston rod

1шт.

8

238-6334

O-RING,0.21" Thk x 2.6" ID, -334, Cl 6, 90 Duro

- cylinder front head, 2-5/8 ID x 3/16 inch wide (Replaces O-ring 381871R1)

1шт.

9

387370R1

BACK-UP RING

WASHER - front head O-ring back-up

1шт.

10

403844R1

WIPER SEAL,50.7mm ID x 63.65mm OD x 7.92mm Thk

WIPER - cylinder piston rod felt

1шт.

11

381873R1

RETAINER

RING - retaining, cylinder front head, 9-1/4 inch (235 mm) long, cut from bulk stock 140600C1

1шт.

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

140600C1

RETAINING WIRE

WIRE - retaining, 12-13/16 inch (325 mm) long

1шт.
