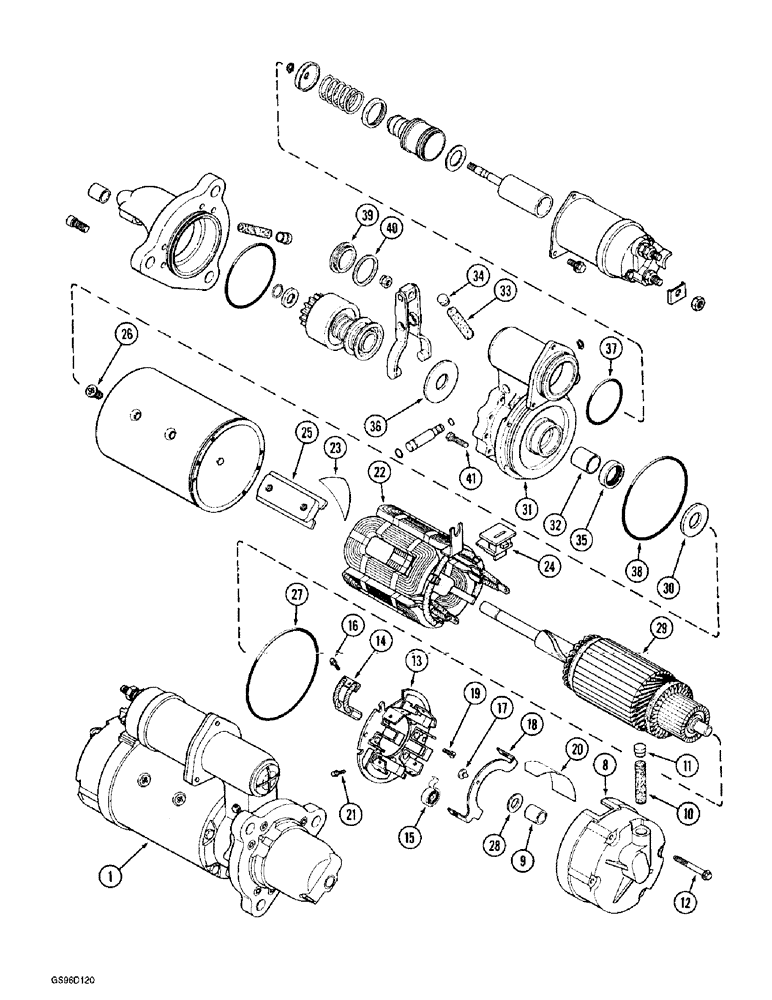

Запчасти Case IH 1400 (4-24) - STARTER ASSEMBLY, DELCO REMY, HEAVY DUTY SEALED (06) - ELECTRICAL SYSTEMS

1993891

STARTING MOTOR

STARTER ASSEMBLY - engine (Replaces starter assemblies 1990321 and 1993791)

1шт.

87297334

REMAN-STARTER

Remanufactured STARTER - NA Only

1шт.

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

- hex, 3/8 NC x 4-1/2 inch

3шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

492-11038

LOCK WASHER,3/8"

3шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

225-14210

NUT,#10-32

1шт.

8

10468709

HOUSING

FRAME ASSEMBLY - commutator end (See Note)

1шт.

8

1985315

FRAME

ASSEMBLY - commutator end (See Note)

1шт.

9

A40868

BUSHING

- frame, commutator

1шт.

10

A49769

WICK

- oil, armature bushing (See Note)

1шт.

10

A49567

WICK

- oil, armature bushing (See Note)

1шт.

11

A49573

PLUG

- oil wick

1шт.

12

A49574

CAPTIVE WASHER SCREW,Torx, #10 - 32 x 2.28"

BOLT - commutator frame, includes washer

4шт.

13

14068705

BRUSH PLATE ASSEMBLY - commutator frame (See Note)

1шт.

13

1985303

PLATE

BRUSH PLATE ASSEMBLY - starter (See Note)

1шт.

14

1852889

BRUSH, COMMUTATOR

BRUSH - starter

1шт.

15

A49575

SPRING

- brush

4шт.

16

A47894

SCREW,#8 - 32 x 5/16"

- brush retainer (See Note)

4шт.

16

A49576

SELF-TAP SCREW,Hex Washer, #8 - 32 x 0.44"

- brush attaching (See Note)

4шт.

17

A49561

INSULATOR

- conductor

1шт.

18

A49577

TERMINAL STRIP

CONDUCTOR- starter

1шт.

19

A49753

PIN, SPLIT (COTTER)

PIN - roll (See Note)

2шт.

19

177-134

SCREW,Sl Fil Hd, #10 - 32 x 7/16""

- machine, brush plate (See Note)

2шт.

20

NSS

NOT SOLD SEPARAT

INSULATOR - brush plate

2шт.

21

A47894

SCREW,#8 - 32 x 5/16"

- brush retainer

2шт.

22

10496940

COIL

- field (See Note)

1шт.

22

1985324

COIL

- field (See Note)

1шт.

23

A41977

RUBBER INSULATOR

INSULATOR - field coil

2шт.

24

A49500

RUBBER INSULATOR

INSULATOR - outer, field terminal, not shown (See Note)

1шт.

A49501

RUBBER INSULATOR

INSULATOR - inner, field terminal, not shown (See Note)

1шт.

24

1985318

GROMMET

- field coil (See Note)

1шт.

25

A49579

PLATE

POLE SHOE - field

4шт.

26

142955A1

SCREW,Torx Flat Hd, Csk, 3/8" - 24 x 0.735"

- machine, flat Phillips, 3/8 NF x 21/32 inch (See Note)

8шт.

26

188-100

SCREW,Cross Flat Hd, 3/8"-24 x 5/8"

- machine, flat Phillips, 3/8 NF x 21/32 inch (See Note)

8шт.

27

238-5158

O-RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro

1шт.

28

195-2056

WASHER,5/8" x 1" x .065"

- flat, 9/16 x 1 x 1/16 inch

1шт.

29

1985249

ARMATURE

- starter

1шт.

30

A49625

SPACER

- armature

1шт.

31

A49580

HOUSING

ASSEMBLY - lever

1шт.

32

A49581

BUSHING

- housing

1шт.

33

A49567

WICK

- oil, armature bushing

1шт.

34

A49573

PLUG

- oil wick

1шт.

35

A49562

OIL SEAL

- oil

1шт.

36

A49582

WASHER

- housing

1шт.

37

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

38

238-5243

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

- 4-1/4 ID x 1/8 inch wide

1шт.

39

R21587

PLUG

- inspection, lever housing

1шт.

40

A41924

GASKET

- inspection plug

1шт.

41

A187741

BOLT,Torx Drive, 1/4" - 28 x 1", T Pt

- housing retaining (See Note)

5шт.

See Figure Note.

1шт.

41

414-416

BOLT,Hex, 1/4" - 28 x 1", Gr 5

- hex, 1/4 NF x 1 inch (See Note)

5шт.

See Figure Note.

1шт.

42

A49583

LEVER

- shift

1шт.

43

A187739

SHAFT

- shift lever (See Note)

1шт.

See Figure Note.

1шт.

43

A42199

PIN

SHAFT - shift lever (See Note)

1шт.

See Figure Note.

1шт.

44

A47259

O-RING,0.244" ID x 0.391" OD

- shaft

1шт.

44

A47259

O-RING,0.244" ID x 0.391" OD

- shaft

1шт.

45

A47258

O-RING,0.369" ID x 0.515" OD

- 1/4 ID x 1/16 inch wide

1шт.

46

100-1137

SNAP RING,#37, Ext

Ring, Snap, #37, Ext

1шт.

47

A49754

DRIVE

- motor

1шт.

48

A43854

O-RING,3.237" ID x 0.106" THK

- housing

1шт.

49

1986351

HOUSING

ASSEMBLY - drive end

1шт.

50

A40868

BUSHING

- frame, commutator

1шт.

51

A49567

WICK

- oil, armature bushing

1шт.

52

A49573

PLUG

- oil wick

1шт.

53

10499637

SCREW

- drive housing (See Note)

6шт.

See Figure Note.

1шт.

53

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

SCREW - drive housing (See Note)

6шт.

See Figure Note.

1шт.

54

A49585

STOP

- pinion

1шт.

55

A49586

CLIP,ELECTRICAL

RING - retaining

1шт.

56

10497770

BOLT,Torx Hd, 1/4" - 20

- torx head, special, 1/4 NC x 35/64 inch, used with starter 1993891

1шт.

56

425-106

NUT,3/8"-16, Cl 5

Used with starters 1993791 and 1990321 3/8"-16, G5

1шт.

57

1987678

CLIP

- field coil connect

1шт.

58

1115628

SOLENOID

SWITCH ASSEMBLY - solenoid (See Note)

1шт.

See Figure Note.

1шт.

58

1115612

SOLENOID SWITCH

SWITCH ASSEMBLY - solenoid, used with starter 1993791

1шт.

58

1115589

SOLENOID SWITCH

SWITCH ASSEMBLY - solenoid, used with starter 1990321

1шт.

59

A49587

CAPTIVE WASHER SCREW,Hex, 1/4" - 20 x 0.50"

SCREW - special

3шт.

60

A49757

PLUNGER

- solenoid

1шт.

61

A41922

WASHER

- plunger seat

1шт.

62

A49589

BOOT

- plunger

1шт.

63

A43380

BACK-UP RING

SEAT - plunger spring

1шт.

64

A41242

SPRING

- plunger return

1шт.

65

A43419

SEAT

- spring

1шт.

66

100-1137

SNAP RING,#37, Ext

Ring, Snap, #37, Ext

1шт.

67

131-489

LOCK NUT,5/16"-24, G8

NUT - hex, self-locking

1шт.

68

NSS

NOT SOLD SEPARAT

HOUSING - order starter assembly 1993891

1шт.

69

10456430

SHIELD

- solenoid terminal, not shown

1шт.

70

10468109

CONNECTOR, ELEC

CONNECTOR - not shown

1шт.
