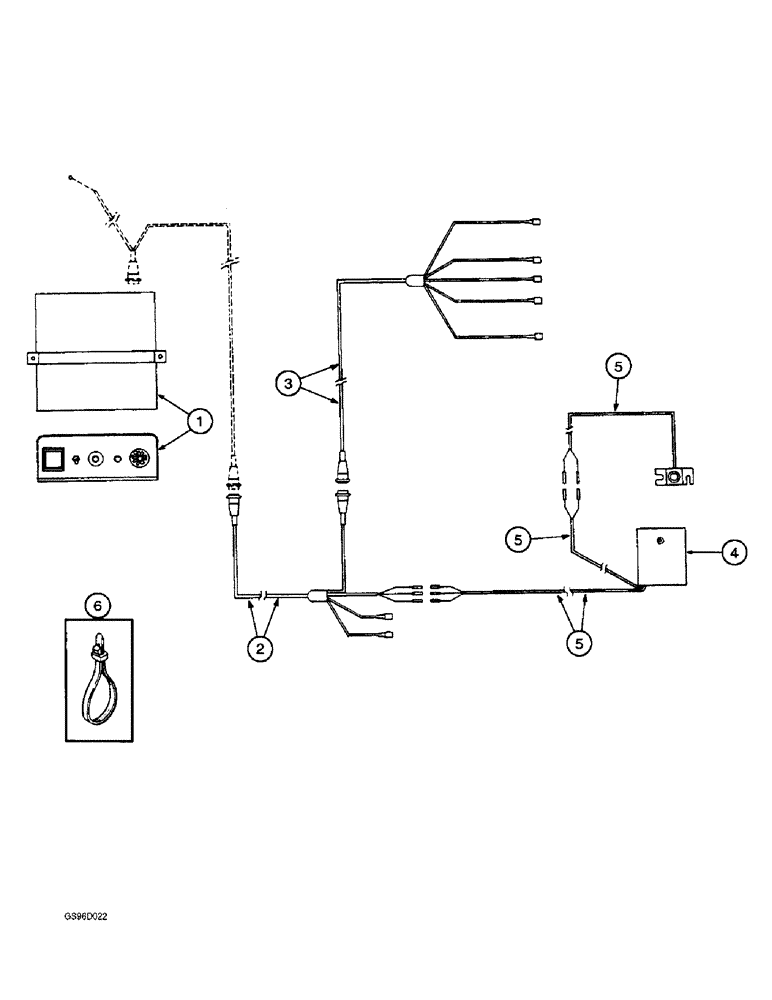

Запчасти Case IH 1400 (4-20) - MONITOR SYSTEM (06) - ELECTRICAL SYSTEMS

1

79935C1

REMAN-ELECT MONITOR

PANEL - console monitor, remanufactured, no longer available

1шт.

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch (Replaces bolt 180073)

2шт.

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch (Replaces washers 120393 and 27309R1)

2шт.

2

222487C1

HARNESS

- main frame

1шт.

3

222486C1

HARNESS

- cross auger

1шт.

4

222484C1

SENSOR

- photo electric receiver

1шт.

5

222485C1

INSULATOR

SENSOR - light emitting diode capsule

1шт.

340-12516

SCREW,Cross Pan Hd, 1/4"-20 x 1"

- machine, pan head cross recess, 1/4 NC x 1 inch (Replaces screw 160556)

4шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC (Replaces nut 120375)

8шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 120380) 1/4"

8шт.

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") (Replaces washer 120392) 1/4", SAE

8шт.

6

386170C1

CABLE TIE,.30" x 27 1/2"

TIE - cable

20шт.

A62209

CLAMP,5/16", Insul, 1/4" Bolt

- cable tie (Replaces clamp 299402C1)

8шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

8шт.

231-5146

FLANGE NUT,3/8"-16

(Replaces nut 482256R1) Flg, USR, 3/8"-16

1шт.
