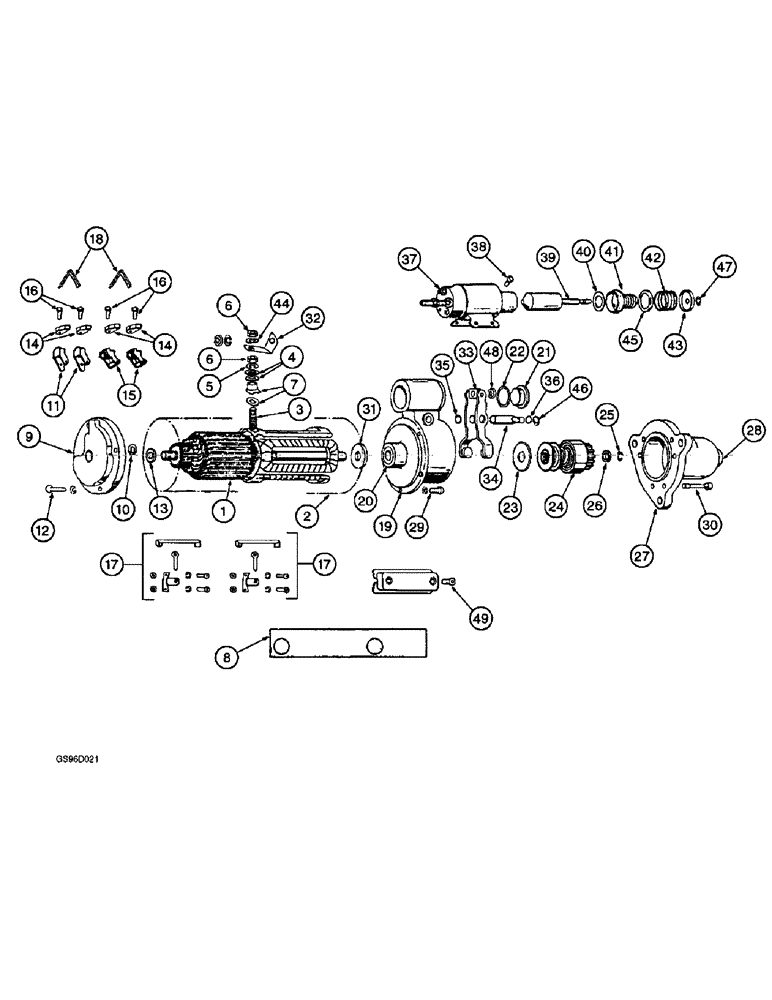

Запчасти Case IH 1400 (4-18) - STARTER ASSEMBLY (06) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1113496
STARTING MOTOR
STARTER ASSEMBLY - engine, Delco, no longer available (See Note)
1шт.
104211A1GV
STARTER MOTOR
Value
1шт.
104211A1R
REMAN-STARTER
Remanufactured Starter
1шт.
104211A1C
CORE-STARTER
Return Number
1шт.
87297334
REMAN-STARTER
Starter
1шт.
87297335
CORE-STARTER
Return Number
1шт.
1
1851961
ARMATURE
ARMATURE - starter
1шт.
2
1852026
COIL
COIL - field
4шт.
3
1950561
STUD
STUD - coil terminal
1шт.
4
1922457
WASHER
WASHER - insulated, coil terminal stud
2шт.
5
1914647
WASHER
WASHER - plain, coil terminal stud
1шт.
6
425-148
JAM NUT,Jam, 1/2"-13, G5
NUT, , Coil terminal stud (Replaces 9414418) Jam, 1/2"-13, G5
1шт.
7
1965472
PACKAGE
KIT - coil terminal stud insulated bushing
1шт.
8
1914873
INSULATOR
INSULATION - field coil
2шт.
9
1891925
FRAME
FRAME - commutator end
1шт.
1891929
WICK
WICK - oil, commutator end frame
1шт.
10
1891927
BUSHING
BUSHING - commutator end frame
1шт.
11
1940477
HOLDER
HOLDER - commutator brush ground
2шт.
12
414-416
BOLT,Hex, 1/4" - 28 x 1", Gr 5
BOLT - commutator end frame, hex, 1/4 NF x 1 inch (Replaces screw 1914869)
4шт.
13
1914842
WASHER
WASHER - commutator end frame
1шт.
14
1906987
BRUSH
BRUSH - commutator
4шт.
15
1950546
HOLDER
HOLDER - commutator brush, insulated
2шт.
16
1959514
SCREW
SCREW - commutator brush holder
4шт.
17
1877164
COMMUTATOR BRUSH
KIT - commutator brush support
2шт.
18
1945620
SPRING
SPRING - commutator brush
2шт.
19
1851986
HOUSING
SPARE PART HOUSING - brake lever
1шт.
1916439
WICK
WICK - oil, brake lever housing
1шт.
20
1933999
BUSHING
BUSHING - brake lever housing
1шт.
21
1945356
PLUG
PLUG - brake lever housing inspection
1шт.
22
1964857
GASKET
GASKET - brake lever housing inspection plug
1шт.
23
R15043
WASHER
WASHER - brake lever housing and motor drive (Replaces washer 821453)
1шт.
24
146485C1
DRIVE
SPARE PART MOTOR - drive, no longer available, order motor A74178
1шт.
25
1928022
SNAP RING
RING - pinion stop retainer
1шт.
27
830711
HOUSING
HOUSING - drive end
1шт.
1916439
WICK
WICK - drive end housing oil
1шт.
1113496
STARTING MOTOR
STARTER ASSEMBLY - engine, Delco, continued
1шт.
28
1955994
BUSHING
BUSHING - drive end housing
1шт.
29
414-416
BOLT,Hex, 1/4" - 28 x 1", Gr 5
BOLT - lever housing, hex, 1/4 NF x 1 inch (Replaces screw 1914869)
5шт.
30
1870513
SCREW
SCREW - driven end housing
6шт.
31
1851959
SPACER
WASHER - brake lever housing and armature
1шт.
33
1851954
LEVER
LEVER - shift
1шт.
34
1851953
SHAFT
SHAFT - shift lever
1шт.
35
1914373
O-RING
O-RING - shift lever shaft, 15/64 inch
1шт.
36
1921805
GASKET
O-RING - shift lever shaft, 1/2 inch
1шт.
37
146493C1
SOLENOID
SWITCH - solenoid (replaces 1115549)
1шт.
38
1930611
LOCK SCREW
SCREW - solenoid switch, includes lockwasher
4шт.
39
851966
WEAR STRIP
PLUNGER - solenoid switch
1шт.
40
1948519
WASHER
WASHER - solenoid switch spring retainer
1шт.
42
1948521
SPRING
SPRING - solenoid switch plunger return
1шт.
43
1948526
RETAINER
RETAINER - plunger spring, 13/32 inch hole
1шт.
44
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, , Terminal stud (Replaces washer 9421427) 1/2"
1шт.
45
1948520
RETAINER
RETAINER - plunger spring, 1-13/64 inch hole
1шт.
46
100-1137
SNAP RING,#37, Ext
Ring, Snap, , shift lever shaft pin (replaces ring 9415235) #37, Ext
1шт.
47
100-1137
SNAP RING,#37, Ext
Ring, Snap, , shift lever spring (replaces ring 9415235) #37, Ext
1шт.
48
1851995
NUT
NUT - plunger rod guide adjustable
1шт.
49
188-100
SCREW,Cross Flat Hd, 3/8"-24 x 5/8"
SCREW - commutator pole shoe, machine, flat Phillips, 3/8 NF x 21/32 inch (Replaces screw 1968396)
8шт.
413-618
BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5
BOLT, (Replaces bolt 180123) Hex, 3/8"-16 x 1 1/8", G5, Full Thd
3шт.
492-11038
LOCK WASHER,3/8"
LOCK WASHER, (Replaces washer 120382) 3/8"
4шт.
329-146
JAM NUT,Jam, 3/8"-16, G5
NUT, (Replaces nut 124829) Jam, 3/8"-16, G5
1шт.
492-11010
LOCK WASHER,#10
WASHER, LOCK, (Replaces washer 120217) #10
1шт.
Выбрано товаров: 63
