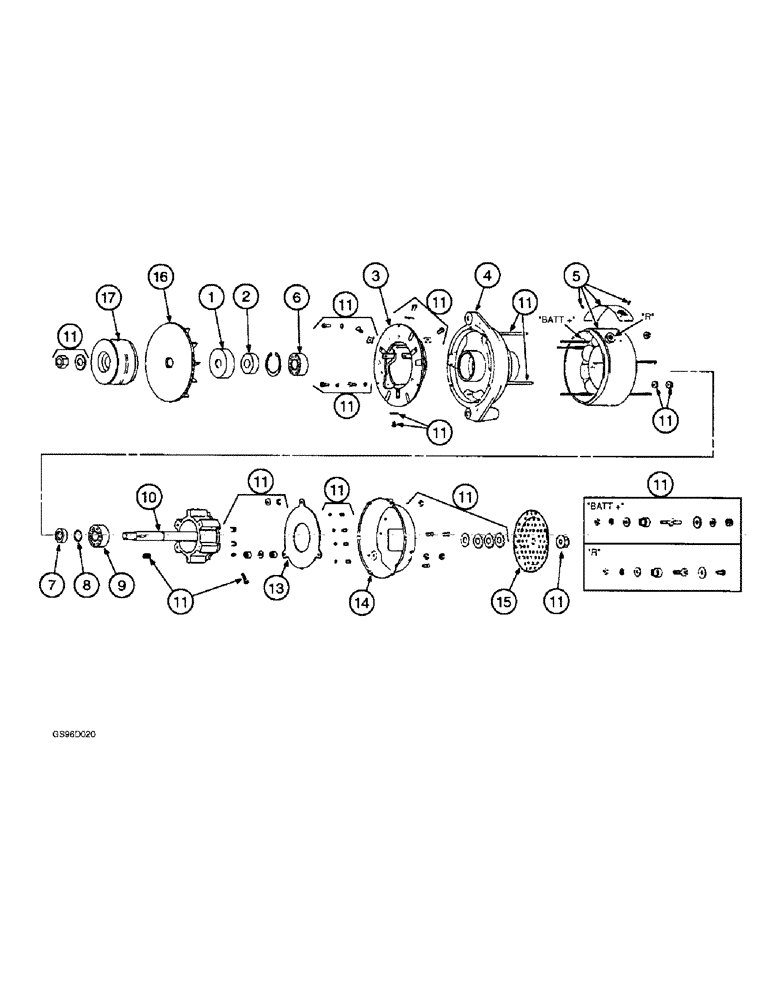

Запчасти Case IH 1400 (4-16) - ALTERNATOR-GENERATOR (06) - ELECTRICAL SYSTEMS

146466C91

ALTERNATOR

ALTERNATOR-GENERTOR ASSEMBLY - 80 ampere

1шт.

87297294

REMAN-ALTERNATOR

Reman for New P/N 146466C91

1шт.

87297295

CORE-ALTERNATOR

Return Number

1шт.

A163085GV

ALTERNATOR

Value, 12V, 105A

1шт.

103807A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 105 ampere

1шт.

103807A1C

CORE-ALTERNATOR

Return Number

1шт.

146466C91

ALTERNATOR

Alternator, 12 VOLT, 80 AMP

1шт.

104023A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 80 AMP Alternator

1шт.

104023A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 80 AMP Alternator

1шт.

104024A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 100 AMP Alternator

1шт.

104024A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 100 AMP Alternator

1шт.

1

130991C1

CUP WASHER

WASHER - front spring and bearing cover

1шт.

2

130992C1

SPACER

SPACER - front

1шт.

3

130994C1

AMPLIFIER ASSY.

AMPLIFIER - rectifier and heat sink

1шт.

4

130995C2

FRAME ASSY

FRAME - field winding and end

1шт.

5

130997C2

SHELL

SHELL AND STATOR - alternator-generator

1шт.

6

131097C91

BALL BEARING,0.6693" ID x 1.8504" OD x 0.5512"

BEARING - front

1шт.

7

130998C1

CUP WASHER

WASHER - retainer cup

1шт.

8

130993C1

RING

RING - retainer

1шт.

9

131098C91

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - rear

1шт.

10

131000C1

ROTOR ASSY.

ROTOR - alternator-generator

1шт.

11

131002C1

COVER

KIT - hardware service

1шт.

13

131001C1

REGULATOR

REGULATOR - voltage

1шт.

14

131002C1

COVER

COVER - voltage regulator

1шт.

15

131004C1

SCREEN

SCREEN - voltage regulator

1шт.

131003C1

CABLE ASSY.

CABLE - ground

1шт.

16

221425R1

FAN

FAN - alternator-generator

1шт.

17

121847C1

PULLEY

PULLEY - double, alternator-generator

1шт.
