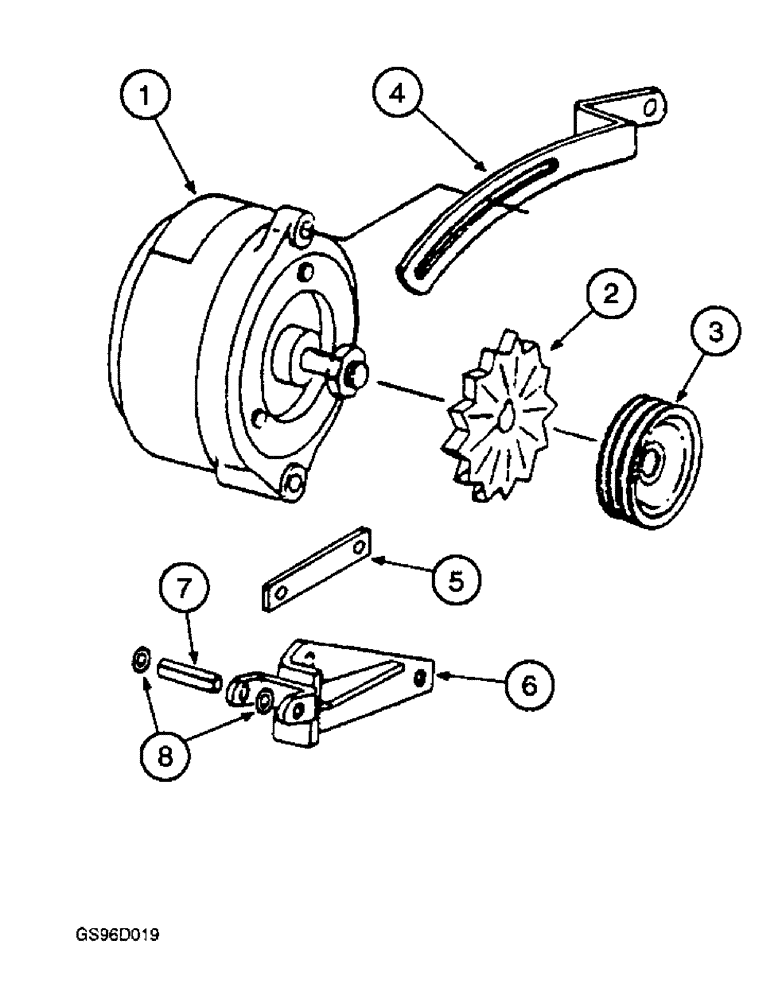

Запчасти Case IH 1400 (4-14) - ALTERNATOR-GENERATOR MOUNTING (06) - ELECTRICAL SYSTEMS

1

146466C91

ALTERNATOR

ALTERNATOR-GENERATOR ASSEMBLY - 80 ampere, parts list page 4-17

1шт.

1

87297294

REMAN-ALTERNATOR

Reman for New P/N 146466C91

1шт.

1

87297295

CORE-ALTERNATOR

Return Number

1шт.

1

A163085GV

ALTERNATOR

Value, 12V, 105A

1шт.

1

103807A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 105 ampere

1шт.

1

103807A1C

CORE-ALTERNATOR

Return Number

1шт.

1

146466C91

ALTERNATOR

Alternator, 12 VOLT, 80 AMP

1шт.

1

104023A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 80 AMP Alternator

1шт.

1

104023A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 80 AMP Alternator

1шт.

1

104024A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 100 AMP Alternator

1шт.

1

104024A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 100 AMP Alternator

1шт.

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

BOLT - hex, 10 - 1.5 x 100 mm (Replaces bolt 30476R1)

1шт.

832-41310

NUT,M10 x 1.5, Cl 10

NUT - hex, self-locking, 10 mm - 1.5, class 10 (Replaces nut 905262R1)

1шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

WASHER, (Replaces washer 30327R1) M10 x 21.5 x 2.5, HT

2шт.

2

221425R1

FAN

FAN - alternator-generator

1шт.

3

121487C1

PULLEY - alternator-generator

1шт.

4

3218047R2

SUPPORT

BRACE - alternator-generator (Replaces brace 3218047R1)

1шт.

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

BOLT - hex, 5/16 NC x 2-3/4 inch (Replaces bolt 179829)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

1шт.

425-105

NUT,5/16"-18, G5

NUT - hex, 5/16 inch NC (Replaces nut 102634)

1шт.

5

3144970R1

PLATE

PLATE - distance

1шт.

6

3218048R2

SUPPORT

BRACKET - alternator-generator (Replaces bracket 3218048R1)

1шт.

413-572

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

BOLT - hex, 5/16 NC x 4-1/2 inch (Replaces bolt 187953)

3шт.

425-105

NUT,5/16"-18, G5

NUT - hex, 5/16 inch NC (Replaces nut 102634)

3шт.

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

WASHER - flat, 11/32 x 11/16 x 3/32 inch, hardened (Replaces washer 27326R1)

6шт.

7

717547R1

LOCK PIN,M16 x 18, Slotted

PIN - slotted spring

1шт.

8

496-21041

WASHER,13/32" x 13/16" x .089", HDN

WASHER - flat, 13/32 x 13/16 x 3/32", hardened (Replaces washer 25709R1)

2шт.
