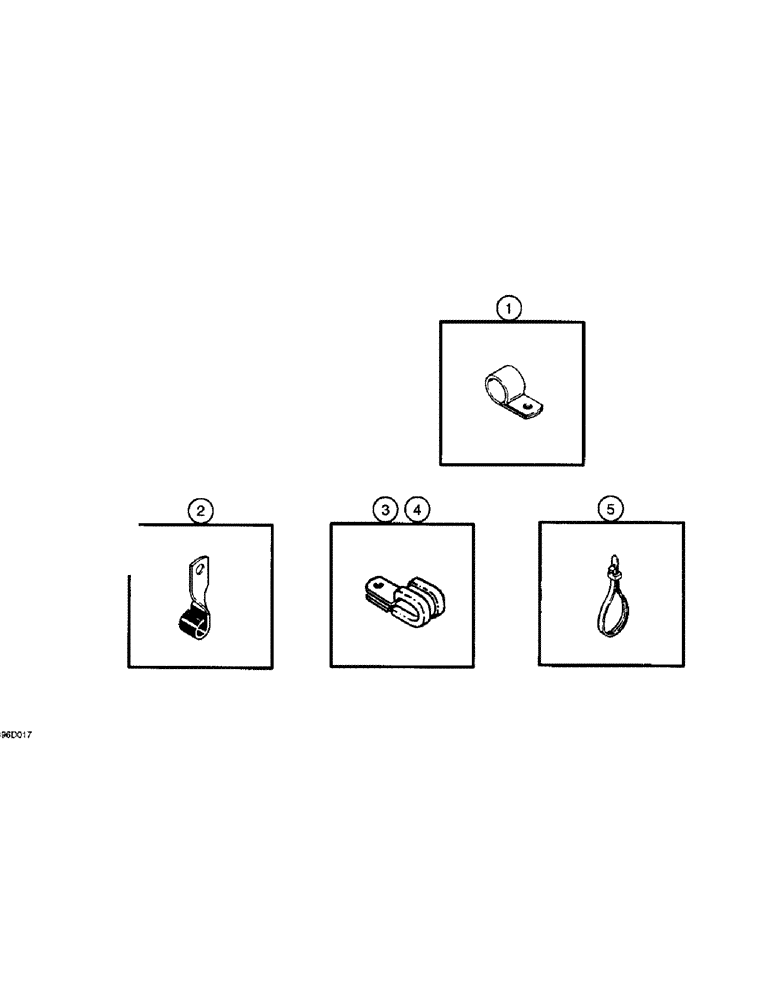

Запчасти Case IH 1400 (4-10[1]) - CLAMPS (06) - ELECTRICAL SYSTEMS

1

358986R1

CABLE CLIP

CLIP - harness rear adapter housing

2шт.

413-756

BOLT,Hex, 7/16" - 14 x 3-1/2", Gr 5

- hex, 7/16 NC x 3-1/2 inch (Replaces bolt 179872)

2шт.

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC (Replaces nut 271500)

2шт.

329-148

NUT,Jam, 1/2"-13, G8

- hex, 1/2 inch NC (Replaces nuts 114505 and 25933R1)

2шт.

1

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP - harness rear adapter housing, 13/32 inch inch diameter

1шт.

326-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 8

(Replaces bolts 179833 and 24838R1) Hex, 3/8"-16 x 1/2", G8, Full Thd

1шт.

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- hex, 13/32 x 13/16 x 3/32" (Replaces washer 103341)

2шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 180077)

3шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

3шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 120376)

3шт.

1

362121R1

CLIP

- harness rear adapter housing, 9/32 inch diameter, no longer used, order clip 362120R1

1шт.

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch (Replaces bolt 180022)

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 120380) 1/4"

2шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC (Replaces nut 120375)

2шт.

1

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

CLIP - harness rear adapter housing, 13/32 inch diameter

1шт.

1

366460R1

CABLE CLIP

CLIP - harness rear adapter housing, 13/32 inch diameter

1шт.

28588R1

WASHER

- flat, 1/32 x 11/16 x 3/64 inch (Replaces washers 120393 and 27309R1)

2шт.

1

384559R1

CLIP

- harness rear adapter housing, 13/32 inch diameter

1шт.

2

363660R1

CLIP

- harness rear adapter housing, 13/32 inch diameter

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 180122)

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 120380) 1/4"

1шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC (Replaces nut 120375)

1шт.

3

371036R1

CLIP

- harness rear adapter housing, 11/32 inch diameter

1шт.

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch (Replaces bolt 180022)

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 120380) 1/4"

1шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC (Replaces nut 120375)

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 180077)

3шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 120376)

3шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

3шт.

4

204412R1

CLIP,ELECTRICAL

CLIP - hose

6шт.

5

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP - cable tie

1шт.
