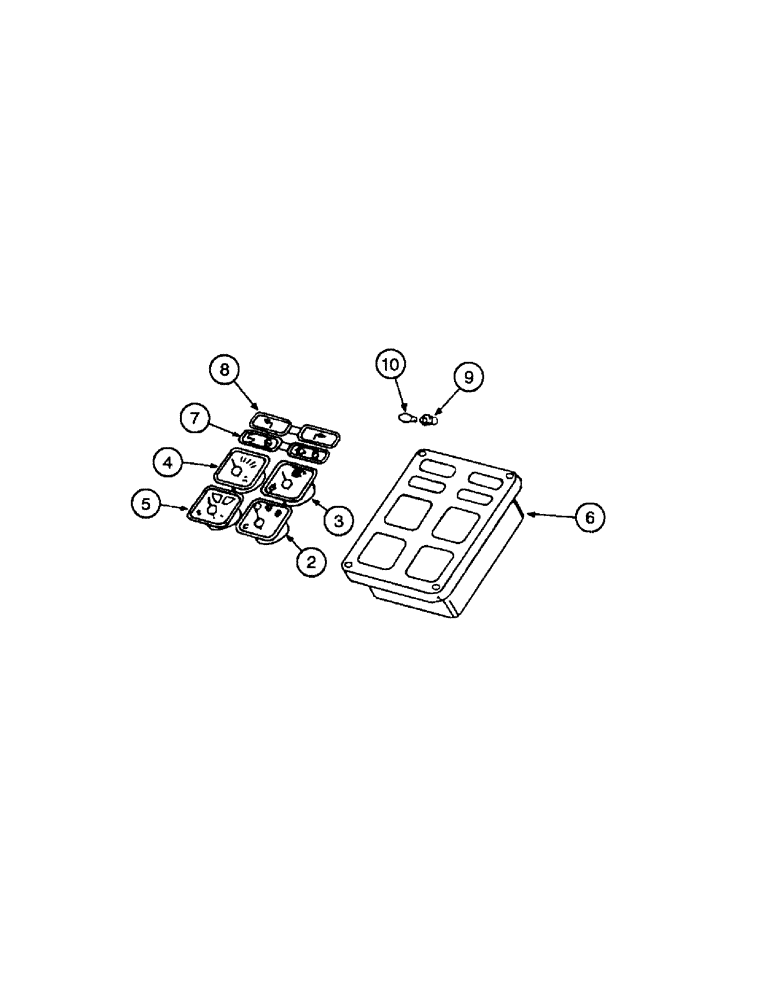

Запчасти Case IH 1400 (4-08) - INSTRUMENTS (06) - ELECTRICAL SYSTEMS

207717C91

CLUSTER

ASSEMBLY - gauges

1шт.

2

121604C2

ELECTRICAL GAUGE

GAUGE - fuel (Replaces gauge 121604C1)

1шт.

3

121605C3

ELECTRICAL GAUGE

GAUGE - temperature (Replaces gauge 121605C2)

1шт.

4

121606C2

ELECTRICAL GAUGE

GAUGE - oil pressure (Replaces gauge 121606C1)

1шт.

5

121607C2

ELECTRICAL GAUGE

GAUGE - voltage (Replaces gauge 121607C1)

1шт.

6

121608C1

GASKET

BEZEL - instrument, includes gasket

1шт.

24613R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 3/4"

SCREW - self-tapping, No. 10 NC x 3/4 inch (Replaces screws 26232R1 and 27204R1)

4шт.

445357

SPRING NUT,J, #10-16

- spring, No. 10 NC

4шт.

7

215679C1

LENS - warning lamp

1шт.

8

215680C1

LENS - warning lamp

1шт.

9

121611C1

SOCKET

- bulb

1шт.

10

W10478

LAMP

BULB - No. 194, instrument cluster (Replaces bulb 20627R1)

6шт.
