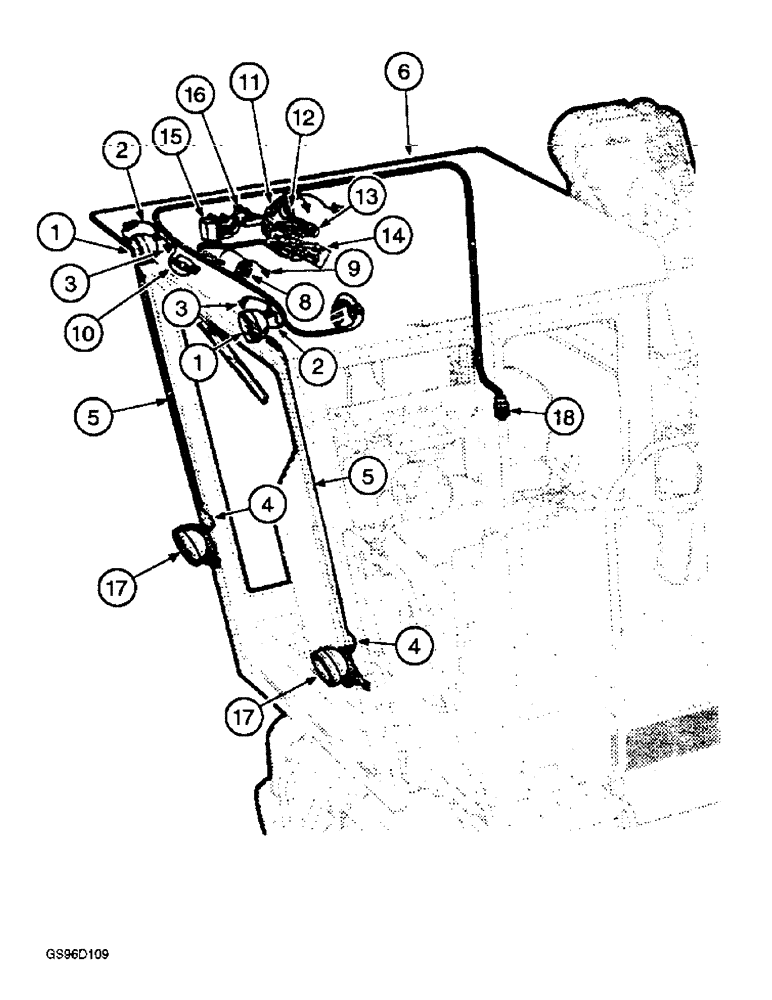

Запчасти Case IH 1400 (4-05A) - OPERATORS CAB HARNESS (06) - ELECTRICAL SYSTEMS

1

388945R91

HEADLIGHT

LAMP ASSEMBLY - night (Replaces lamp assembly 175569C91)

1шт.

175570C1

SEAL RETAINER

- night lamp retainer

1шт.

373662R1

LAMP

SEAL - beam

1шт.

2

2984528

BODY

CONNECTOR - used with cabs without air conditioning

7шт.

2

188393R1

CONNECTOR, ELEC

CONNECTOR - used with cabs with air conditioning

7шт.

3

198162C1

CABLE

- upper night lamp ground

2шт.

4

167412C1

CABLE

- front lamp

2шт.

5

196928C1

CABLE

- lower lamp

1шт.

6

196808C3

HARNESS

- cab main

1шт.

8

REF

INSTRUCTION

BLOWER ASSEMBLY - cab, parts list pages 9D-11 or 9D-11B

1шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch (Replaces bolt 180016)

4шт.

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

(Replaces nut 938016R1) Flg, USR, 1/4"-20

4шт.

9

187671C1

CABLE

- blower ground

1шт.

231-51409

SERRATED NUT,Flg, USR, #10-24

(Replaces nut 174097C1) Flg, USR, #10-24

1шт.

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan Phillips, No. 10 Nc x 1/2 inch (Replaces screw 159920)

1шт.

248-1220

GROMMET,3/4" ID x 1 3/8" x .062", Diag Cut

- rubber, 3/4 x 1-3/8 inch (Replaces grommet 127979)

1шт.

10

111397C2

LAMP

- dome

1шт.

24416R1

SCREW,Cross Oval Hd, #6 x 3/8"

- self-tapping, No. 6 NF x 3/8 inch

1шт.

11

L70872

SWITCH

- night lamp (Replaces switch 168251C1)

1шт.

111282C1

KNOB

- switch

1шт.

162214R1

NUT

- hex jam

1шт.

117940C1

LENS

- dome lamp

1шт.

33686

BULB

LAMP - No. 1141 (Replaces lamp 142456)

1шт.

12

109268C2

SWITCH

- operators cab, thermostat, used with machines with air conditioning

1шт.

13

109369C91

LIGHT ASSY.

LAMP - low pressure indicator, used with machines with air conditioning

1шт.

14

168822C2

SWITCH

- blower

1шт.

111282C1

KNOB

- blower switch

1шт.

118296C1

CONNECTOR - blower, no longer used

1шт.

15

437882C1

RELAY

- low pressure indicator, used with machines with air conditioning

1шт.

16

187526C1

BLOCK

- junction

1шт.

231-51409

SERRATED NUT,Flg, USR, #10-24

(Replaces nut 174097C1) Flg, USR, #10-24

2шт.

17

301064C1

HARNESS - monitor

1шт.

18

2977042

TERMINAL STRIP

CONNECTOR - cab harness to combine, used with machines without air conditioning, no longer used

1шт.

18

449797C1

CONTACT HOUSING,Male, 6 Pole

CONNECTOR - cab harness to combine, used with machines with air conditioning

1шт.
