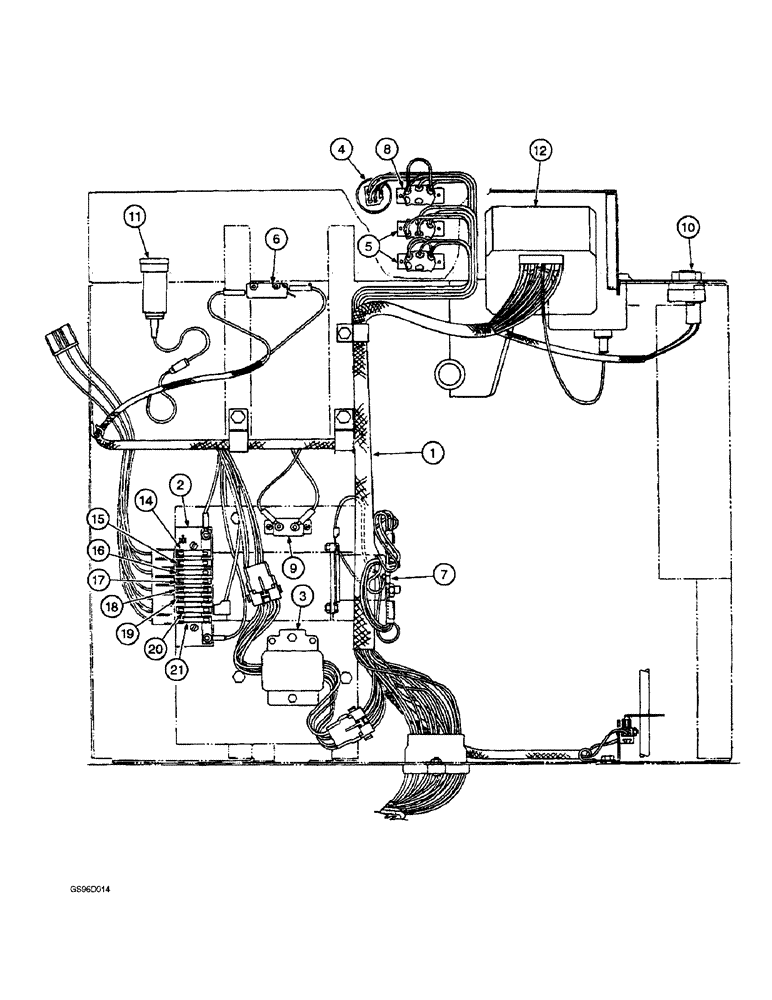

Запчасти Case IH 1400 (4-04) - CONSOLE HARNESS (06) - ELECTRICAL SYSTEMS

1

121667C3

HARNESS

- console

1шт.

2

196875C1

BLOCK

PANEL - fuse

1шт.

443874

BRACKET

- machine, No. 10 NC x 1/2 inch

1шт.

225-14110

NUT,#10-24

(Replaces nut 120361) #10-24

1шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, (Replaces washer 120217) #10

1шт.

3

187609C2

RECTIFIER

MODULE - warning circuit, no longer available, order module 1994871C1 below

1шт.

3

1994871C1

GOVERNOR

MODULE - diode and load dump

1шт.

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - self-tapping, hex head, 1/4 x 1/2 inch

1шт.

4

221387C1

SWITCH

- ignition and starting

1шт.

131313C1

KEY, IGNITION

KEY - ignition

1шт.

365502R1

NUT

- switch mounting

2шт.

375431R1

LOCK WASHER

- internal lock, 13/16 inch (Replaces washer 125793)

1шт.

5

195605C1

SWITCH

- lamp

2шт.

440-10610

SCREW,Phillips Drive, Pan HD, #6 - 32 x 5/8"

- machine, pan Phillips, No. 6 NC x 5/8 inch

1шт.

225-14106

NUT,#6-32

(Replaces nut 134530) #6-32

1шт.

492-11006

LOCK WASHER,#6

Washer, Lock, (Replaces washer 131044) #6

1шт.

6

633643R91

SWITCH

- parking brake warning lamp and water solenoid

1шт.

A39888

NUT

- hex, 3/8-32 (Replaces nut 68017H)

1шт.

495-51041

WASHER,3/8"

- flat, 13/32 x 47/64 x 1/16 inch (Replaces washer 469668R1)

1шт.

159376

HYDRAULIC HOSE

SCREW - machine, pan head cross recess, No. 6 x 1 inch

2шт.

225-14106

NUT,#6-32

(Replaces nut 134530) #6-32

2шт.

492-11006

LOCK WASHER,#6

Washer, Lock, (Replaces washer 131044) #6

2шт.

495-21019

WASHER,#8

(Replaces washer 131015) #8

2шт.

7

107655C1

SOLENOID SWITCH

SWITCH - magnetic console

1шт.

225-14210

NUT,#10-32

(Replaces nut 120614) #10-32

1шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, (Replaces washer 120217) #10

1шт.

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch (Replaces bolt 180022)

2шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC (Replaces nut 120375)

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 120380) 1/4"

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 120376)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

2шт.

8

198960C1

SWITCH

- ether

1шт.

440-10610

SCREW,Phillips Drive, Pan HD, #6 - 32 x 5/8"

- machine, pan Phillips, No. 6 NC x 5/8 inch

2шт.

9

L104330

BREAKER

- cab circuit, 30 ampere (Replaces breaker 173906C1)

1шт.

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan Phillips, No. 10 NC x 1/2 inch (Replaces screws 120221 and 159927)

2шт.

225-14110

NUT,#10-24

(Replaces nut 120361) #10-24

2шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, (Replaces washer 120217) #10

2шт.

10

121628C1

BUZZER

- alarm

1шт.

11

195778C91

LIGHTER, CIGARETTE

LIGHTER - cigarette, no longer available, order lighter 245576C1 (See Note)

1шт.

See Figure Note.

1шт.

11

245576C1

LIGHTER, CIGARETTE

LIGHTER - cigarette (See Note)

1шт.

See Figure Note.

1шт.

12

207717C91

CLUSTER

ASSEMBLY - gauges, parts list page 4-9

1шт.

14

223-31

FUSE,10 Amp, Type 3AG

- cartridge type, work lamps, 30 ampere, 3AG (Replaces fuses 9426331 and 120114)

1шт.

15

223-20

FUSE,20 Amp, Type SFE

- cartridge type, accessories, 20 ampere (Replaces fuse 9428126)

1шт.

16

223-10

FUSE,10 Amp, Type 3AG

- cartridge type, headlamps, 10 ampere (Replaces fuse 9426334)

1шт.

17

223-10

FUSE,10 Amp, Type 3AG

- cartridge type, fuel gauge, 10 ampere (Replaces fuse 9426334)

1шт.

18

223-10

FUSE,10 Amp, Type 3AG

- cartridge type, accessories, 10 ampere (Replaces fuse 9426334)

1шт.

19

223-10

FUSE,10 Amp, Type 3AG

- cartridge type, ether start, 10 ampere (Replaces fuse 9426334)

1шт.

20

223-26

FUSE,5 Amp, Type 3AG

- cartridge type, instruments, 5 ampere, 3 AG (Replaces fuse 142630)

1шт.

21

223-20

FUSE,20 Amp, Type SFE

- cartridge type, warning lamps, 20 ampere (Replaces fuse 9428126)

1шт.
