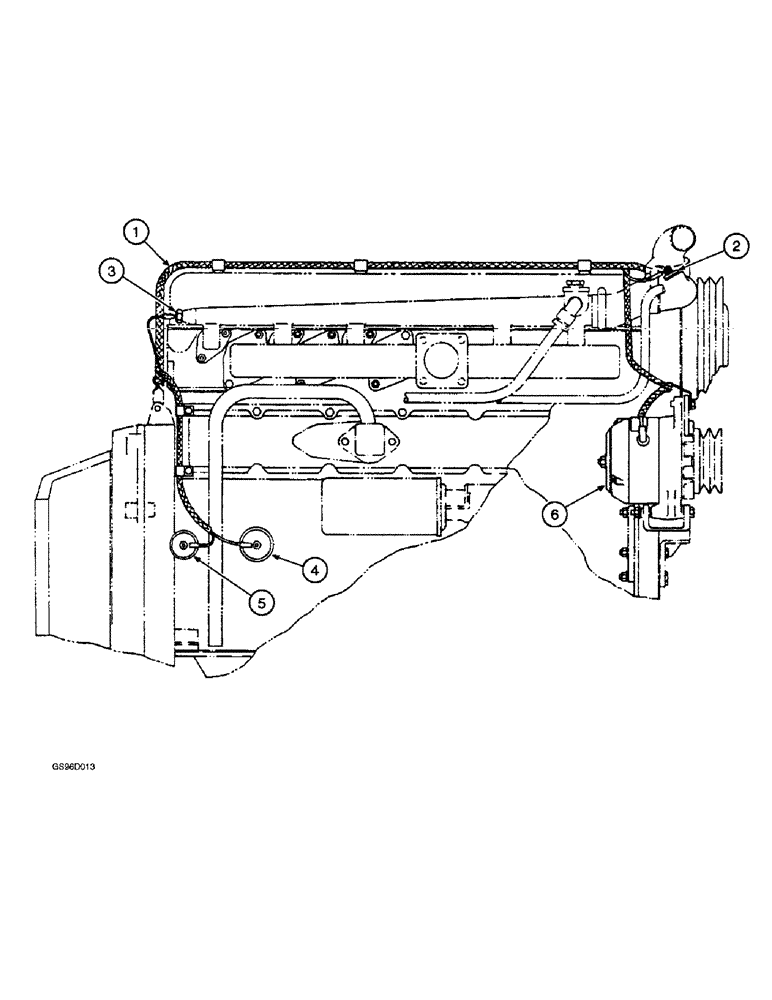

Запчасти Case IH 1400 (4-02) - ENGINE HARNESS (06) - ELECTRICAL SYSTEMS

1

121670C3

HARNESS

- engine (Replaces harness 121670C2)

1шт.

2

121756C2

SENSOR

SENDER - coolant

1шт.

3

107488C2

SWITCH

- coolant, high temperature (Replaces switch 107488C1)

1шт.

4

1341329C1

TRANSMITTER

SENDER - oil pressure gauge (Replaces sender 130707C2)

1шт.

217-40

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

- 1/4 PT x 1/8 inch PT (Replaces adapter 444024)

1шт.

5

392249R92

SWITCH

- low oil pressure lamp

1шт.

217-40

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

- 1/4 PT x 1/8 inch PT (Replaces adapter 444024)

1шт.

6

146466C91

ALTERNATOR

- GENERATOR - 80 ampere, parts list page 4-17

1шт.

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

- hex, 10 - 1.5 x 100 mm (Replaces bolt 30476R1)

1шт.

832-41310

NUT,M10 x 1.5, Cl 10

NUT - hex, self-locking, 10 mm - 1.5, class 10 (Replaces nut 905262R1)

1шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

(Replaces washer 30327R1) M10 x 21.5 x 2.5, HT

2шт.

1014921C1

BOLT

BOLT - hex, M8 x 30, class 8.8 (Replaces bolt 930294R1)

1шт.

896-12030

WASHER,33mm ID x 56mm OD x 5mm Thk

- flat, 1-9/32 x 2-13/64 x 3/16 inch, hardened (Replaces washer 30181R1)

1шт.
