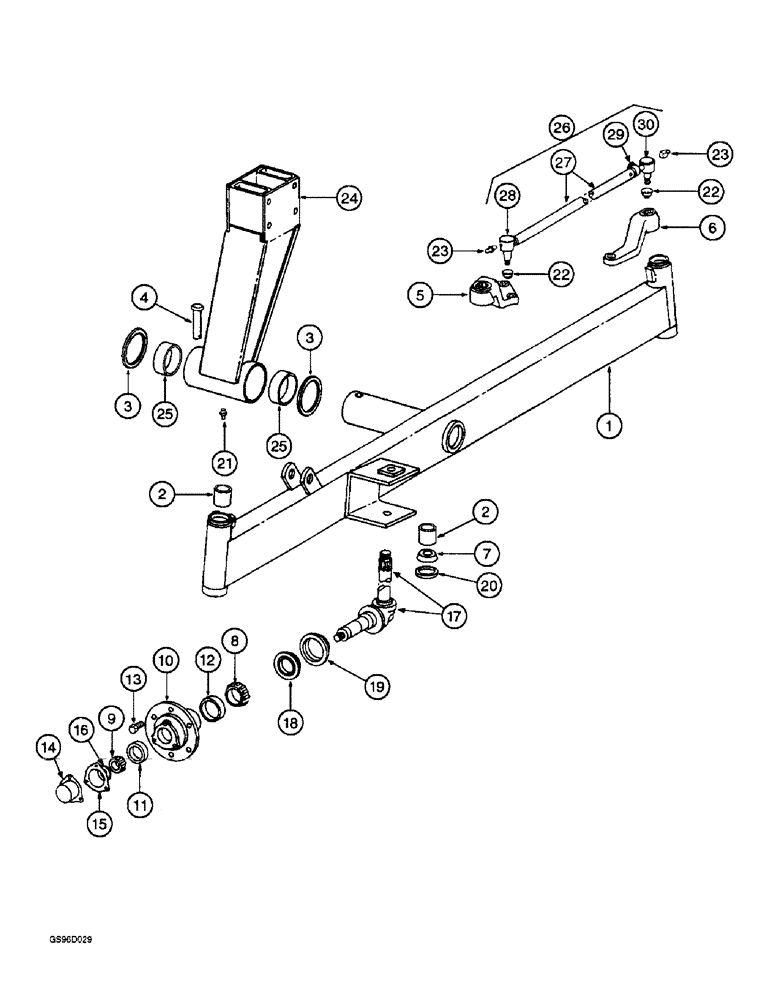

Запчасти Case IH 1400 (5-12) - STEERING AXLE - FIXED, SERIAL NUMBERS 500 THROUGH 763 (04) - STEERING

1

222349C91

AXLE - guide wheel fixed, no longer available (See Note)

1шт.

NOTE: When ordering axle 222349C91, also order extension 177763C91, axle 1251278C2, extension 177764C91, plate 1251276C1, plate 12151277C1, spacer 1260432C1, pin 439-11288, and pin 32-1620.

1шт.

2

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

- steering axle (Replaces bushing 376099R1)

4шт.

3

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

- guide axle pivot

2шт.

4

177762C1

PIN

- guide axle pivot

1шт.

32-1620

COTTER PIN,1/4" x 1 1/4"

PIN, SPLIT (COTTER), (Replaces pin 103419) 1/4" x 1 1/4"

1шт.

5

177776C3

ARM

- steering knuckle, left-hand

1шт.

6

177777C1

ARM

- steering knuckle, right-hand

1шт.

425-1522

JAM NUT,Jam, 1 3/8"-12, G5

- hex jam, 1-3/8 inch NF (Replaces nut 427547)

2шт.

495-81218

WASHER,35.71mm ID x 69.85mm OD x 1.37mm Thk

- flat, 1-13/32 x 2-3/4 x 3/64 inch (Replaces washer 22827R1)

2шт.

7

185106C91

BEARING ASSY,44.2mm ID x 70.1mm OD x 19.05mm W

BEARING - steering axle (Replaces bearing 405831R91)

2шт.

8

G15215

ROLLER BEARING

BEARING - inner wheel cone (Replaces bearing 619386R91)

2шт.

9

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING - outer wheel cone

2шт.

232-4636

LOCK NUT,3/8"-24, GC

NUT, LOCK, 3/8"-24, GC

1шт.

10

391823R11

HUB

- wheel

2шт.

10

391823R11GV

HUB

Value, Hub Assy.

2шт.

11

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

- Outer wheel

2шт.

12

619387R1

BEARING CUP

BEARING - inner wheel cup

2шт.

13

403538R2

WHEEL BOLT,Hex, 9/16" - 18 x 1.21"

BOLT - front wheel hub (Replaces bolt 51485D)

12шт.

14

369859R1

CAP

- front wheel hub

2шт.

15

369860R1

GASKET,0.79mm Thk

- front wheel hub

2шт.

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch (Replaces bolt 180075)

6шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

6шт.

16

370255R2

WASHER,22.63mm ID x 47.75mm OD x 4.18mm Thk

- flat, 1/64 x 1-1/64 x 5 inch, hardened

2шт.

17

71785C2

STEERING KNUCKLE

KNUCKLE - steering (Replaces steering knuckle 71785C91)

2шт.

18

370254R91

OIL SEAL,57.02mm ID x 82.55mm OD x 6.86mm Thk

- steering knuckle

2шт.

19

48701D

SHIELD

- steering knuckle

2шт.

425-1314

SLOTTED NUT,7/8"-14, G5

NUT - hex slotted, 7/8 inch NF (Replaces nut 427646)

2шт.

432-1024

COTTER PIN,5/32" x 1 1/2"

(Replaces pin 108643) 5/32" x 1 1/2"

2шт.

20

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

- Felt

2шт.

21

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (Replaces fitting 19588R91) 1/4"-28 x .56" lg, Self-Tap

1шт.

21441R1

BOLT,Hex, 3/4"-10 x 8 1/4", G8

- hex, 3/4 NC x 8-1/4 inch

4шт.

329-1012

NUT,3/4"-10, G8

(Replaces nut 25529R1) 3/4"-10, G8

4шт.

492-11075

LOCK WASHER,3/4"

(Replaces washer 131046) 3/4"

4шт.

22

A41424

SEAL

- steering knuckle arm (Replaces seal 382562R1)

2шт.

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2" (Replaces pin 137204)

2шт.

495-81176

WASHER,21/32" x 1" x .060"

- flat, 21/32 x 1 x 3/64 inch (Replaces washer 21796R1)

2шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch (Replaces fitting 109461)

1шт.

24

217401C91

BOLSTER

- guide wheel

1шт.

25

177751C1

BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L

- guide wheel bolster

2шт.

26

179123C91

ROD

ASSEMBLY - tie

1шт.

425-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex slotted, 5/8 inch NF (Replaces nut 125267)

2шт.

27

179226C1

TUBE,1.012" ID, 1.36" OD, 52.31" Length

- tie rod

1шт.

28

179227C1

END

- tie rod, left-hand

1шт.

29

225265R1

CLAMP

- tie rod, right-hand

1шт.

30

179228C1

END ASSY.

END - tie rod, right-hand

1шт.

25776R1

BOLT

BOLT - hex, 3/8 NF x 2-1/2 inch

1шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch (Replaces bolt 180185)

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces nut 120378) 1/2"-13, G5

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 120384) 1/2"

1шт.
