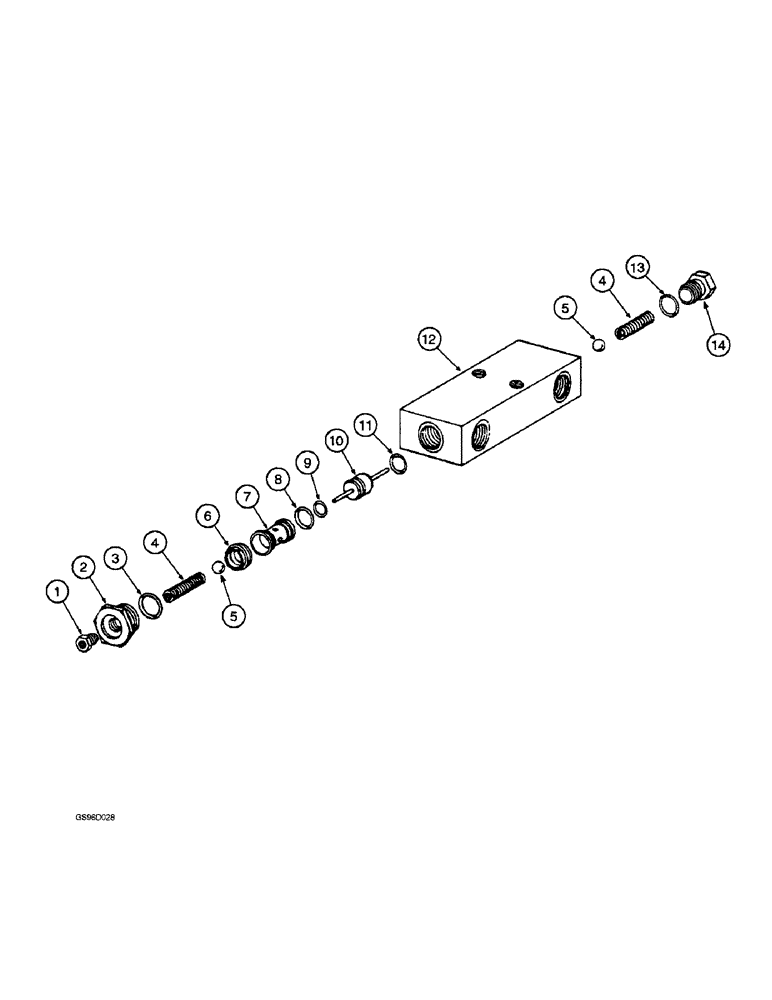

Запчасти Case IH 1400 (5-10) - STEERING DOUBLE CHECK VALVE (04) - STEERING

673293R92

VALVE

ASSEMBLY - steering double check

1шт.

385559R91

PLUG

VALVE ASSEMBLY - thermal relief, no longer available as a unit, order components

1шт.

1

385702R91

VALVE

- thermal relief

1шт.

2

377594R1

PLUG

- check valve relief

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Check valve relief plug (Replaces 368269R1)

1шт.

4

372649R1

SPRING

- check valve

2шт.

5

211-1016

BALL,12.7mm OD, Gr 24

- chrome alloy steel, 1/2 inch, grade 24 (Replaces ball 17016R1)

2шт.

6

374172R1

NUT

- check valve ball retainer

1шт.

7

674540R1

RETAINER

- check valve ball

1шт.

8

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Ball retainer (Replaces O-ring 384943R1) -018, 90 Duro, .739" ID x .070" Thk

1шт.

9

238-6017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

Ball retainer (Replaces O-ring 383024R1) -017, 90 Duro, .676" ID x .070" Thk

1шт.

10

374085R11

PISTON

- check valve actuator

1шт.

11

238-6114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

Check valve piston (Replaces O-ring 606271C1) -114, 90 Duro, .612" ID x .103" Thk

1шт.

12

NSS

NOT SOLD SEPARAT

BODY - assembly, order valve assembly 673293R92

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- check valve, 3/4 ID x 3/32 inch wide (Replaces O-ring 364885R1)

1шт.

14

374089R1

PLUG

- check valve, small

1шт.
