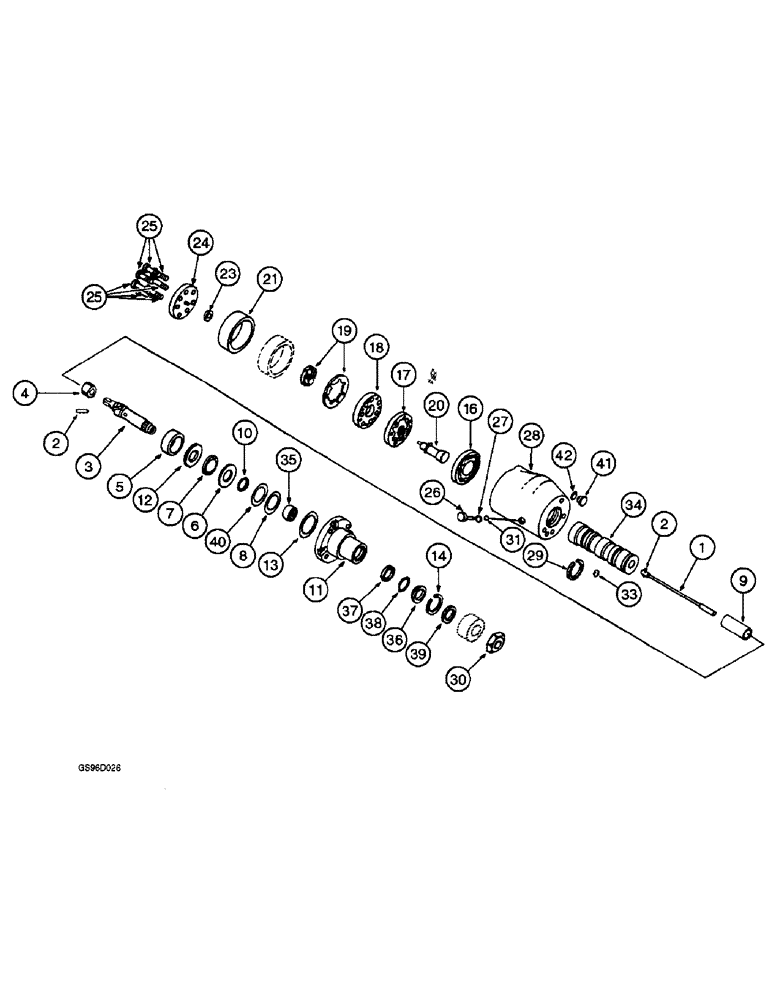

Запчасти Case IH 1400 (5-06) - STEERING PUMP (04) - STEERING

126893C91

DRIVE

PUMP ASSEMBLY - steering

1шт.

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch (Replaces bolt 180073)

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

4шт.

1

A43718

BAR

- torsion (Replaces bar 535055R1)

1шт.

2

535056R1

PIN

- torsion bar needle

1шт.

3

D73672

SHAFT

- input (Replaces shaft 535057R1)

1шт.

4

535058R1

RING

- drive

1шт.

5

N6514

BUSHING

SPACER - input shaft (Replaces spacers 928468C1 and A43728)

1шт.

6

A43558

BEARING WASHER,0.91" ID x 1.735" OD x 0.126"

WASHER - thrust (Replaces washer 535087R1)

1шт.

7

F19633

NEEDLE BEARING,22.27mm ID x 36.24mm OD x 1.98mm W

BEARING - thrust (Replaces bearing 379783R91)

1шт.

8

A44435

SHIM

KIT - shim (Replaces kit 67567C1)

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.002 inch, order kit A44435

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch, order kit A44435

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch, order kit A44435

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.030 inch, order kit A44435

1шт.

9

535120R1

SPACER

- drive link

1шт.

10

A43720

RING

- retaining (Replaces ring 928752C1)

1шт.

11

D65139

COVER

- upper (Replaces cover 70115C1)

1шт.

27586R1

12 PT SCREW,Flg, 5/16"-18 x 3/4"

SCREW - 12 point flange, 5/16 NC x 5/64 inch

4шт.

12

F19634

BEARING WASHER

WASHER - thrust (Replaces washer 379785R1)

1шт.

13

A43566

SEAL,47.09mm ID x 51.16mm OD x 1.75mm Thk

RING - seal (Replaces ring 535091R1)

1шт.

14

S300917

SNAP RING

RING - retaining (Replaces ring 383878R1)

1шт.

16

A43569

BUSHING

SPACER - body (Replaces spacer 5359093R1)

1шт.

17

535095R1

ROTOR ASSY.

ROTOR - body

1шт.

18

535096R1

MANIFOLD

- body

1шт.

19

A43574

COMMUTATOR

COMMUNTATOR - body (Replaces communtator 535097R1)

1шт.

20

A43568

LINK

- drive (Replaces link 538069R1)

1шт.

21

535098R1

BUSHING,77.57mm ID x 82.8mm OD x 39.62mm L

- rotor

1шт.

23

NSS

NOT SOLD SEPARAT

RETAINER - seal, order pump assembly 126893C91

1шт.

24

A45182

COVER

- end (Replaces cover 535101R1)

1шт.

25

A43727

BOLT

- end cover (Replaces bolt 535102R1)

7шт.

26

218-5152

PLUG,Hex Hd, 3/8"-24 ORB

(Replaces plug 379901R91) Hex Hd, 3/8"-24 ORB

1шт.

27

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk (Replaces 379795R1)

1шт.

28

NSS

NOT SOLD SEPARAT

BODY - order pump assembly 126893C91

1шт.

29

79012C1

PACKAGE

SPRING - ball, pre-load (Replaces spring 536360R1)

1шт.

30

F19646

LOCK NUT,13/16"-20, Thin

NUT - hex, 1-3/16 inch NC (Replaces nut 368576R1)

1шт.

31

211-1008

BALL,1/4" Dia

- chrome alloy steel, 1/4 inch, grade 24 (Replaces ball 17008R1)

1шт.

33

211-1008

BALL,1/4" Dia

- chrome alloy steel, 1/4 inch, grade 24 (Replaces ball 17008R1)

1шт.

34

NSS

NOT SOLD SEPARAT

SPOOL - body, order pump assembly 126893C91

1шт.

35

NSS

NOT SOLD SEPARAT

BEARING - needle, order cover assembly 70115C1

1шт.

36

NSS

NOT SOLD SEPARAT

SEAL - spacer, order kit A47038

1шт.

37

NSS

NOT SOLD SEPARAT

RING - shaft seal, order kit A47038

1шт.

38

NSS

NOT SOLD SEPARAT

SEAL - shaft ring, order kit A47038

1шт.

39

NSS

NOT SOLD SEPARAT

SEAL - felt dust, order kit A47038

1шт.

40

A43721

BEARING WASHER,1.466" ID x 1.74" OD x 0.195"

WASHER - wave (Replaces washer 928469C1)

1шт.

41

L36015

PLUG

- pump body (Replaces plug 71085C1)

2шт.

42

238-6009

O-RING,0.07" Thk x 0.208" ID, -9, Cl 6, 90 Duro

(Replaces O-ring 23524R1) -009, 90 Duro, .208" ID x .070" Thk

2шт.

A47038

SEAL KIT,Pump Shaft

KIT - steering pump service

1шт.

405790R91

PACKAGE

KIT - vane and spring

1шт.
