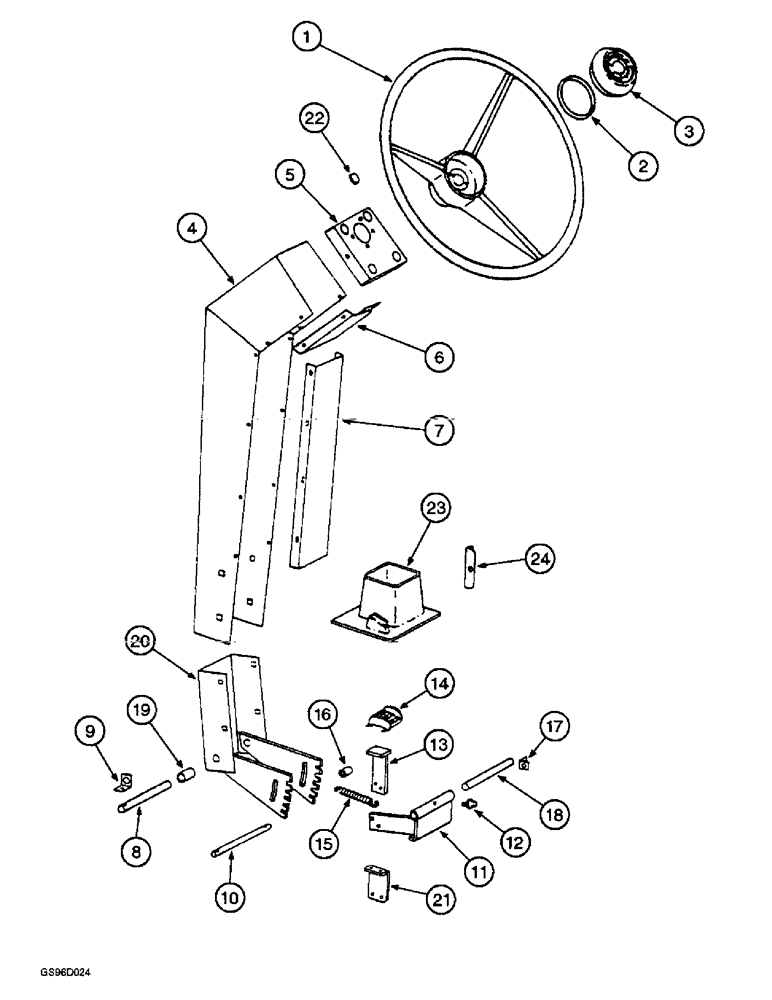

Запчасти Case IH 1400 (5-02) - STEERING SUPPORT AND WHEEL (04) - STEERING

1

385156R1

WHEEL (STEERING)

WHEEL - steering

1шт.

1

385156R1GV

STEERING WHEEL

Value, Steering Wheel

1шт.

2

238-5149

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

(Replaces O-ring 295204R1) -149, 90 Duro, 2.8" ID x .103" Thk

1шт.

3

68837C3

CAP

- wheel (Replaces cap 68837C1)

1шт.

4

215723C3

POST

- steering (Replaces post 215723C2)

1шт.

5

215961C2

SUPPORT

- steering pump

1шт.

6

210163C1

COVER ASSY

COVER - steering post, upper

1шт.

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - self-tapping, hex head, 1/4 NC x 1/2 inch (Replaces screw 552897R1)

4шт.

7

215964C2

CHANNEL

- steering post, lower

1шт.

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - self-tapping, hex head, 1/4 NC x 1/2 inch (Replaces screw 552897R1)

10шт.

8

221518C1

PIN

- steering post, pivot

1шт.

9

1260197C1

CLIP

- shaft

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 180077)

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 120376)

1шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, (Replaces washer 120214) 5/16"

1шт.

432-1216

COTTER PIN,3/16" x 1"

(Replaces pin 18481R1) 3/16" x 1"

1шт.

10

413-572

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

- steering, pivot stop, hex, 5/16 NC x 4-1/2 inch (Replaces pin 215665C1)

1шт.

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch (Replaces washers 120393 and 27309R1)

2шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), (Replaces pin 177923) 1/8" x 3/4"

2шт.

11

193235C2

PIVOT ASSY.

PIVOT - steering release

1шт.

12

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

Special taper (Replaces fitting 19612R91) 90º, 1/4"-28 NPT x .75" lg, Drive

1шт.

13

193239C2

BAR

PEDAL - steering release (Replaces pedal 193238C1)

1шт.

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch (Replaces bolt 68530C1)

2шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC (Replaces nut 120375)

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 120380) 1/4"

2шт.

14

357444C1

PEDAL

PAD - pedal

1шт.

15

400129R1

SPRING

- pedal return

1шт.

16

452800R1

SPACER

- steering pivot pin

1шт.

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch (Replaces bolt 180089)

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 120376)

1шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, (Replaces washer 120214) 5/16"

1шт.

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch (Replaces washer 619855R1)

2шт.

17

165900C1

ANGLE

CLIP - pivot shaft retaining

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 180077)

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 120376)

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 120380) 1/4"

1шт.

18

193246C1

PIN

- steering release, no longer used, order bolt 413-8112 and nut 231-4118

1шт.

432-1216

COTTER PIN,3/16" x 1"

(Replaces pin 18481R1) 3/16" x 1"

1шт.

495-51053

WASHER,13.49mm ID x 25.4mm OD x 1.6mm Thk

- flat, 17/32 x 1 x 1/16 inch (Replaces washer 178373R1)

2шт.

413-8112

BOLT,Hex, 1/2" - 13 x 7", Gr 5

- hex, 1/2 NC x 7 inch

1шт.

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

1шт.

19

460416R1

SPACER

- steering post pivot shaft

1шт.

20

210087C1

SECTOR

- steering post pivot

1шт.

495-81175

WASHER,21/32" x 1" x .120"

- flat, 21/32 x 1 x 7/64 inch (Replaces washer 578274R1)

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch (Replaces bolts 16897R1 and 598802R1)

6шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 120376)

6шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

6шт.

21

193263C1

SUPPORT

- steering pivot stop pin

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 180077)

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 120376)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

2шт.

22

432487

HOLE PLUG BUTTON,11/16"

PLUG - button

1шт.

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch (Replaces bolt 180073)

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

4шт.

23

198075C1

INSULATOR

- steering pedestal

1шт.

24

187581C1

ANGLE

- steering pedestal boot

1шт.
