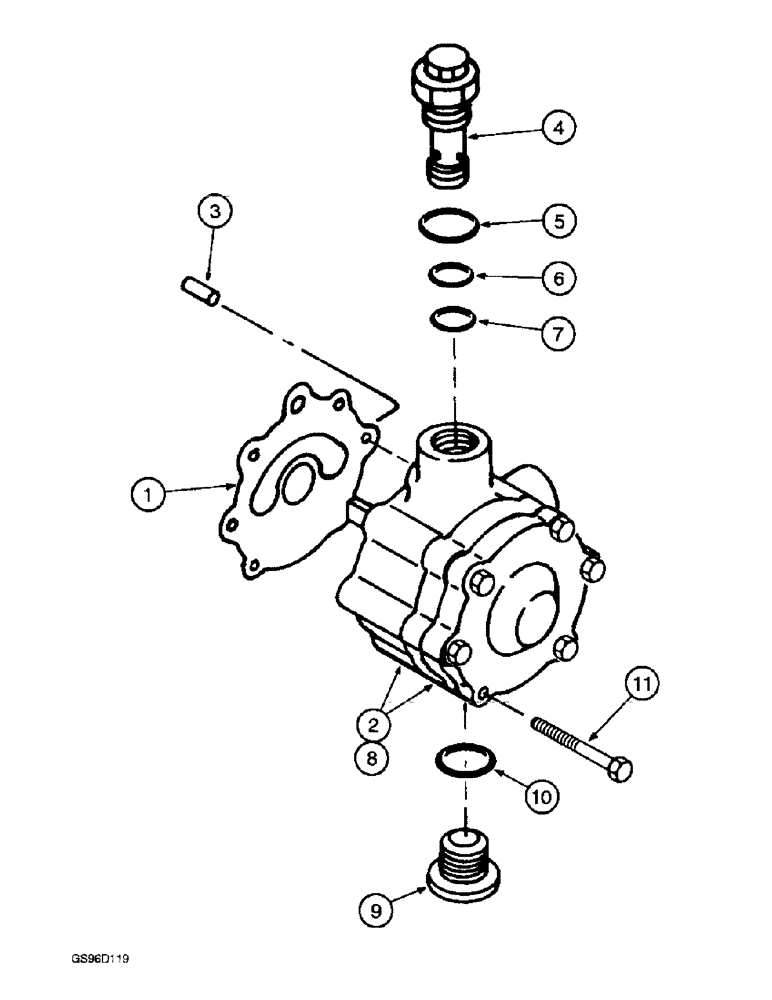

Запчасти Case IH 1400 (6-38) - CHARGE PUMP, HYDROSTATIC PUMP (03) - POWER TRAIN

133761C91

PUMP

ASSEMBLY - charge, used with hydrostatic pump assembly 1330477C4, parts list pages 6-37 and 6-37B

1шт.

1

133760C2

GASKET

- charge pump

1шт.

2

238-5041

O-RING,0.07" Thk x 2.989" ID, -41, Cl 5, 75 Duro

-041, 70 Duro, 2.989" ID x .070" Thk

2шт.

3

140754C1

PIN

- dowel, 5/16 x 5/8 inch

2шт.

4

140771C1

VALVE

ASSEMBLY - relief, low pressure

1шт.

5

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk

1шт.

6

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

1шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - pump, order pump assembly 133761C91

1шт.

9

9672438

PLUG,7/16" - 20 ORB

1шт.

10

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

11

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

4шт.
