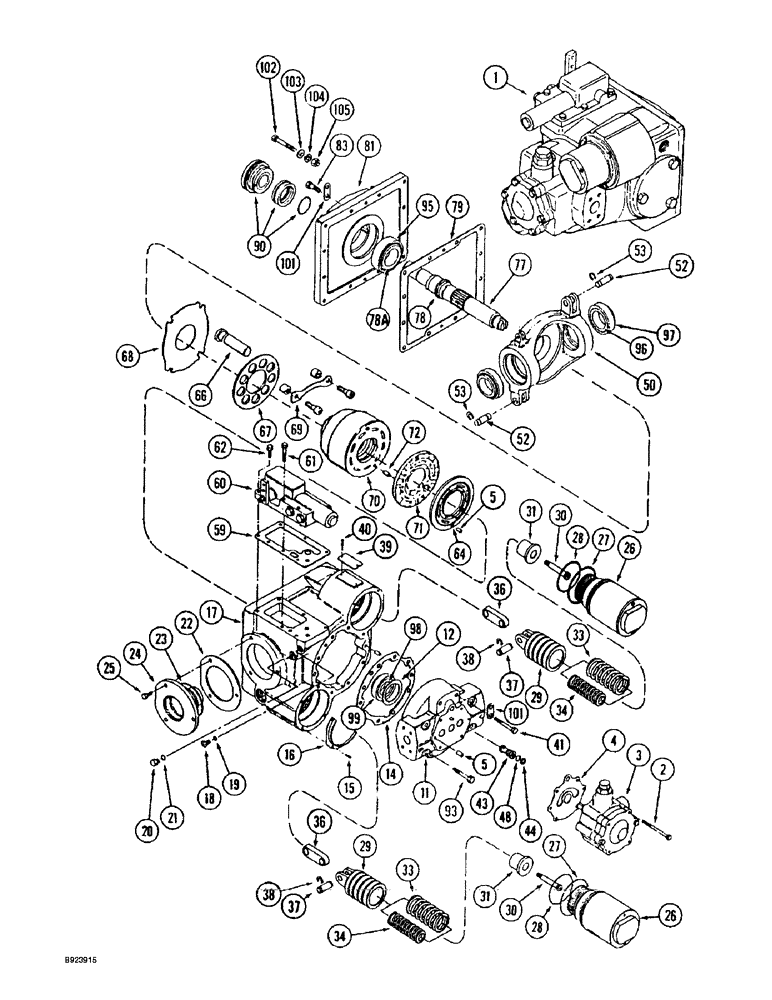

Запчасти Case IH 1400 (6-36) - HYDROSTATIC PUMP, EATON (03) - POWER TRAIN

1330478C1

REMAN-ENG OIL PUMP

PUMP ASSEMBLY - hydrostatic, remanufactured, North American only, no longer available, order pump assembly 1330477C4 below

1шт.

1330479C1

CORE-INJECTION PUMP

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

1

1330477C4

PUMP, HYDROSTATIC

PUMP ASSEMBLY - hydrostatic, new (Replaces pump assemblies 1330477C2 and 1330477C3)(See Note)

1шт.

2

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

4шт.

3

133761C91

PUMP

ASSEMBLY - charge, parts list page 6-39

1шт.

4

133760C2

GASKET

- charge pump

1шт.

5

140754C1

PIN

- dowel, 5/16 x 5/8 inch

5шт.

11

NSS

NOT SOLD SEPARAT

COVER - end pump, order pump assembly 1330477C4

1шт.

12

140783C91

PACKAGE

KIT - shim, end cover

1шт.

14

140756C2

GASKET

- end cover

1шт.

15

461-3086

HEX SOC SCREW,#8 - 32 x 3/8"

BOLT, Hex Soc Hd, #8-32 x 3/8"

6шт.

16

140774C1

RETAINER

- servo piston

2шт.

17

NSS

NOT SOLD SEPARAT

HOUSING - pump, order pump assembly 1330477C4

1шт.

18

278548

PLUG,Hex, 7/16"-20 ORB

1шт.

19

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

20

9672438

PLUG,7/16" - 20 ORB

1шт.

21

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

142386C91

SHIM KIT

KIT - shim, trunnion bearing

1шт.

22

NSS

NOT SOLD SEPARAT

SHIM - 0.002 inch, order kit 142386C91

6шт.

22

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch, order kit 142386C91

4шт.

22

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch, order kit 142386C91

4шт.

22

NSS

NOT SOLD SEPARAT

SHIM - 0.015 inch, order kit 142386C91

4шт.

22

NSS

NOT SOLD SEPARAT

SHIM - 0.025 inch, order kit 142386C91

4шт.

23

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

Trunnion -231, 70 Duro, 2.609" ID x .139" Thk

2шт.

24

NSS

NOT SOLD SEPARAT

TRUNNION - pump, order pump assembly 1330477C4

1шт.

25

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

6шт.

26

140773C1

KIT

SLEEVE - servo

2шт.

27

238-5147

O-RING,0.103" Thk x 2.675" ID, -147, Cl 5, 75 Duro

Servo sleeve -147, 90 Duro, 2.675" ID x .103" Thk

2шт.

28

238-5143

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

End -143, 90 Duro, 2.425" ID x .103" Thk

2шт.

29

1980166C1

PISTON

ASSEMBLY - servo

2шт.

30

NSS

NOT SOLD SEPARAT

SCREW - hex socket, order piston assembly 1980166C1

1шт.

31

NSS

NOT SOLD SEPARAT

RETAINER - servo spring, order piston assembly 1980166C1

1шт.

33

NSS

NOT SOLD SEPARAT

SPRING - servo, heavy, order piston assembly 1980166C1

1шт.

34

NSS

NOT SOLD SEPARAT

SPRING - servo, light, order piston assembly 1980166C1

1шт.

36

NSS

NOT SOLD SEPARAT

LINK - servo, order piston assembly 1980166C1

1шт.

37

140766C1

PIN,14.22mm OD x 39.12mm L

- pivot, link

1шт.

38

28145R1

SNAP RING,#56, Ext

Ring, Snap, , link #56, Ext

2шт.

39

NSS

NOT SOLD SEPARAT

PLATE - identification, order pump assembly 1330477C4

1шт.

40

NSS

NOT SOLD SEPARAT

SCREW - drive, identification plate, order pump assembly 1330477C4

2шт.

41

897520R1

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 8

replaces bolt 24586R1 Hex, 3/8"-16 x 2 3/4", G8

6шт.

43

140769C1

CHECK VALVE

VALVE ASSEMBLY - check

2шт.

44

140770C1

RING

- backup

2шт.

48

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

2шт.

50

1980163C1

HOUSING

PLATE - swash

1шт.

52

140766C1

PIN,14.22mm OD x 39.12mm L

- pivot, servo linkage

2шт.

53

28145R1

SNAP RING,#56, Ext

Ring, Snap, , servo linkage pin #56, Ext

4шт.

59

133756C1

GASKET

- control valve

1шт.

60

133755C94

VALVE

ASSEMBLY - control, parts list page 6-41

1шт.

61

326-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 8

2шт.

62

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

64

1980165C1

PLATE

- valve, pump

1шт.

1980164C1

KIT

- rotating, cylinder

1шт.

66

NSS

NOT SOLD SEPARAT

PISTON - cylinder block, order kit 1980164C1

9шт.

67

NSS

NOT SOLD SEPARAT

PLATE - retaining, order kit 1980164C1

1шт.

68

NSS

NOT SOLD SEPARAT

PLATE - retaining, clear, order kit 1980164C1

1шт.

69

NSS

NOT SOLD SEPARAT

KIT - hold-down, order kit 1980164C1

1шт.

70

NSS

NOT SOLD SEPARAT

BARREL - cylinder, order kit 1980164C1

1шт.

71

NSS

NOT SOLD SEPARAT

PLATE - bearing, order kit 1980164C1

1шт.

72

140754C1

PIN

- dowel, 5/16 x 5/8 inch

7шт.

77

1980161C1

SHAFT

- input

1шт.

78

NSS

NOT SOLD SEPARAT

RING - snap, order input shaft 1980161C1

1шт.

78a

92742C1

TAPERED BEARING

BEARING - tapered roller, 1-7/8 inch ID

1шт.

79

142414C1

GASKET

- mounting flange

1шт.

81

NSS

NOT SOLD SEPARAT

FLANGE - mounting, order pump assembly

1шт.

83

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

12шт.

90

1346205C1

SEAL KIT

SEAL - shaft, three-piece

1шт.

93

26-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

2шт.

93

26-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

2шт.

95

317706C1

BEARING, CUP,88.925 mm OD x 25.6 mm

CUP - tapered roller bearing, 3-1/2 inch OD, input shaft

1шт.

96

399933C91

ROLLER BEARING,45.24mm ID x 19.81mm W

BEARING - tapered roller, 1-25/32 inch ID, cone, trunnion (Replaces bearing 400987C1)

2шт.

97

399934C1

BEARING CUP,73.43mm OD x 15.75mm W

CUP - tapered roller bearing, 2-57/64 inch OD

1шт.

98

140758C91

ROLLER BEARING,0.88" ID x 2.25" OD x 0.6875"

- tapered roller, 5/8 inch ID

1шт.

99

140759C1

BEARING CUP

CUP - tapered roller bearing, 2-1/4 inch OD, output shaft

1шт.

101

NSS

NOT SOLD SEPARAT

STRAP - shipping, shown for reference only

2шт.

102

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

4шт.

103

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

104

283856C1

WASHER

- flat, 17/32 x 1 x 3/16 inch

4шт.

105

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.
