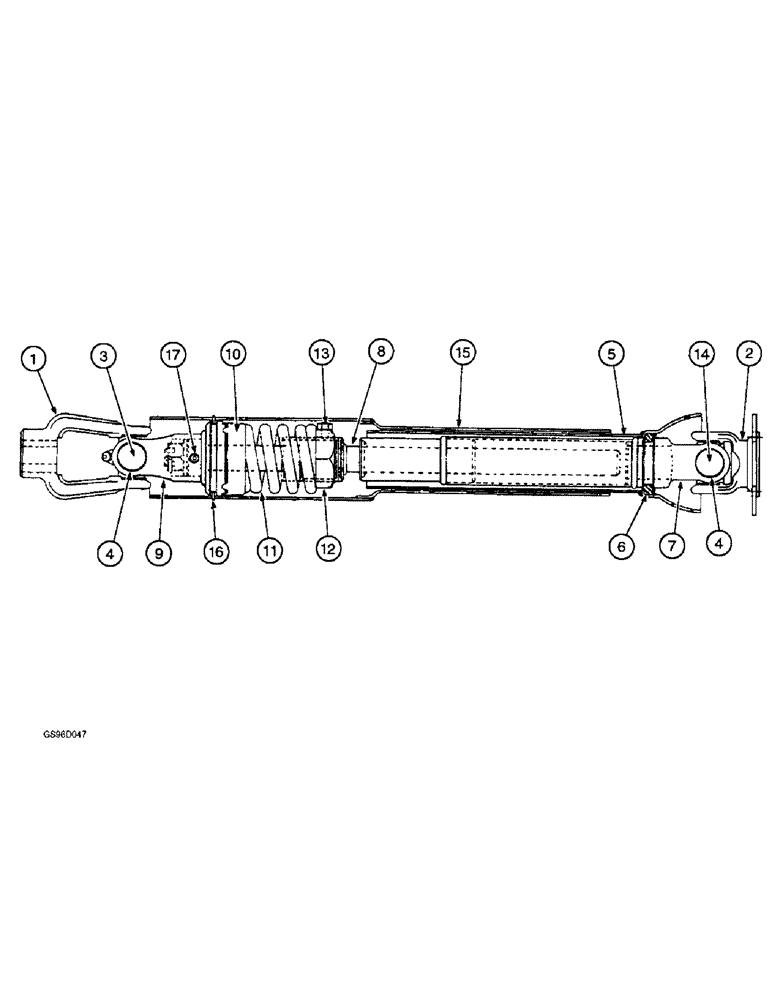

Запчасти Case IH 1400 (6-34) - UNIT DRIVE JOINT (03) - POWER TRAIN

217574C91

JOINT

ASSEMBLY - unit drive

1шт.

1

222429C1

YOKE

- power take off

1шт.

2

H245902

FORK

YOKE - unit drive (Replaces yoke 222430R1)

1шт.

3

222431C91

BEARING ASSY

- bearing cross

1шт.

4

222432C1

RING

- snap

8шт.

5

222433C1

SHIELD

- inner

1шт.

6

222434C1

BEARING ASSY,1.51" ID x 2.12" OD x 0.308"

BUSHING - nylon shield

1шт.

7

222435C1

YOKE

SLEEVE - yoke

1шт.

8

222436C1

SHAFT

- unit drive

1шт.

9

222437C1

YOKE

CLUTCH - yoke

1шт.

495-81175

WASHER,21/32" x 1" x .120"

- flat, 21/32 x 1 x 7/64 inch (Replaces washer 141080H)

1шт.

425-1210

SLOTTED NUT,Hex, 5/8"-11, G5

(Replaces nut 125158) Hex, 5/8"-11, G5

1шт.

10

222438C1

CLUTCH

- slip

1шт.

11

222441C1

SPRING

- slip clutch

1шт.

12

222442C1

NUT

- tension adjustment

1шт.

13

135997C1

SET SCREW,Hdls Hex Skt, 1/4" - 28 x 1/2", Knurled Cup Pt

- set, 1/4 inch NF

1шт.

425-154

JAM NUT,Jam, 1/4"-28, G5

- hex jam, 1/4 inch NF (Replaces nuts 120613 and 25930R1)

1шт.

14

222444C91

KIT

- bearing cross

1шт.

15

222446C1

TUBE

SHIELD - outer

1шт.

16

222447C1

RING

- shield retainer

1шт.

17

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 NF taper x 11/16 inch (Replaces fitting 16982R91)

1шт.
