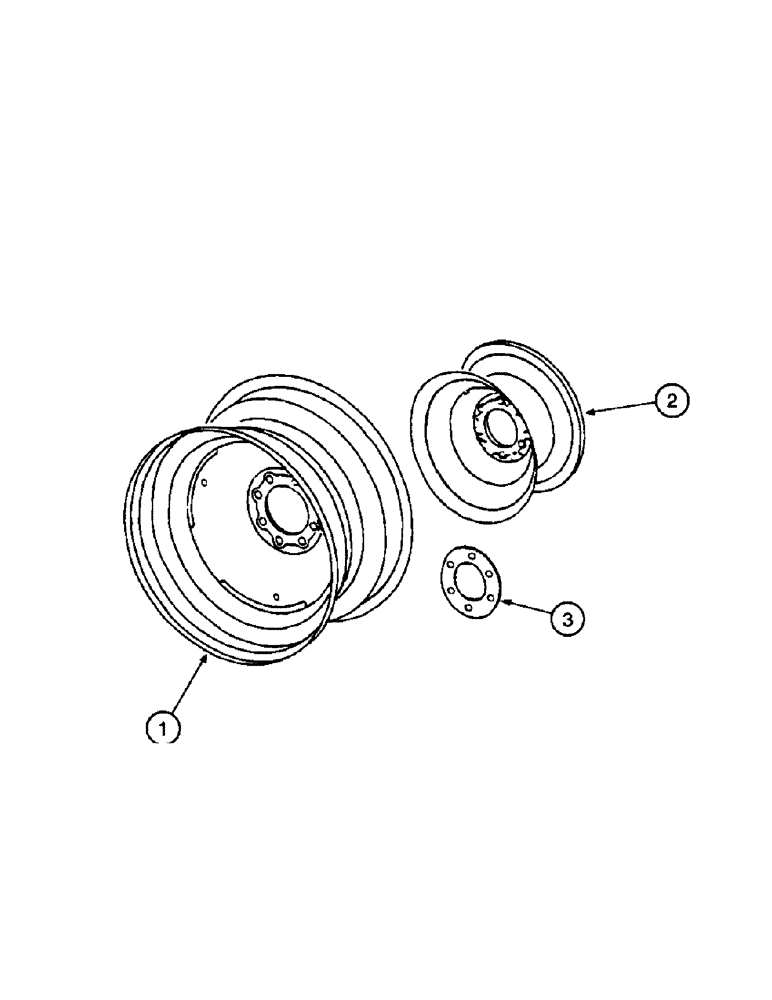

Запчасти Case IH 1400 (6-32) - DRIVE WHEELS (03) - POWER TRAIN

1

219907C1

WHEEL

- drive, for 18.4 x 26 6-ply tubeless tire, optional with wheel 569366R92

1шт.

1

569366R92

WHEEL ASSY.

WHEEL - drive, for 24L x 26 10-ply tubeless tire, optional with wheel 219907C1

1шт.

429-1110

NUT,5/8"-18, G8

(Replaces nut 25676R1) 5/8"-18, G8

16шт.

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

- flat, 21/32 x 1-1/2 x 3/16 inch, hardened (Replaces washer 25556R1)

16шт.

A20058

VALVE STEM

- tubeless (Replaces valve 27549R1)

1шт.

2

1266057C91

WHEEL

- guide, for 11L x 16 6-ply tubeless tire

1шт.

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

- flat, 21/32 x 1-1/2 x 3/16 inch, hardened (Replaces washer 25556R1)

10шт.

396-21059

WASHER,0.59" ID x 1.19" OD x 0.13" Thk

- flat, 19/32 x 1-3/16 x 3/16 inch, hardened (Replaces washer 26610R1)

2шт.

387897R91

VALVE STEM

VALVE - tire

1шт.

417194C1

PLUG

- tire

1шт.

3

1260667C1

RING

- wheel, used with serial numbers 500 through 1063

1шт.
