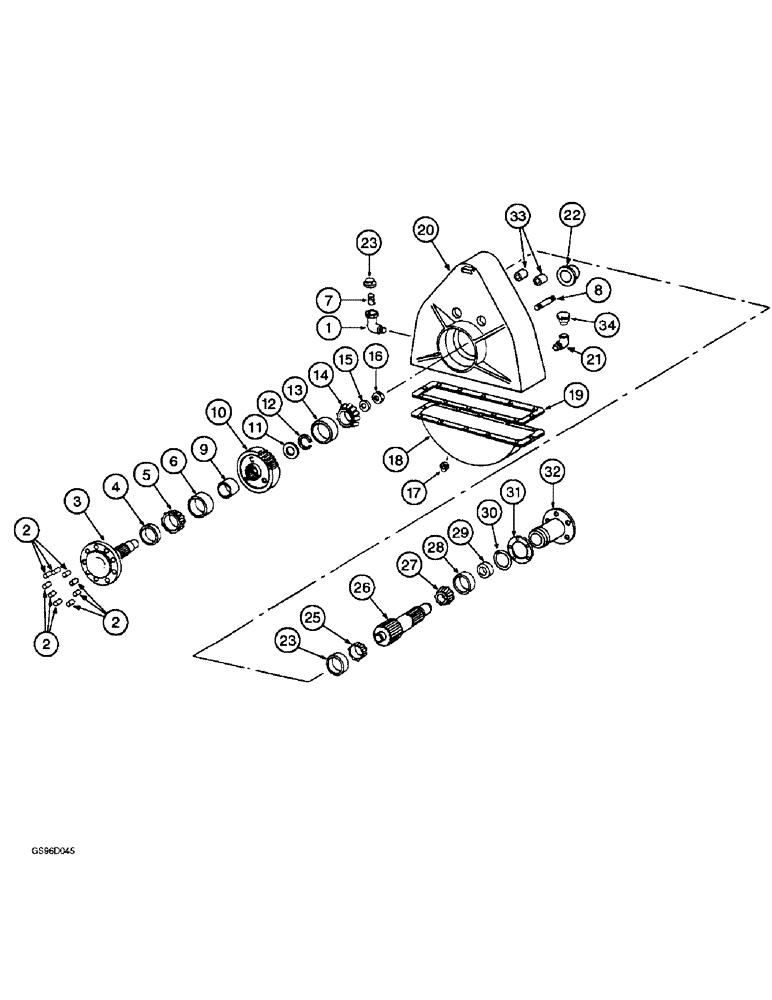

Запчасти Case IH 1400 (6-30) - FINAL DRIVE (03) - POWER TRAIN

1

141621

ELBOW,90 Degree, 3/4" NPT Street

- street, 90 degree x 3/4 inch NPT

1шт.

2

566206R2

BOLT,5/8" - 18 x 2.38", Class 8

- wheel

8шт.

554480R1

WHEEL NUT

- drive wheel bolt

8шт.

3

533718R1

SHAFT

- final drive

1шт.

4

404489R91

OIL SEAL,83.57mm ID x 127.1mm OD x 11.89mm Thk

- oil, outer bearing

1шт.

5

ST2157

TAPERED BEARING,3.035" ID x 4.8126" OD x 1.3"

BEARING - outer cone

1шт.

6

ST985

CUP

BEARING - outer cup

1шт.

7

221-211

PIPE,Nipple, 3/4" NPT x 1 3/8"

NIPPLE - straight, 3/4 PT x 1-3/8 inch (Replaces nipple 192470)

1шт.

8

441553R2

STUD

- tapping, 5/8 NC x 2-3/4 inch (Replaces stud 441553R1)

8шт.

9

533719R1

SPACER

- outer bearing

1шт.

10

533721R1

GEAR

- final drive

1шт.

11

533722R1

SPACER

- inner bearing

1шт.

12

316222R1

RING

- snap, retainer

1шт.

13

A75210

BEARING CUP,3.5433" OD x 0.9055"

BEARING - inner cup (Replaces bearing 533727R1)

1шт.

14

A75211

ROLLER BEARING,1.9685" ID x 1.1024"

BEARING - inner cone (Replaces bearing 533726R91)

1шт.

15

533730R1

WASHER

- final drive shaft

1шт.

16

528935R1

NUT

- final drive shaft, threaded, 1-1/2 inch

1шт.

432-832

COTTER PIN,1/8" x 2"

(Replaces pin 125637) 1/8" x 2"

1шт.

17

217-442

PLUG,3/4" - 14

- hex socket, 3/4 inch PT (Replaces plugs 444592 and 444595)

1шт.

18

587078R91

PAN ASSY.

PAN - final drive

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Replaces bolt 179837) Hex, 3/8"-16 x 3/4", G5, Full Thd

12шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

12шт.

19

587665R1

GASKET - final drive housing

1шт.

20

121677C1

HOUSING

- final drive, left-hand

1шт.

20

121678C2

HOUSING

- final drive, right-hand

1шт.

95-51066

WASHER,9/16" x 1 1/4" x .1"

- flat, 21/32 x 1-1/4 x 3/32 inch (Replaces washer 12258R1)

4шт.

21

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

Street (Replaces elbow 9409931) 90º, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

1шт.

22

533716R1

CAP

- final drive shaft inner bearing

1шт.

23

119102

CAP,3/4" NPT

- pipe

1шт.

24

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

- Outer

1шт.

25

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING - pinion shaft outer cone

1шт.

26

214597C1

SHAFT

- final drive pinion, 13 tooth

1шт.

27

56934D

ROLLER BEARING,2.1663" ID x 3.8125" OD x 0.8268"

- pinion shaft inner cone

1шт.

28

105497H

BEARING CUP,96.85mm OD x 15.77mm W

BEARING - pinion shaft inner cup

1шт.

29

380186R92

OIL SEAL

- brake adapter oil

1шт.

30

238-5238

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

Housing adapter (Replaces O-ring 610411C1) -238, 70 Duro, 3.484" ID x .139" Thk

1шт.

31

376467R1

SHIM

- brake housing adapter, 0.007 inch

1шт.

31

405627R1

SHIM

- brake housing adapter, 0.003 inch

1шт.

32

210190C1

ADAPTER

- brake pilot

1шт.

26315R1

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 8

- hex, 7/16 NC x 1-1/8 inch (Replaces bolt 28138R1)

5шт.

33

177337C1

SPACER

SLEEVE - final drive housing

4шт.

425-1010

NUT,5/8"-11, G5

(Replaces nut 124589) 5/8"-11, G5

16шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces washer 121574) 5/8"

16шт.

95-51066

WASHER,9/16" x 1 1/4" x .1"

- flat, 21/32 x 1-1/4 x 3/32 inch (Replaces washer 12258R1)

4шт.

34

110891H

BREATHER,1/8"-27 NPT, Short, w/washer

FITTING - lube, 1/8 inch PT, includes felt washer

1шт.
