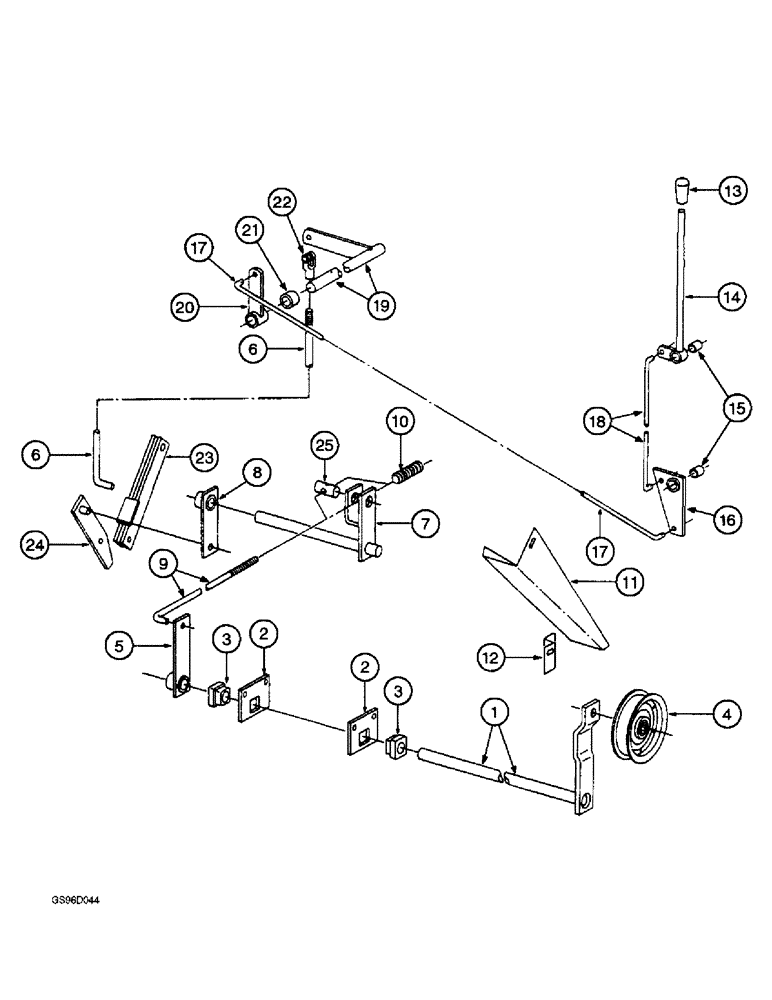

Запчасти Case IH 1400 (6-28) - AUXILIARY DRIVE (03) - POWER TRAIN

1

219633C1

SHAFT

ROCKSHAFT - nut drive idler

1шт.

495-81060

WASHER,23.01mm ID x 44.45mm OD x 3.4mm Thk

- flat, 29/32 x 1-3/4 x 7/64 inch (Replaces washer 21715R1)

1шт.

2

217669C1

SUPPORT

- bearing

2шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 180122)

4шт.

231-5146

FLANGE NUT,3/8"-16

(Replaces nut 482256R1) Flg, USR, 3/8"-16

4шт.

3

668999R1

BUSHING

- jackshaft flange

2шт.

4

219617C1

PULLEY

- idler, 5-3/4 inch (146 mm) diameter

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch (Replaces bolt 271723)

1шт.

425-1010

NUT,5/8"-11, G5

(Replaces nut 124589) 5/8"-11, G5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces washer 121574) 5/8"

1шт.

5

217672C1

ARM

- idler shaft

1шт.

38-32020

PIN,5/16" x 1 1/4", Coiled

(replaces pin 19790R1) 5/16" x 1 1/4", Coiled

1шт.

6

217667C1

ROD

- drive lower control

1шт.

7

219637C1

ROCKSHAFT

- drive

1шт.

495-81060

WASHER,23.01mm ID x 44.45mm OD x 3.4mm Thk

- flat, 29/32 x 1-3/4 x 7/64 inch (Replaces washer 21715R1)

4шт.

32-1620

COTTER PIN,1/4" x 1 1/4"

PIN, SPLIT (COTTER), (Replaces pin 103419) 1/4" x 1 1/4"

1шт.

8

219635C1

BAR

- drive

1шт.

38-32020

PIN,5/16" x 1 1/4", Coiled

(replaces pin 19790R1) 5/16" x 1 1/4", Coiled

1шт.

9

217671C1

ROD

- control short

1шт.

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), (Replaces pin 103407) 3/16" x 1"

1шт.

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC (Replaces nut 22816R1)

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces nut 120378) 1/2"-13, G5

1шт.

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") (Replaces washer 120396) 1/2", SAE

1шт.

10

53998V

SPRING

- idler

1шт.

11

219609C1

SUPPORT

- rockshaft

1шт.

12

219610C1

SUPPORT

BRACKET - rockshaft

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

231-5146

FLANGE NUT,3/8"-16

(Replaces nut 482256R1) Flg, USR, 3/8"-16

2шт.

13

221003C1

KNOB

- engage

1шт.

14

220697C91

LEVER

CONTROL - unit engage

1шт.

15

568921R1

BUSHING,15.9mm ID x 19.02mm OD x 22.23mm L

- lever hub

2шт.

156064C1

SPACER

BUSHING - lever hub

1шт.

495-81177

WASHER,21/32" x 1" x .030"

- flat, 21/32 x 1 x 1/32 inch (Replaces washer 22258R1)

1шт.

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch (Replaces 180128)

1шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

1шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

1шт.

16

220694C91

ARM

- unit lever front

1шт.

17

220692C1

ROD - fan control center

1шт.

432-616

COTTER PIN,3/32" x 1"

(Replaces pin 121222) 3/32" x 1"

2шт.

18

220693C1

ROD

- drive upper

1шт.

432-616

COTTER PIN,3/32" x 1"

(Replaces pin 121222) 3/32" x 1"

2шт.

19

219900C1

ROD

- fan control

1шт.

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4" (Replaces pin 120123)

2шт.

20

219903C1

ARM

- fan rear

1шт.

21

50061K

SPACER,1" Tube x 3/4"

- 1 x 25/32 x 3/4 inch

2шт.

38-11620

PIN,1/4" x 1 1/4", Slotted

(Replaces 576485R1) 1/4" x 1 1/4", Slotted

1шт.

495-11081

WASHER,3/4", SAE

(Replaces washer 131017) 3/4", SAE

2шт.

22

213-128

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS, ADJUSTABLE, (Replaces clevis 144256) 1/2"-20 x 3"

1шт.

427-8136

CLEVIS PIN,1/2" x 1.360"

PIN - clevis, 1/2 x 1-1/8 inch, hardened (Replaces pin 138086)

1шт.

432-816

COTTER PIN,1/8" x 1"

(Replaces pin 137185) 1/8" x 1"

1шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), (Replaces pin 103384) 1/8" x 3/4"

1шт.

425-158

JAM NUT,Jam, 1/2"-20, G5

(Replaces nut 124934) Jam, 1/2"-20, G5

1шт.

23

217656C1

LEVER

- long driver

1шт.

22635R1

HEADED PIN,1/2" x 1 1/4"

PIN, HEADED, 1/2 x 1 1/4 inch

1шт.

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), (Replaces pin 103407) 3/16" x 1"

1шт.

24

217658C1

ARM

LEVER - main driver

1шт.

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), (Replaces pin 103407) 3/16" x 1"

1шт.

495-81163

WASHER,17/32" x 1 1/2" x .120"

- flat, 17/32 x 1-1/2 x 7/64 inch (Replaces washer 460908R1)

1шт.

25

214567C1

PIN

- rod pivot

1шт.
