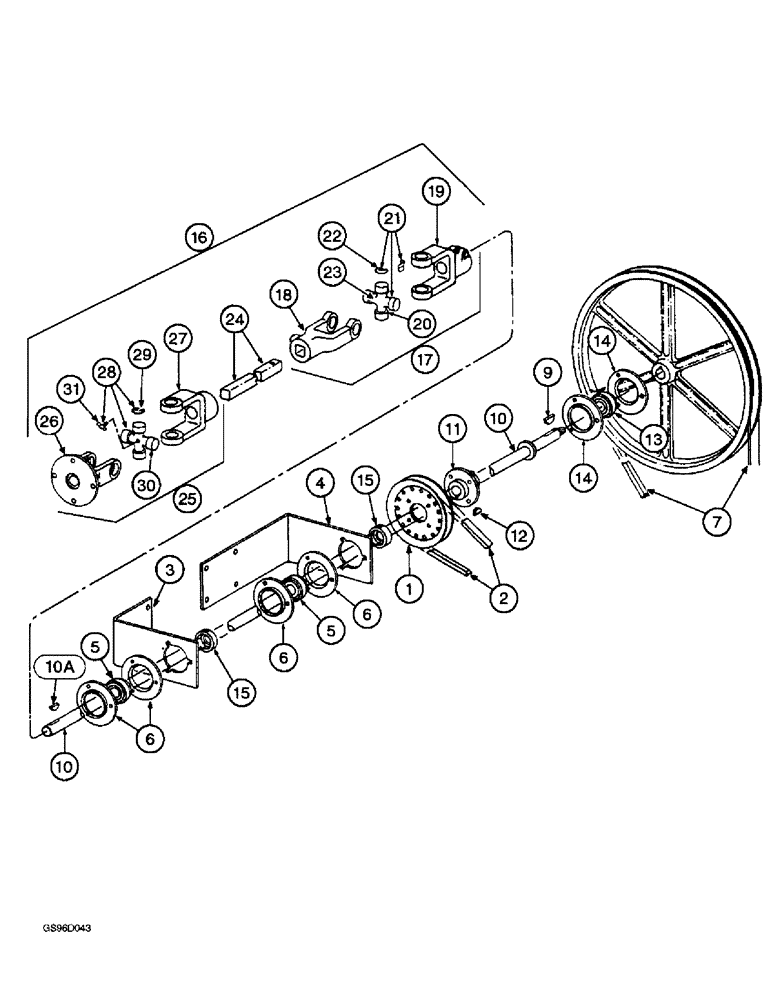

Запчасти Case IH 1400 (6-26) - UNIT MAIN DRIVE (03) - POWER TRAIN

1

222420C1

PULLEY

- boll auger main drive

1шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch (Replaces bolt 180079)

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 120376)

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

4шт.

2

222203C1

BELT,16.00 mm W x 1876.20 mm L

V-BELT , Boll auger main drive 16.00 mm W x 1876.20 mm L

1шт.

3

222204C1

ANGLE

SUPPORT - angle inner

1шт.

4

222205C1

SUPPORT

- angle outer

1шт.

5

617667R92

BALL BEARING,31.75mm ID x 62mm OD x 18mm W

- ball

2шт.

6

662649R1

RETAINER

FLANGE - bearing, if used

4шт.

6

H747188

FLANGED BEARING,112.73 mm OD x 8.74 mm

FLANGE - bearing, if used (Replaces flange 565631R1)

4шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch (Replaces bolts 17351R1 and 495967R1)

6шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

6шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

6шт.

7

217636C1

BELT,2901.80 mm L, 2 Ribs

Unit main drive 2901.80 mm L, 2 Ribs

1шт.

8

217637C1

PULLEY

- unit main drive

1шт.

9

126-147

WOODRUFF KEY,#28, 5/16" x 2 1/8", HT

(Replaces key 118001) #28, 5/16" x 2 1/8", HT

1шт.

896-12030

WASHER,33mm ID x 56mm OD x 5mm Thk

- flat, 1-9/32 x 2-13/64 x 3/16 inch, hardened (Replaces washer 30181R1)

2шт.

10

217654C2

SHAFT ASSY.

SHAFT - unit main drive

1шт.

495-21081

WASHER,3/4"

- flat, 13/16 x 2 x 9/64 inch (Replaces washer 131000)

1шт.

131-83

NUT,3/4"-10

NUT - lock, 3/4 inch NC (Replaces nut 19766R1)

1шт.

10a

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Gear (Replaces key 124557) #C, 5/16" x 1 1/8", HT

1шт.

11

222202C1

HUB

- boll box auger drive

1шт.

12

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

(Replaces key 124554) #B, 5/16" x 1", HT

1шт.

38-32432

PIN,3/8" x 2", Coiled

(replaces pin 577247R1) 3/8" x 2", Coiled

1шт.

13

617667R92

BALL BEARING,31.75mm ID x 62mm OD x 18mm W

- ball

1шт.

14

H747188

FLANGED BEARING,112.73 mm OD x 8.74 mm

FLANGE - bearing, if used (Replaces flange 565631R1)

2шт.

14

662649R1

RETAINER

FLANGE - bearing, if used

2шт.

15

557995R11

COLLAR

- includes set screw

2шт.

16

217687C91

JOINT

ASSEMBLY - universal

1шт.

17

222425C91

JOINT

SLIP ASSEMBLY - inner half, no longer available as a unit, order components

1шт.

18

1322919C2

YOKE

- clamp pin (Replaces yoke 222427C1)

1шт.

19

222426C1

YOKE

- clamp

1шт.

20

667497R91

BEARING ASSY

CUP - bearing

4шт.

21

753772

KIT

- bearing cross (Replaces kit 667496R91)

1шт.

22

667498R1

RING

- snap

4шт.

23

NSS

NOT SOLD SEPARAT

FITTING - bearing cross, order kit 480613R91

1шт.

24

222428C1

SHAFT

- yoke

1шт.

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch (Replaces bolt 180137)

2шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, (Replaces nut 21622R1) 3/8"-16, GB

2шт.

25

222422C91

JOINT

SLIP ASSEMBLY - outer half, no longer available as a unit, order components

1шт.

26

222423C1

YOKE

- flange

1шт.

27

222424C1

YOKE

- slip

1шт.

28

845198

KIT

- bearing cross (Replaces kits 480613R91 and 660116R91)

4шт.

29

495962R1

RING

- snap

4шт.

30

480614R91

CUP - bearing

4шт.

31

NSS

NOT SOLD SEPARAT

FITTING - bearing cross, order kit 480613R91

1шт.
