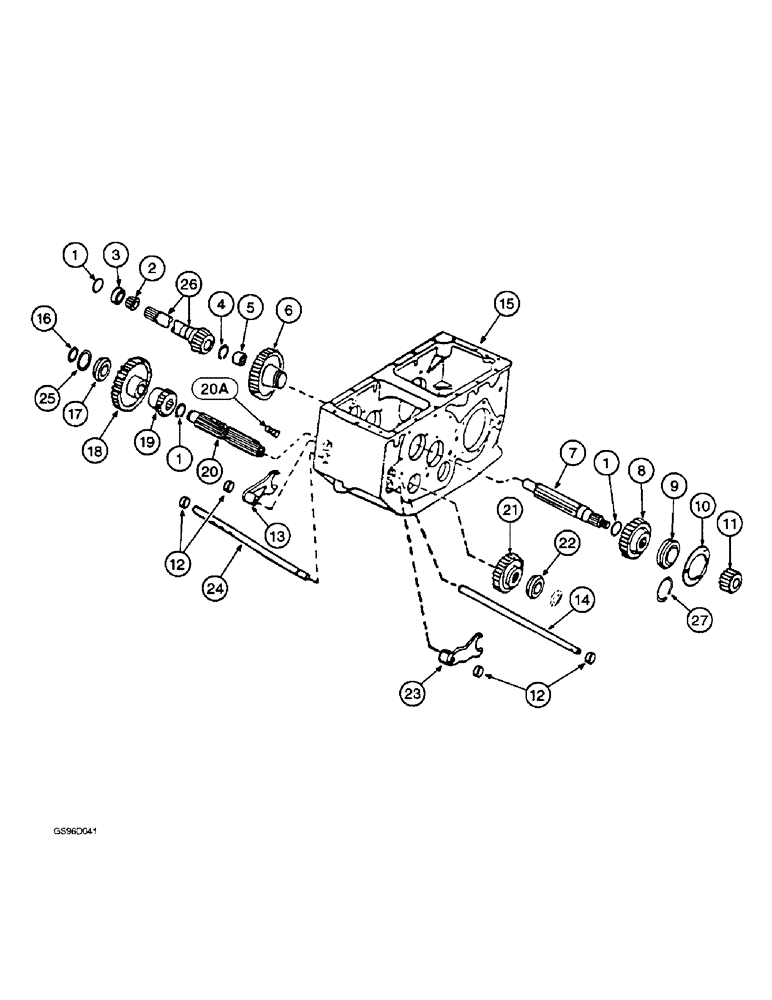

Запчасти Case IH 1400 (6-22) - TRANSMISSION, INPUT SHAFT, GEARS AND SHIFTER RAILS (03) - POWER TRAIN

1

A21619

CIRCLIP

RING - snap, input shaft (Replaces ring 359141R1)

3шт.

2

671029R91

CONE

BEARING - input shaft inner cone, order bearing set 671028R91

1шт.

3

671030R1

CUP

BEARING - input shaft inner cup, order bearing set 671028R91

1шт.

4

A21619

CIRCLIP

RING - snap, input shaft (Replaces ring 359141R1)

1шт.

5

574940R91

NEEDLE BEARING,Needle, 25.39mm ID x 33.35mm OD x 25.4mm W

BEARING - input pinion shaft

1шт.

6

574932R1

GEAR

- first and third sliding, 44 tooth and 18 tooth

1шт.

7

382945R1

SHAFT

- input drive

1шт.

382879R1

NUT

- input drive shaft

1шт.

382900R1

LOCK WASHER

- lock, input drive shaft

1шт.

382901R1

LOCK WASHER,26.16mm ID x 47.8mm OD x 3.18mm Thk

- input drive shaft

1шт.

8

574927R2

GEAR

- second speed drive, 28 tooth

1шт.

9

379441R91

ROLLER BEARING,1.378" ID x 2.689" OD x 0.6693"

- input shaft, right-hand

1шт.

10

379442R1

RETAINER

- input shaft right-hand bearing

1шт.

27970R1

BOLT,Hex, 5/16" - 18 x 7/8", Gr 8

- hex, 5/16 NC x 7/8 inch

3шт.

11

405437R1

GEAR

- change drive pinion, 30 tooth

1шт.

12

G10450

OIL SEAL,19.05mm ID x 31.85mm OD x 6.35mm Thk

- shifter rail oil (Replaces seal 549712R1)

4шт.

13

574905R1

FORK

- first and third gear shifter

1шт.

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex jam, 3/8 inch NF (Replaces nuts 114494 and 124925)

1шт.

573985R1

SET SCREW,Sq Hd, 3/8"-24 x 1"

SCREW - set, shifter rail fork

1шт.

14

184000C1

THREADED ROD

RAIL - first and third gear shifter

1шт.

15

57146C1

CASE

- transmission

1шт.

413-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

- hex, 1/2 NC x 6 inch (Replaces bolt 20546R1)

2шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

(Replaces bolt 180177) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 120384) 1/2"

4шт.

17

ST212

BALL BEARING,30mm ID x 62mm OD x 16mm W

BEARING - transmission main shaft

1шт.

18

574929R2

GEAR

- transmission input, 46 tooth

1шт.

19

574930R1

SHAFT

PINION - first speed drive, 20 tooth

1шт.

20

395908R11

SHAFT

ASSEMBLY - transmission main

1шт.

20a

374639R1

COUPLING

- transmission main drive

1шт.

21

574931R2

GEAR

- second and reverse speed drive, 28 tooth

1шт.

22

ST212

BALL BEARING,30mm ID x 62mm OD x 16mm W

BEARING - transmission main shaft

1шт.

23

574904R1

FORK

- reverse and second speed shifter

1шт.

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex jam, 3/8 inch NF (Replaces nuts 114494 and 124925)

1шт.

573985R1

SET SCREW,Sq Hd, 3/8"-24 x 1"

SCREW - set, shifter fork

1шт.

24

184001C1

THREADED ROD

RAIL - second gear shifter

1шт.

25

379433R1

RING

- transmission case seal

1шт.

26

57147C2

SHAFT

- input pinion, 18 tooth

1шт.

27

ST418

RING

- snap, input shaft bearing

1шт.
