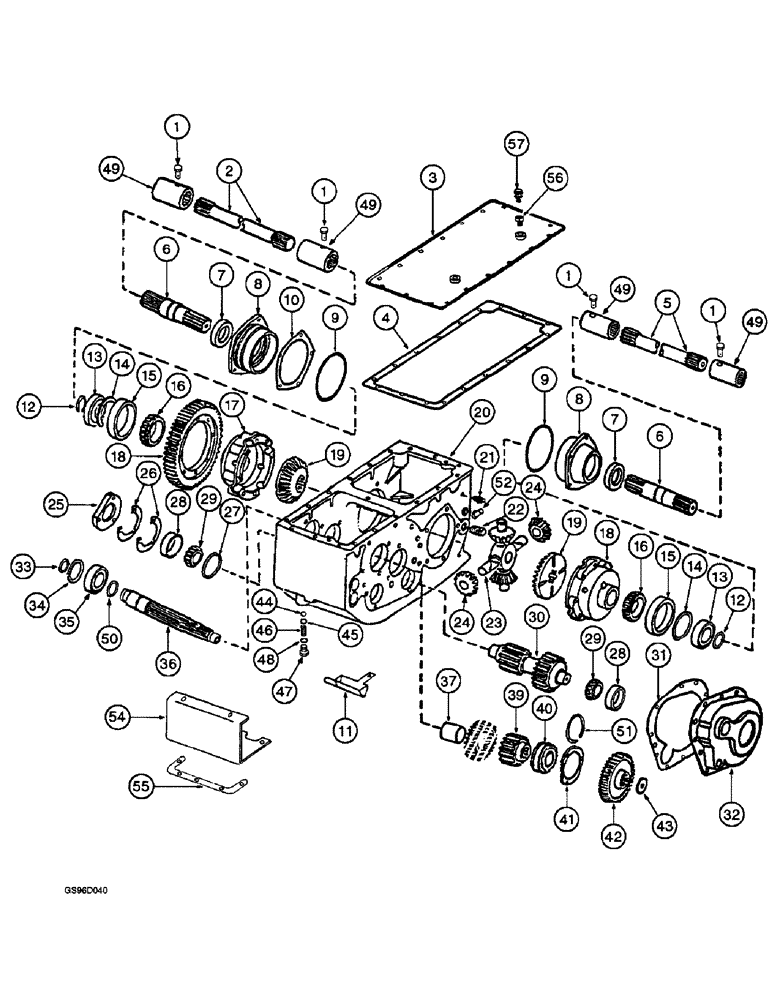

Запчасти Case IH 1400 (6-20) - TRANSMISSION, HOUSING AND DIFFERENTIAL (03) - POWER TRAIN

1

22957R1

PIN - slotted spring, 1/4 x 2-1/2 inch

4шт.

2

674687R1

SHAFT

- axle drive, left-hand

1шт.

3

184172C1

COVER

- transmission case

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Replaces bolt 179837) Hex, 3/8"-16 x 3/4", G5, Full Thd

8шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER - lock, external tooth, 3/8 inch (Replaces washer 114606)

8шт.

4

573998R2

GASKET

- transmission case cover

1шт.

5

673075R1

SHAFT

- axle drive, right-hand

1шт.

6

379435R1

SHAFT

- differential

2шт.

7

380182R91

OIL SEAL,42.42mm ID x 62.05mm OD x 8.41mm Thk

- differential cage bearing

2шт.

8

379445R1

BEARING ASSY,61.9 mm ID x 76.2 mm

- differential bearing

2шт.

26311R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

- hex, 3/8 NC x 1-1/8 inch (Replaces bolt 27347R1)

10шт.

9

238-5247

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

(Replaces O-ring 610412C1) -247, 70 Duro, 4.609" ID x .139" Thk

2шт.

10

573976R1

DISC

SHIM - differential bearing cage, light

1шт.

10

573977R1

SHIM

- differential bearing cage, medium

1шт.

10

573978R1

SHIM

- differential bearing cage, heavy

1шт.

11

402838R1

TROUGH

- oil

1шт.

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

- machine, pan Phillips, 1/4 NC x 5/8 inch (Replaces screw 20043R1)

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 103319) 1/4"

1шт.

495-81252

WASHER,#12

(Flat, 1/4" x 9/16" x 1/16") (Replaces washer 106260) #12

1шт.

12

101-11177

SNAP RING,#177, 1.657", Ext

RING - snap, differential shaft (Replaces ring 379511R1)

2шт.

13

ST560

BEARING, BALL,45 mm ID x 75 mm OD x 16 mm

BEARING - differential cage

2шт.

14

379485R1

RING

- snap, differential bearing cage

1шт.

15

29214H

BEARING CUP,110mm OD x 18.82mm W

BEARING - differential roller cup (Replaces bearing 13390D)

2шт.

16

ST2026

BEARING ASSY,63.5mm ID x 21.996mm

BEARING - differential roller cone

2шт.

17

382906R93

CASE

KIT - differential case and gear

1шт.

18

NSS

NOT SOLD SEPARAT

GEAR - differential drive, 57 tooth, order kit 382906R93

1шт.

19

NSS

NOT SOLD SEPARAT

GEAR - differential bevel, 28 tooth, order kit 382906R93

1шт.

NSS

NOT SOLD SEPARAT

CASE - differential left-hand, order kit 382906R93

1шт.

NSS

NOT SOLD SEPARAT

CASE - differential right-hand, order kit 382906R93

1шт.

413-756

BOLT,Hex, 7/16" - 14 x 3-1/2", Gr 5

- hex, 7/16 NC x 3-1/2 inch (Replaces bolt 179872)

1шт.

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC (Replaces nut 271500)

1шт.

395636R2

BOLT,1/2" - 20 x 3.87"

- differential (Replaces bolt 382911R2)

8шт.

29-218

NUT,1/2"-20, G8, Hvy

- hex, 1/2 inch NF, grade 8 (Replaces nut 381368R1)

8шт.

20

57146C1

CASE

- transmission

1шт.

413-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

- hex, 1/2 NC x 6 inch (Replaces bolt 20546R1)

2шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

(Replaces bolt 180177) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 120384) 1/2"

4шт.

21

219-434

BREATHER,1/8" - 27 NPT, Short, W/ Washer

VENT - transmission case oil, includes felt washer, 1/8 PT x 1 inch, used with machines dated prior to 1981 (Replaces breather 61991R91)

1шт.

21

217-84

PLUG,Hex Hd, 1/8"-27, Brass

- filler and drain, hex, 1/8 inch PT, used with machines dated 1981 and after (Replaces plug 444814)

1шт.

22

444595

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG - square head, 3/4 inch PT, no longer used, order plug 217-442 below (Replaces plug 444592)

1шт.

22

217-442

PLUG,3/4" - 14

- hex socket, 3/4 inch PT (Replaces plug 9409947)

1шт.

23

388093R1

U-JOINT SPIDER

SPIDER - differential

1шт.

24

360961R1

GEAR

PINION - differential bevel, 15 tooth

4шт.

25

573971R2

CAP

- differential pinion shaft

1шт.

26311R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

- hex, 3/8 NC x 1-1/8 inch (Replaces bolt 27347R1)

1шт.

26

381222R1

SHIM

- differential pinion, 0.007 inch

1шт.

27

381192R1

RING

- differential pinion shaft cap, left-hand seal

1шт.

26

405626R1

SHIM

- differential pinion, 0.003 inch

1шт.

28

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

- Differential pinion shaft

2шт.

29

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING - differential pinion shaft cone

2шт.

30

405102R1

SHAFT

- differential pinion, includes gear, 15 tooth and 23 tooth

1шт.

31

573997R3

GASKET,0.41mm Thk

- change gear cover (Replaces gasket 573997R2)

1шт.

32

121811C2

COVER ASSY

COVER - change gear

1шт.

26311R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

- hex, 3/8 NC x 1-1/8 inch (Replaces bolt 27347R1)

10шт.

33

370504R1

RING

- snap, transmission intermediate shaft

1шт.

34

404207R1

RING,61.6mm ID x 68.4mm OD x 2.54mm Thk

- transmission case seal

1шт.

34

379433R1

RING

- transmission case seal

1шт.

35

ST246

BALL BEARING,30mm ID x 62mm OD x 16mm W

BEARING - transmission intermediate shaft, left-hand

1шт.

36

382944R1

SHAFT

- transmission intermediate

1шт.

382879R1

NUT

- transmission intermediate shaft

1шт.

37

533731R1

SPACER

- intermediate shaft, left-hand

1шт.

382900R1

LOCK WASHER

- lock, transmission intermediate shaft

1шт.

39

574925R2

GEAR

- intermediate drive pinion, 17 tooth

1шт.

40

379454R91

BEARING, ROLLER,1.378" ID x 3.1496" OD x 0.8268"

BEARING - intermediate shaft, right-hand

1шт.

41

379439R1

RETAINER

CAGE - intermediate shaft bearing, right-hand

1шт.

26678R1

BOLT,Hex, 5/16" - 18 x 1", Gr 8

SCREW - hex, 5/16 NC x 7/8 inch (Replaces screw 214168R1)

3шт.

42

533849R1

GEAR

- chain driven, 25 teeth

1шт.

43

382901R1

LOCK WASHER,26.16mm ID x 47.8mm OD x 3.18mm Thk

- transmission intermediate shaft

1шт.

44

211-1014

BALL,7/16" Dia

- gear shift lock, chrome alloy steel, 7/16 inch, grade 24 (Replaces steel ball 17014R1)

2шт.

45

211-1016

BALL,12.7mm OD, Gr 24

- gear shift lock, chrome alloy steel, 1/2 inch, grade 24 (Replaces steel ball 17016R1)

2шт.

46

588801R1

SPRING

- gear shift lock ball

2шт.

47

76349

PLUG,9/16" - 18 ORB

(Replaces plug 9410358) Hex Hd, 9/16"-18 ORB

2шт.

49

184342C1

COUPLING

SLEEVE - axle drive shaft (Replaces sleeve 598890C1)

4шт.

326-548

BOLT,Hex, 5/16" - 18 x 3", Gr 8

(Replaces bolt 25236R1) Hex, 5/16"-18 x 3", G8

4шт.

231-1435

LOCK NUT,5/16"-18, GB

NUT - hex, 5/16 inch NC (Replaces nut 25077R1)

4шт.

50

101-11162

SNAP RING,#152, 1.527", Ext

RING - snap, transmission intermediate shaft (Replaces rings 573984R1 and R15364)

1шт.

51

934593R1

CIRCLIP,#80, 75.4 x 4.85 x 1.7

RING - snap, intermediate shaft right-hand bearing (Replaces ring ST419)

1шт.

52

221-1405

ELBOW,45 Degree, 3/4"-14, NPT

- street, 45 degree x 3/4 inch NPT (Replaces elbow 140798)

1шт.

54

219682C1

CHANNEL

- transmission mounting

1шт.

55

219683C1

SHIM

- transmission mounting

1шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

(Replaces bolt 180177) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

6шт.

495-51053

WASHER,13.49mm ID x 25.4mm OD x 1.6mm Thk

- flat, 17/32 x 1 x 3/64 inch (Replaces washer 178373R1)

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces nut 120378) 1/2"-13, G5

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 120384) 1/2"

6шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch (Replaces bolt 180124)

5шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

5шт.

56

217-46

REDUCER,3/4" - 14 NPTF x 3/8" - 18 Fem NPTF

- hex, 3/4 PT x 3/8 inch PT, used with machines dated 1981 and after (Replaces adapters 144041 and 115224)

1шт.

57

219-436

BREATHER,3/8" - 18 NPT, Short, W/ Washer

- straight, 3/8 PT x 1-1/2 inch, used with machines dated 1981 and after (Replaces fitting 91916R91)

1шт.

48

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Shift lock ball spring outside plug (Replaces O-ring 364839R1)

1шт.
