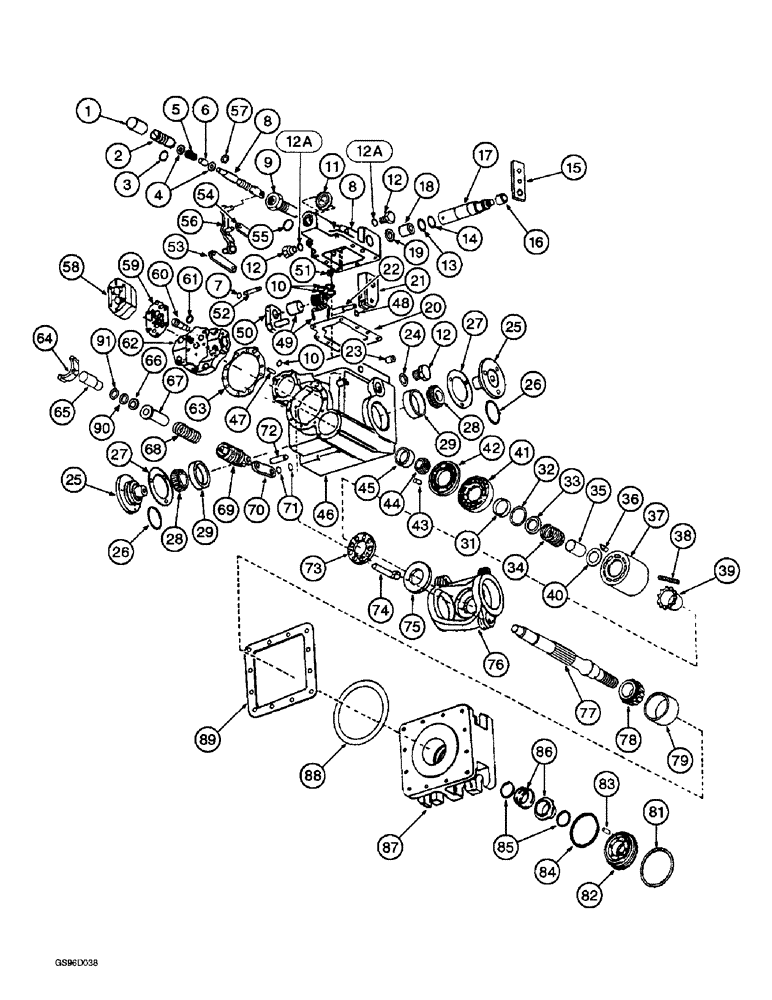

Запчасти Case IH 1400 (6-16) - HYDROSTATIC PUMP, SUNDSTRAND (03) - POWER TRAIN

1252353C91

REMAN-HYD PUMP

PUMP ASSEMBLY - hydrostatic, remanufactured, optional with pump assembly 1255014C91, parts list pages 6-15 and 6-15B

1шт.

1

S106759

COVER

- centering spring housing (Replaces cover 400546R1)

1шт.

2

394224R1

SCREW,Sl, 3/4" - 16 x 1.56"

- centering spring adjusting

1шт.

425-1512

JAM NUT,Jam, 3/4"-10, G5

replaces nuts 219753 and 427350 Jam, 3/4"-10, G5

1шт.

3

238-5019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

-019, 70 Duro, .801" ID x .070" Thk (Replaces O-ring 364840R1)

1шт.

4

527553R1

SPRING WASHER

- centering spring

2шт.

5

S106742

SPRING

- centering (Replaces spring 527554R1)

1шт.

6

394227R1

SLEEVE

- centering spring

1шт.

7

100-3425

SNAP RING,#25, Ext, E-Type

RING, RETAINING, , replaces ring 21346R1 #25, Ext, E-Type

2шт.

8

533856R1

VALVE

KIT - control valve and spool

1шт.

9

S106739

HOUSING

- centering spring (Replaces housing 394223R1)

1шт.

10

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

(Replaces O-ring 382997R1) -014, 90 Duro, .489" ID x .070" Thk

4шт.

11

S106740

NUT

- centering spring housing (Replaces nut 394223R1)

1шт.

12

9672438

PLUG,7/16" - 20 ORB

(Replaces plug 9410356) Hex Hd, 7/16"-20 ORB

3шт.

12a

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk (Replaces 369751R1)

2шт.

13

238-5023

O-RING,0.07" Thk x 1.051" ID, -23, Cl 5, 75 Duro

-023, 70 Duro, 1.051" ID x .070" Thk (Replaces O-ring 23178R1)

1шт.

14

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

(Replaces O-ring 379365R1) -012, 90 Duro, .364" ID x .070" Thk

1шт.

15

404782R2

PLATE

- control valve shaft (Replaces handle 404782R1)

1шт.

16

404783R1

SPACER

- control valve shaft

1шт.

17

S106750

SHAFT

- control valve handle (Replaces shaft 394228R1)

1шт.

425-114

NUT,1/4"-28, G5

Replaces nut 114501 1/4"-28, G5

1шт.

493-41026

LOCK WASHER,Ext Tooth, 1/4"

WASHER, (Replaces washer 121753) Ext Tooth, 1/4"

1шт.

18

S106757

BUSHING

- control shaft (Replaces bushing 404711R1)

1шт.

19

235529R1

SNAP RING,#50, Ext, Crescent

Ring, Snap, , handle shaft #50, Ext, Crescent

1шт.

20

N8404

GASKET

- control valve housing (Replaces gasket 394237R2)

1шт.

21

S106753

LEVER

LINK - handle shaft (Replaces link 406903R1)

1шт.

22

S106751

STOP

PIN - handle shaft link (Replaces pin 406905R1)

1шт.

23

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket, 1/8 inch PT (Replaces plug 444687)

1шт.

25

F23141

FLANGE

TRUNNION - swashplate bearing (Replaces trunnion 394204R1)

2шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Replaces bolt 179837) Hex, 3/8"-16 x 3/4", G5, Full Thd

6шт.

F23114

WASHER

- flat, 13/32 x 11/16 x 7/64 inch (Replaces washer 394881R1)

6шт.

26

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

(Replaces O-ring 21003R1) -230, 70 Duro, 2.484" ID x .139" Thk

2шт.

27

394205R91

SET

KIT - trunnion gasket

1шт.

394200R91

BEARING ASSY,1.0005" ID x 2.3442" OD x 0.923, 0.72"

ASSEMBLY - drive shaft rear pilot

1шт.

28

165963R91

BEARING

- swashplate cone

2шт.

29

560954R1

BEARING ASSY,1.37525" ID x 2.8755" OD x 0.9688"

- swashplate cup

2шт.

31

394197R1

RING

- cylinder block bearing plate pilot

1шт.

32

21016R1

SNAP RING,#231, 2.413, Int, Spiral

RING - internal spiral retaining, 2-13/32 inch

1шт.

33

F23175

RETAINER

- drive shaft rear spring (Replaces retainer 394195R1)

1шт.

34

R30961

SPRING

- drive shaft rear (Replaces spring 532290R2)

1шт.

35

394193R1

BUSHING

- drive shaft rear spring

1шт.

36

R26252

PIN

- cylinder block bearing plate (Replaces pin 527636R1)

1шт.

37

NSS

NOT SOLD SEPARAT

BLOCK - piston cylinder, order kit 133789C92

1шт.

38

H387027

SPRING

- slipper retainer (Replaces spring 67789C1)

6шт.

39

F23181

GUIDE

- cylinder block piston slipper (Replaces guide 394188R1)

1шт.

40

F23178

SPRING SEAT

SEAT - piston cylinder block spring (Replaces seat 394192R1)

1шт.

41

399406R1

PLATE

- cylinder block bearing

1шт.

42

F23278

PLATE

- cylinder block valve (Replaces plate 530769R1)

1шт.

43

394825R1

DOWEL

- 5/16 x 5/8 inch

1шт.

44

NSS

NOT SOLD SEPARAT

BEARING - drive shaft rear pilot cone, order bearing assembly 394200R91

1шт.

45

NSS

NOT SOLD SEPARAT

BEARING - drive shaft rear pilot cup, order bearing assembly 394200R91

1шт.

46

F23126

HOUSING

- transmission pump (Replaces housing 394179R1)

1шт.

47

21061R1

DOWEL,3/8" x 1/2"

PIN, 3/8" x 1/2

4шт.

48

100-3425

SNAP RING,#25, Ext, E-Type

Ring, Retaining, , replaces ring 21346R1 #25, Ext, E-Type

1шт.

49

71923C91

KIT

- sleeve and spring

1шт.

50

S106749

ACTUATOR

- control valve handle shaft return spring (Replaces actuator 394232R1)

1шт.

38-1816

LOCK PIN,1/8" x 1", Slotted

Pin, , replaces pin 18518R1 1/8" x 1", Slotted

1шт.

51

D80606

PLUG

- control valve orifice (Replaces plug 394219R1)

1шт.

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

Replaces bolt 179806 Hex, 1/4"-20 x 2 1/4", G5

9шт.

21784R1

WASHER

- flat, 9/32 x 1/2 x 1/16 inch (Replaces washer 385180R1)

9шт.

52

F23149

AXLE PIN

PIN - control valve link front (Replaces pin 394215R1)

1шт.

53

F23147

LINK

- control valve (Replaces link 394214R1)

1шт.

54

R26259

LINK

CONNECTOR - control valve link (Replaces connector 406904R1)

1шт.

55

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

-014, 70 Duro, .489" ID x .070" Thk (Replaces O-ring 370920R1)

1шт.

56

S106746

LINK

- control valve (Replaces link 128033C1)

1шт.

57

100-1325

SNAP RING,#25, Ext, Crescent

Ring, Snap, , spring adjusting screw, replaces ring 233045R1 #25, Ext, Crescent

1шт.

58

404777R92

PUMP, HYDRAULIC

PUMP - hydraulic charge

1шт.

413-448

BOLT,Hex, 1/4" - 20 x 3", Gr 5

replaces bolt 179809 Hex, 1/4"-20 x 3", G5

4шт.

21784R1

WASHER

- flat, 9/32 x 1/2 x 1/16 inch (Replaces washer 385180R1)

4шт.

59

R26262

GASKET

- charge pump (Replaces gasket 533858R1)

1шт.

60

394238R91

VALVE

- check, charge pump

2шт.

61

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk (Replaces O-ring 371544R1)

2шт.

62

NSS

NOT SOLD SEPARAT

COVER - transmission pump rear end, order pump assembly 1252353C91

1шт.

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Replaces bolt 179847 Hex, 3/8"-16 x 2", G5

3шт.

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

(Replaces bolt 179851) Hex, 3/8"-16 x 3", G5

5шт.

F23114

WASHER

- flat, 13/32 x 11/16 x 7/64 inch

9шт.

63

F23117

GASKET,0.25mm Thk

- pump rear end cover (Replaces gasket 394218R1)

1шт.

64

F23162

RETAINER

- servo piston sleeve (Replaces retainer 394213R1)

2шт.

536291R1

SCREW

- hex, No. 10 x 3/8 inch

4шт.

65

S97911

SLEEVE ASSY

SLEEVE - servo piston (Replaces sleeve 403074R2)

2шт.

66

394207R1

WASHER

- servo piston bolt

2шт.

67

F23169

GUIDE

- servo piston spring (Replaces guide 394211R1)

2шт.

68

H386995

SPRING

- servo piston (Replaces spring 549726R1)

2шт.

69

537761R1

PISTON

- servo

2шт.

537762R1

SCREW

- hex, 1/4 NC x 5/8 inch

2шт.

70

S113617

LINK

- servo piston (Replaces link 549725R1)

2шт.

71

100-1162

SNAP RING,#62, Ext

Ring, Snap, , servo piston link pin, replaces rings 267805R1 and 269174R1 #62, Ext

8шт.

72

S97916

PIN

- servo piston link (Replaces pin 65797C1)

4шт.

73

F23182

RETAINER

- cylinder block piston slipper (Replaces retainer 394189R1)

1шт.

74

142484C1

PISTON ASSY.

PISTON - cylinder block

9шт.

75

F23183

PLATE

- piston slipper thrust (Replaces plate 394186R3)

1шт.

76

405071R1

PLATE

SWASHPLATE - transmission pump

1шт.

77

404779R1

SHAFT

- pump drive

1шт.

394181R91

BEARING ASSY,1.563" ID x 3.1572" OD x 1.1593, 0.9375"

ASSEMBLY - drive shaft front

1шт.

78

NSS

NOT SOLD SEPARAT

BEARING - drive shaft front cone, order bearing assembly 394181R91

1шт.

79

NSS

NOT SOLD SEPARAT

BEARING - drive shaft front cup, order bearing assembly 394181R91

1шт.

81

393883R1

SNAP RING,3.346", Int, #334

Ring, Snap, , face seal 3.346", Int, #334

1шт.

82

N6880

RETAINER

- drive shaft face seal (Replaces retainer 393881R91)

1шт.

403072R92

O-RING KIT

KIT - O-ring and seal

1шт.

83

F23156

SPRING

- drive shaft face seal retainer (Replaces spring 393882R1)

6шт.

84

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

(Replaces O-ring 707220R1) -234, 70 Duro, 2.984" ID x .139" Thk

1шт.

85

238-7129

O-RING,0.103" Thk x 1.549" ID, -129, Cl 7, 75 Duro

replaces O-ring 26078R1 -129, Cl 7, 1.549" ID x .103" Thk

2шт.

86

NSS

NOT SOLD SEPARAT

SEAL - housing and shaft, order kit 403072R92

1шт.

87

F23153

COVER

- pump front (Replaces cover 404778R1)

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Replaces bolt 179841 Hex, 3/8"-16 x 1 1/4", G5, Full Thd

12шт.

F23114

WASHER

- flat, 13/32 x 11/16 x 7/64 inch (Replaces washer 394881R1)

13шт.

88

1971424C1

PACKAGE

SHIM - rear bearing, 0.010 inch (Replaces shim 404780R1)

1шт.

89

F23152

GASKET

- pump front cover (Replaces gasket 394184R1)

1шт.

90

238-5144

O-RING,0.103" Thk x 2.487" ID, -144, Cl 5, 75 Duro

replaces O-ring 327110R1 -144, 90 Duro, 2.487" ID x .103" Thk

2шт.

91

238-5142

O-RING,0.103" Thk x 2.362" ID, -142, Cl 5, 75 Duro

(Replaces O-ring 21005R1) -142, 90 Duro, 2.362" ID x .103" Thk

2шт.

133789C92

KIT

- cylinder block

1шт.

142876R91

KIT - control valve

1шт.
