Запчасти Case IH 1400 (6-14) - HYDROSTATIC PUMP, EATON (03) - POWER TRAIN

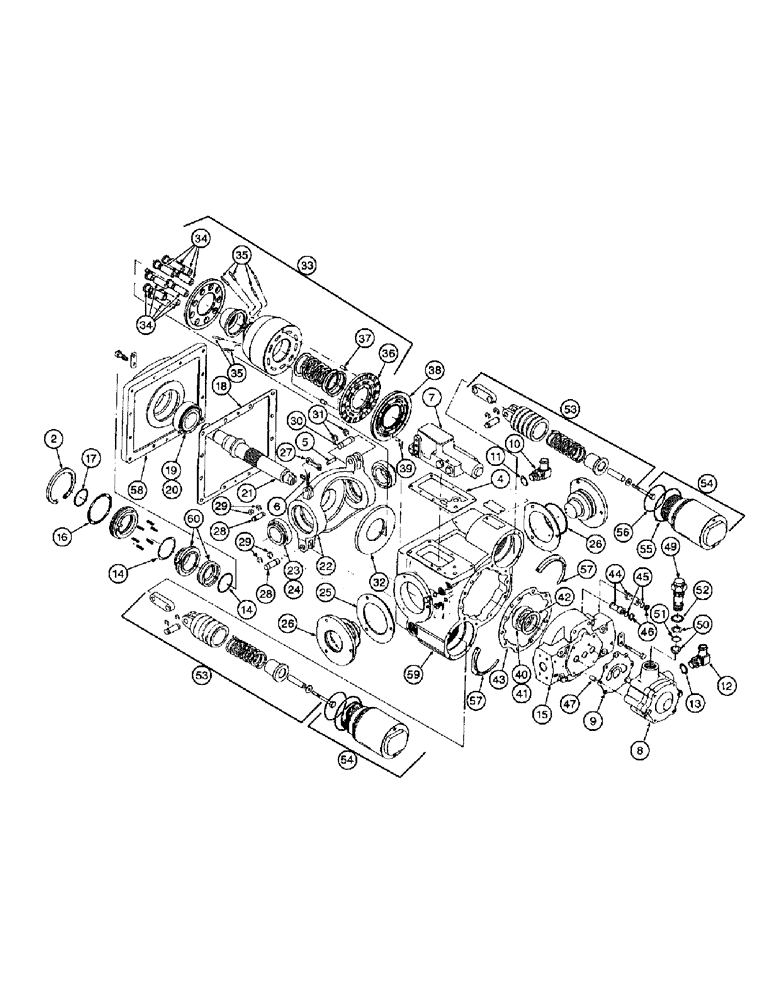

Схема запчастей Case IH 1400 - (6-14) - HYDROSTATIC PUMP, EATON (03) - POWER TRAIN
45
38
20
54
28
10
43
40
30
11
57
29
14
23
24
18
42
55
59
60
56
34
5
37
2
44
17
51
13
28
33
14
16
21
57
46
47
31
35
7
41
58
53
22
39
9
12
26
15
32
35
54
49
25
6
4
53
34
8
52
50
29
36
27
26
19

Артикул

Название

Примечание

Количество

1255014C91

PUMP

ASSEMBLY - hydrostatic, remanufactured, optional with pump assembly 1252353C91, parts list pages 6-17 - 6-17D, no longer available, order pump assembly 1330477C4, parts list pages 6-37 and 6-37B

1шт.

2

606937C1

SNAP RING,2.835", Int, #281

Ring, Snap, 2.835", Int, #281

1шт.

133755C94

VALVE

KIT - control valve (Replaces kit 133755C91)

1шт.

1978048C2

SHAFT

- control valve (Replaces shaft 1255148C1)

1шт.

4

133756C1

GASKET

- control valve

1шт.

4a

404782R2

PLATE

- control valve shaft (Replaces handle 404782R1)

1шт.

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch (Replaces bolt 179824)

2шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch (Replaces bolt 179818)

4шт.

493-41026

LOCK WASHER,Ext Tooth, 1/4"

WASHER, (Replaces washer 121753) Ext Tooth, 1/4"

1шт.

425-144

JAM NUT,Jam, 1/4"-20, G5

- hex jam, 1/4 inch NC (Replaces nut 114501)

1шт.

5

133757C1

PIN

- linkage clevis

1шт.

6

133758C1

SPRING

PIN - hitch

1шт.

8

133761C91

PUMP

ASSEMBLY - charge, right-hand

1шт.

9

133760C2

GASKET

- charge pump (Replaces gasket 133760C1)

1шт.

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

- hex, 5/16 NC x 3-1/2 inch (Replaces bolt 186270)

4шт.

10

217-363

FITTING,90 Degree Elbow, 5/8" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW, 90°, 5/8" Hose x 1 1/16"-12 ORB Beaded, Adjustable, Case drain (Replaces elbow 171949C1)

2шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

2шт.

12

217822C1

ELBOW

- barb hose, charge pump

1шт.

13

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide (Replaces O-ring 296247R1)

1шт.

14

238-5131

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

(Replaces 22278R1) -131, 70 Duro, 1.674" ID x .103" Thk

1шт.

15

NSS

NOT SOLD SEPARAT

COVER - pump end, order pump assembly 1255014C91

1шт.

113-351

BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5

(Replaces 179869) Hex, 7/16"-14 x 2 3/4", G5

6шт.

413-732

BOLT,Hex, 7/16" - 14 x 2", Gr 5

- hex, 7/16 NC x 2 inch (Replaces bolt 179866)

2шт.

16

383017R1

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

- shaft seal, 2-9/16 x 2-3/4 x 3/32 inch

1шт.

17

S98648

O-RING

- shaft seal, 1-3/8 x 1-1/2 x 1/16 inch (Replaces O-ring 24472R1)

1шт.

18

140784C2

GASKET

- mounting flange (Replaces gasket 140784C1)

1шт.

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

- hex, 7/16 NC x 1-1/4 inch (Replaces bolt 179860)

12шт.

19

636826R91

BEARING ASSY,44.45 mm ID x 51 mm OD x 25.4 mm

BEARING - input shaft cone

1шт.

20

130503H

BEARING CUP

BEARING - input shaft cup

1шт.

21

1980129C1

SHAFT

- input (Replaces shaft 140775C1)

1шт.

22

1252145C1

HOUSING

- variable swashplate

1шт.

23

399933C91

ROLLER BEARING,45.24mm ID x 19.81mm W

BEARING - trunnion cone

2шт.

24

399934C1

BEARING CUP,73.43mm OD x 15.75mm W

BEARING - trunnion cup 2-7/8 OD

2шт.

25

142386C91

SHIM KIT

KIT - trunnion shim service

1шт.

26

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

Trunnion (Replaces O-ring 707220R1) -234, 70 Duro, 2.984" ID x .139" Thk

2шт.

413-714

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5

- hex, 7/16 NC x 7/8 inch (Replaces bolt 179857)

6шт.

27

142387C1

PIPE FITTING

LINK - control valve

1шт.

28

140765C1

PIN

- control valve link

1шт.

29

100-1325

SNAP RING,#25, Ext, Crescent

Ring, Snap, (replaces ring 233045R1) #25, Ext, Crescent

2шт.

30

140766C1

PIN,14.22mm OD x 39.12mm L

- servo linkage

2шт.

31

28145R1

SNAP RING,#56, Ext

Ring, Snap, #56, Ext

4шт.

32

191115A1

PACKAGE

PLATE - thrust (Replaces plate 142388C1)

1шт.

33

140777C91

KIT

- rotating group

1шт.

34

140778C1

PISTON

- cylinder block

9шт.

35

140779C1

PIN

- pre-load dowel

6шт.

36

140780C1

BEARING WASHER

- bearing

1шт.

37

140754C1

PIN

- bearing plate dowel

2шт.

38

1255222C1

PLATE

- right-hand pump valve

1шт.

39

140754C1

PIN

DOWEL - pump valve plate

1шт.

40

NSS

NOT SOLD SEPARAT

BEARING - input shaft cone, order set 396089R91

1шт.

41

NSS

NOT SOLD SEPARAT

BEARING - input shaft cup, order set 396089R91

1шт.

42

140783C91

PACKAGE

KIT - shim service

1шт.

43

140782C2

GASKET

- end cover (Replaces gasket 140782C1)

1шт.

413-732

BOLT,Hex, 7/16" - 14 x 2", Gr 5

- hex, 7/16 NC x 2 inch (Replaces bolt 179866)

2шт.

113-351

BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5

(Replaces 179869) Hex, 7/16"-14 x 2 3/4", G5

2шт.

44

140769C1

CHECK VALVE

VALVE - check

2шт.

45

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

Check valve (Replaces O-ring 377952R1) -113, 90 Duro, .549" ID x .103" Thk

2шт.

46

140770C1

RING

- check valve back-up

2шт.

47

140754C1

PIN

DOWEL - charge pump

2шт.

393885R91

GASKET KIT

KIT - relief valve seal

1шт.

49

140771C1

VALVE

- low pressure relief

1шт.

50

393887R1

BACK-UP RING

RING - back-up

2шт.

51

237-6117

O-RING - 13/16 ID x 3/32 inch wide (Replaces O-ring 20947R1)

1шт.

52

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk (Replaces 297459R1)

1шт.

53

224669C91

PISTON

- servo

2шт.

54

140773C1

KIT

- servo sleeve

2шт.

55

238-5147

O-RING,0.103" Thk x 2.675" ID, -147, Cl 5, 75 Duro

Servo sleeve (Replaces 383018R1) -147, 90 Duro, 2.675" ID x .103" Thk

2шт.

56

238-5143

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

Servo sleeve (Replaces O-ring 22280R1) -143, 90 Duro, 2.425" ID x .103" Thk

2шт.

57

140774C1

RETAINER

- servo

2шт.

461-3086

HEX SOC SCREW,#8 - 32 x 3/8"

BOLT - hex socket, No. 8 NC x 3/8 inch (Replaces screw 28144R1)

6шт.

58

NSS

NOT SOLD SEPARAT

FLANGE - mounting, order pump assembly 1255014C91

1шт.

59

NSS

NOT SOLD SEPARAT

HOUSING - variable, order pump assembly 1255014C91

1шт.

60

1346205C1

SEAL KIT

KIT - shaft seal (Replaces kit 142518C91)

1шт.

Выбрано товаров: 73
