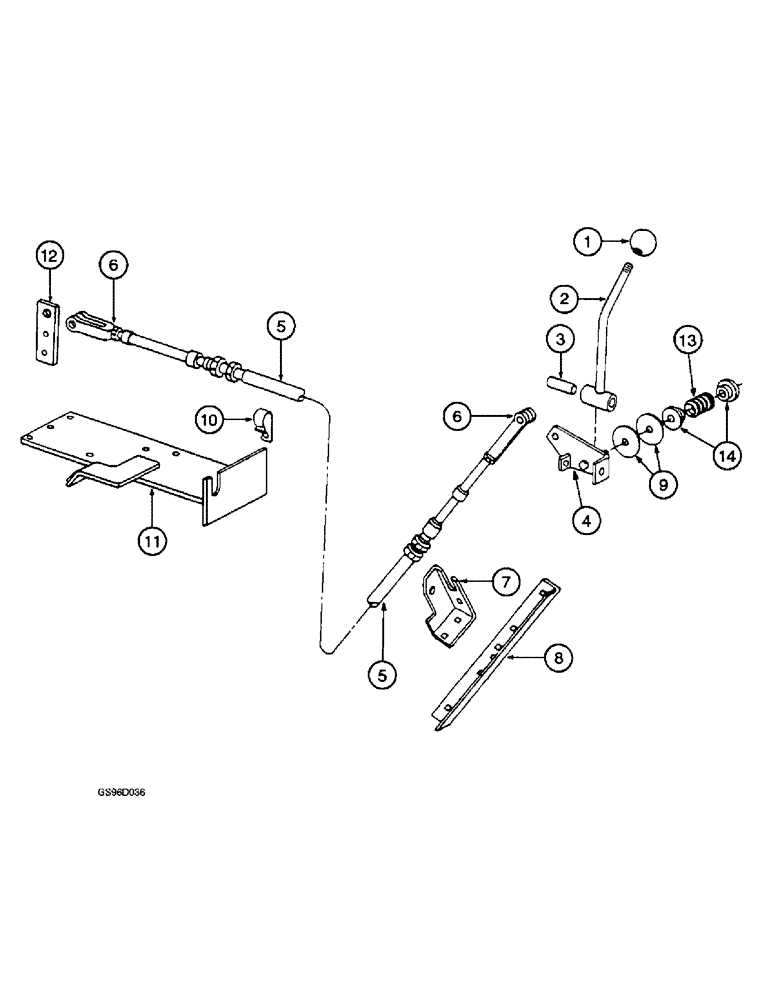

Запчасти Case IH 1400 (6-12) - PROPULSION CONTROL (03) - POWER TRAIN

1

175815C1

KNOB

- propulsion lever

1шт.

2

222398C1

LEVER

- propulsion control

1шт.

3

222400C1

SPACER

- control

1шт.

413-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

- hex, 5/16 NC x 3-1/4 inch (Replaces bolt 180735)

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 120376)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

1шт.

4

222086C1

PIVOT

- propulsion lever

1шт.

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4" (Replaces pin 120123)

1шт.

5

1329383C1

CABLE

- propulsion control (Replaces cable 674589R1)

1шт.

6

213-125

ADJUSTABLE CLEVIS,5/16" - 32

(Replaces clevis 104037) 5/16"-24

2шт.

327-5094

CLEVIS PIN,5/16" x .940"

PIN - clevis, 5/16 x 15/16 inch (Replaces pin 121741)

2шт.

432-616

COTTER PIN,3/32" x 1"

(Replaces pin 137159) 3/32" x 1"

2шт.

7

214542C1

SUPPORT

BRACKET - propulsion control

1шт.

8

222455C1

SUPPORT

- cable bracket

1шт.

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - self-tapping, hex head, 1/4 NC x 1/2 inch (Replaces screw 552897R1)

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 180077)

5шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 120376)

3шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

3шт.

9

58666D

FRICTION WASHER

- friction

2шт.

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC (Replaces nut 9413967)

1шт.

10

358986R1

CABLE CLIP

CLIP - cable

1шт.

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

(Replaces bolt 180173) Hex, 1/2"-13 x 1", G5, Full Thd

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces nut 120378) 1/2"-13, G5

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 120384) 1/2"

1шт.

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex jam, 5/16 inch NF (Replaces nut 124920)

2шт.

11

222125C2

SUPPORT - pump control

1шт.

12

674588R1

LEVER - pump

1шт.

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch (Replaces bolt 180022)

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 120376)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

1шт.

219618C2

BOLT

BOLT - hex, 5/16 NC x 2-1/4 inch

1шт.

678026C1

ELECTRICAL WIRE

WIRE - seal

1шт.

687459C1

ELECTRICAL WIRE

SEAL - lever (Replaces seal 678027C1)

1шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC (Replaces nut 120375)

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 120380) 1/4"

1шт.

13

55770D

SPRING

- friction plate

1шт.

14

11840R

WASHER

CLAMP - washer

2шт.
