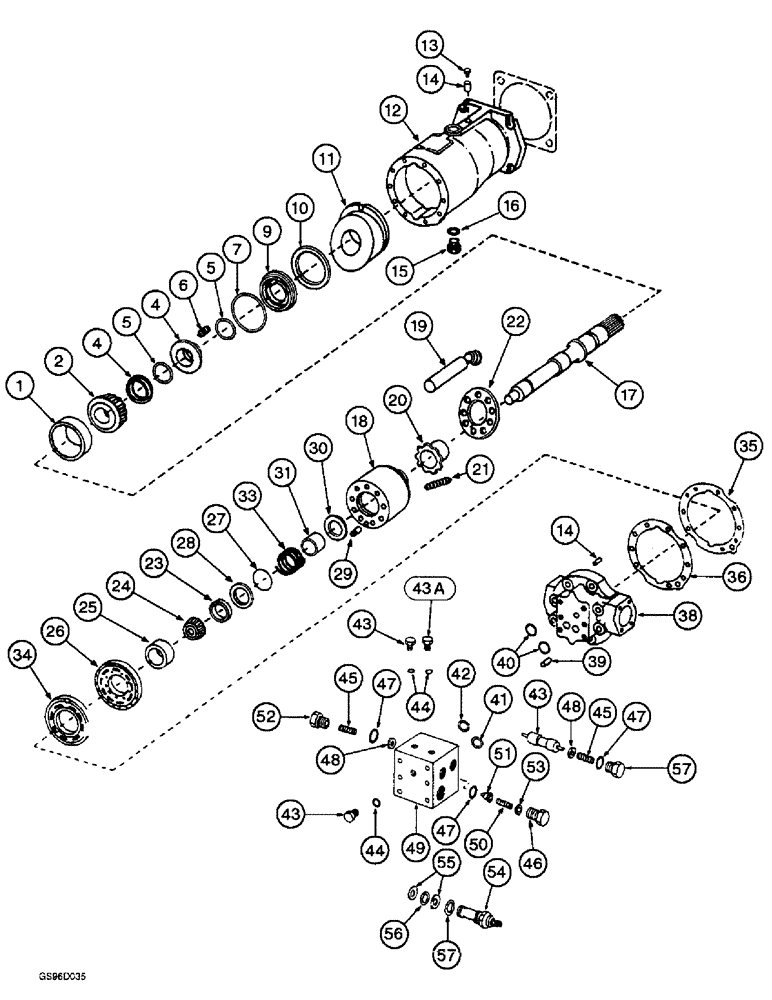

Запчасти Case IH 1400 (6-10) - HYDROSTATIC MOTOR, SUNDSTRAND (03) - POWER TRAIN

1255013C91

REMAN-INJECTION PUMP

MOTOR ASSEMBLY - hydrostatic, remanufactured, optional with motor assembly 1252349C93, parts list pages 6-9 and 6-9B

1шт.

394150R91

BEARING, ROLLER

BEARING ASSEMBLY - drive shaft front

1шт.

1

NSS

NOT SOLD SEPARAT

BEARING - drive shaft cup, order bearing assembly 394150R91

1шт.

2

NSS

NOT SOLD SEPARAT

BEARING - drive shaft cone, order bearing assembly 394150R91

1шт.

403072R92

O-RING KIT

KIT - drive shaft face seal

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - housing and shaft, order kit 403072R92

2шт.

5

238-7129

O-RING,0.103" Thk x 1.549" ID, -129, Cl 7, 75 Duro

- 1-9/16 ID x 3/32 inch wide (Replaces O-ring 26078R1)

2шт.

6

F23156

SPRING

- drive shaft face seal retainer (Replaces spring 393882R1)

6шт.

7

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

(Replaces O-ring 707220R1) -234, 70 Duro, 2.984" ID x .139" Thk

1шт.

9

N6880

RETAINER

- drive shaft seal (Replaces retainer 393881R91)

1шт.

10

393883R1

SNAP RING,3.346", Int, #334

Ring, Snap, , drive shaft face seal 3.346", Int, #334

1шт.

11

394152R1

PLATE

SWASHPLATE - hydrostatic motor

1шт.

12

NSS

NOT SOLD SEPARAT

HOUSING - motor, order motor assembly 1255013C91

1шт.

13

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket, 1/8 inch PT (Replaces plug 444687)

1шт.

14

394825R1

DOWEL

- 5/16 x 5/8 inch

2шт.

15

86512512

PLUG,7/8" - 14 ORB

- hex, 7/8-14 inch O-ring boss (Replaces plug 9410360)

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 ID x 3/32 inch wide (Replaces O-ring 364885R1)

1шт.

17

F23206

SHAFT

- motor drive (Replaces shaft 404798R1)

1шт.

18

138038C91

PACKAGE

KIT - cylinder block

1шт.

19

1543193C1

PISTON

- cylinder block (Replaces piston 539256R1)

9шт.

20

F23205

GUIDE

- cylinder block piston slipper (Replaces guide 394154R1)

1шт.

21

D80484

SPRING

- slipper retainer (Replaces spring 71220C1)

6шт.

22

F23207

FLANGE

RETAINER - cylinder block piston slipper guide (Replaces retainer 394155R1)

1шт.

23

F23197

WASHER

RING - cylinder block bearing plate pilot (Replaces ring 394162R1)

1шт.

394166R91

BEARING ASSY,0.75" ID x 2.125" OD x 0.878, 0.625"

BEARING ASSEMBLY - drive shaft rear pilot

1шт.

24

NSS

NOT SOLD SEPARAT

BEARING - rear pilot cone, order bearing assembly 394166R91

1шт.

25

NSS

NOT SOLD SEPARAT

BEARING - rear pilot cup, order bearing assembly 394166R91

1шт.

26

404201R1

PLATE

- culinder block bearing

1шт.

27

21015R1

SNAP RING,#212, 2.217, Int, Spiral

RING - internal spiral retaining, 2-7/32 inch

1шт.

28

394161R1

RETAINER

RING - cylinder block bearing plate pilot

1шт.

29

F23203

PIN

- cylinder block bearing plate (Replaces pin 394164R1)

1шт.

30

394158R1

SEAT

- piston cylinder block spring

1шт.

31

F23200

GUIDE

BUSHING - drive shaft rear spring (Replaces bushing 394159R1)

1шт.

33

394194R1

SPRING

- drive shaft rear

1шт.

34

F23279

SHIN

PLATE - cylinder block valve (Replaces plate 530768R1)

1шт.

35

404197R1

SHIM

- motor shaft rear bearing, 0.010 inch

1шт.

36

F23193

HEADED PIN,3/4" x 4 11/16"

GASKET - motor rear end cover (Replaces gasket 394170R1)

1шт.

38

NSS

NOT SOLD SEPARAT

CAP - motor rear end, order motor assembly 1255013C91

1шт.

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Replaces bolt 179847 Hex, 3/8"-16 x 2", G5

3шт.

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

(Replaces bolt 179851) Hex, 3/8"-16 x 3", G5

3шт.

F23114

WASHER

- flat, 13/32 x 11/16 x 7/64 inch (Replaces washer 394881R1)

9шт.

39

21061R1

DOWEL,3/8" x 1/2"

Pin, , hardened 3/8" x 1/2"

2шт.

40

F23190

O-RING

WASHER - manifold valve (Replaces washer 393886R1)

2шт.

413-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 5

replaces bolt 186271 Hex, 5/16"-18 x 3 3/4", G5

6шт.

F23187

WASHER

- flat (Replaces washer 394880R1)

6шт.

41

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

(Replaces O-ring 383219R1) -119, 90 Duro, .924" ID x .103" Thk

2шт.

42

238-5020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 5, 75 Duro

-020, 70 Duro, .864" ID x .070" Thk (Replaces O-ring 610547C1)

1шт.

394171R91

VALVE

ASSEMBLY - hydrostatic motor

1шт.

43

NSS

NOT SOLD SEPARAT

SPOOL - shuttle valve, order valve assembly 394171R91

1шт.

43a

9672438

PLUG,7/16" - 20 ORB

(Replaces plug 9410356) Hex Hd, 7/16"-20 ORB

3шт.

44

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk (Replaces 369751R1)

3шт.

45

394176R1

SPRING

- manifold shuttle valve

3шт.

46

H407726

PLUG

- relief valve (Replaces plug 394173R1)

1шт.

47

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 ID x 3/32 inch wide (Replaces O-ring 364885R1)

3шт.

48

394177R1

WASHER

- manifold shuttle valve

3шт.

49

529426R1

HOUSING

- manifold valve, includes spool

1шт.

50

531174R1

SPRING

- manifold relief valve

1шт.

51

531175R1

PISTON

- manifold relief valve

1шт.

52

63432C1

PLUG

- manifold shuttle valve

2шт.

53

H407767

KIT

- relief valve shim (Replaces kit 394279R91)

1шт.

54

1971415C2

VALVE

ASSEMBLY - high pressure relief, see page 6-9 for breakdown

2шт.

55

393887R1

BACK-UP RING

RING - relief valve back-up

4шт.

56

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

(Replaces 20947R1 ) -117, 90 Duro, .799" ID x .103" Thk

2шт.

57

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk (Replaces 297459R1)

2шт.

393884R91

KIT

- manifold seal

1шт.

393885R91

GASKET KIT

KIT - relief valve seal

1шт.
