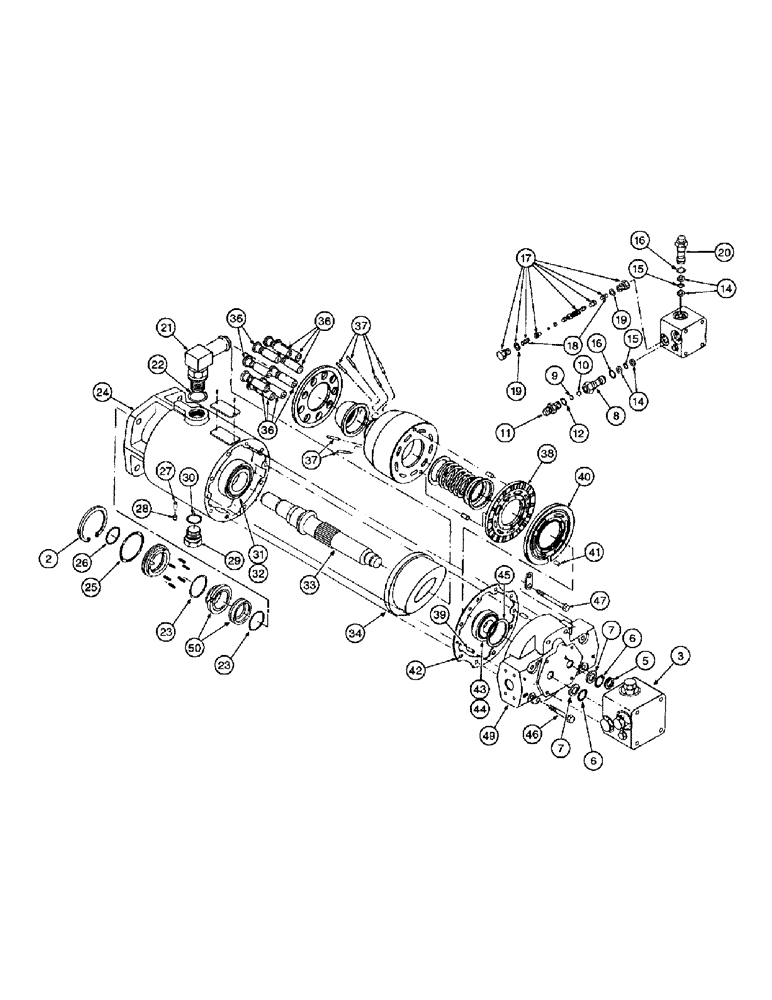

Запчасти Case IH 1400 (6-08) - HYDROSTATIC MOTOR, EATON (03) - POWER TRAIN

1252349C93

MOTOR

MOTOR ASSEMBLY - hydrostatic, remanufactured, optional with motor assembly 1255013C91, parts list pages 6-11 and 6-11B (Replaces motor assembly 1252349C92)

1шт.

1286305C93

MOTOR, HYDRAULIC

HYDRAULIC MOTOR

1шт.

1286306C92

REMAN-HYDROSTAT MOTO

Remanufactured, For N.A. Only

1шт.

1978049C1

CORE-HYDROSTAT MOTOR

Return Number, For N.A. Only

1шт.

2

606937C1

SNAP RING,2.835", Int, #281

Ring, Snap, 2.835", Int, #281

1шт.

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

BOLT - hex, 3/8 NC x 4 inch (Replaces bolt 186285)

4шт.

1971432C2

VALVE

KIT - relief valve block (Replaces kit 145554C92)

1шт.

3

NSS

NOT SOLD SEPARAT

VALVE - relief, order kit 1971432C2

1шт.

140747C92

SEAL KIT

KIT - valve block seal (Replaces kit 140747C91)

1шт.

5

133753C1

O-RING,7/16" ID x 3/4" OD x 1/16"

RING - square, 3/4 x 7/8 x 1/16 inch

1шт.

6

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

O-RING, (Replaces O-ring 384943R1) -018, 90 Duro, .739" ID x .070" Thk

2шт.

7

631458C1

RING

RING - back-up

2шт.

1971415C2

VALVE

VALVE ASSEMBLY - relief (Replaces valve assembly 402626R94)

2шт.

8

NSS

NOT SOLD SEPARAT

CARTRIDGE - valve, order valve assembly 1971415C2

1шт.

9

NSS

NOT SOLD SEPARAT

BUSHING - ball guide, order valve assembly 1971415C2

1шт.

10

211-1008

BALL,1/4" Dia

BALL - chrome alloy steel, 1/4 inch, grade 24 (Replaces steel ball 17008R1)

1шт.

11

NSS

NOT SOLD SEPARAT

CONNECTOR - special, order valve assembly 1971415C2

1шт.

12

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

O-RING, 4-1, 90 Duro, .351" ID x .072" Thk (Replaces 369751R1)

1шт.

393885R91

GASKET KIT

KIT - relief valve seal

1шт.

14

393887R1

BACK-UP RING

RING - relief valve back-up

2шт.

15

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

O-RING, (Replaces 20947R1 ) -117, 90 Duro, .799" ID x .103" Thk

1шт.

16

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

O-RING, 14-1, 90 Duro, 1.048" ID x .116" Thk (Replaces 297459R1)

1шт.

17

145559C91

KIT

KIT - shuttle valve

1шт.

18

145560C1

SPRING

SPRING - shuttle valve

2шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O-RING - shuttle valve, 3/4 ID x 3/32 inch wide (Replaces O-ring 364885R1)

2шт.

20

140761C1

VALVE PRESSURE RELIE

VALVE, PRESSURE RELIEF, Low

1шт.

21

217-363

FITTING,90 Degree Elbow, 5/8" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW, 90°, 5/8" Hose x 1 1/16"-12 ORB Beaded, Adjustable, Case drain (Replaces elbow 171949C1)

1шт.

22

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O-RING, 12-1, 90 Duro, .924 ID x .116" Thk

1шт.

23

238-5131

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

O-RING, , Shaft seal (Replaces 22278R1) -131, 70 Duro, 1.674" ID x .103" Thk

2шт.

24

NSS

NOT SOLD SEPARAT

HOUSING - fixed, order motor assembly 1252349C93

1шт.

25

238-5145

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

O-RING, , Shaft seal (Replaces 383017R1) -145, 90 Duro, 2.55" ID x .103" Thk

1шт.

26

S98648

O-RING

O-RING - shaft seal, 1-3/8 x 1-1/2 x 1/16 inch (Replaces O-ring 24472R1)

1шт.

27

37-1516

DOWEL,5/16" x 1"

DOWEL - 5/16 x 1 inch, hardened (Replaces dowel 20020R1)

1шт.

28

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

PLUG - hex socket, 1/8 inch PT (Replaces plug 444688)

1шт.

29

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

PLUG - hex, 1-1/16-12 inch O-ring boss (Replaces plug 9410361)

1шт.

30

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O-RING, 12-1, 90 Duro, .924 ID x .116" Thk

1шт.

31

636826R91

BEARING ASSY,44.45 mm ID x 51 mm OD x 25.4 mm

BEARING - output shaft cone

1шт.

32

130503H

BEARING CUP

BEARING - output shaft cup

1шт.

1252349C93

MOTOR

MOTOR ASSEMBLY - hydrostatic, continued

1шт.

33

140748C1

SHAFT

SHAFT - output, no longer available, order shaft 1980126C1

1шт.

33

1980126C1

SHAFT

SHAFT - output

1шт.

34

140749C1

HOUSING

HOUSING - fixed swashplate

1шт.

35

140750C92

KIT

KIT - rotating group

1шт.

36

140751C1

PISTON ASSY.

PISTON - cylinder block

9шт.

37

140752C1

PIN

PIN - pre-load dowel

6шт.

38

140753C1

PLATE

PLATE - bearing

1шт.

39

140754C1

PIN

PIN - bearing plate dowel

2шт.

40

140755C2

PLATE

PLATE - motor valve (Replaces plate 140755C1)

1шт.

41

140754C1

PIN

PIN - valve plate dowel

1шт.

42

140756C2

GASKET

GASKET - end cover (Replaces gasket 140756C1)

1шт.

43

140758C91

ROLLER BEARING,0.88" ID x 2.25" OD x 0.6875"

BEARING - output shaft cone

1шт.

44

140759C1

BEARING CUP

BEARING - output shaft cup

1шт.

45

140760C91

SHIM KIT

KIT - shim service

1шт.

46

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT - hex, 3/8 NC x 1-1/2 inch, end cover (Replaces bolt 179843)

2шт.

47

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

BOLT - hex, 3/8 NC x 2-3/4 inch, End cover (Replaces bolt 179850)

6шт.

49

NSS

NOT SOLD SEPARAT

COVER - end, order motor assembly 1252349C91

1шт.

50

1346205C1

SEAL KIT

KIT - shaft seal (Replaces kit 142518C91)

1шт.
