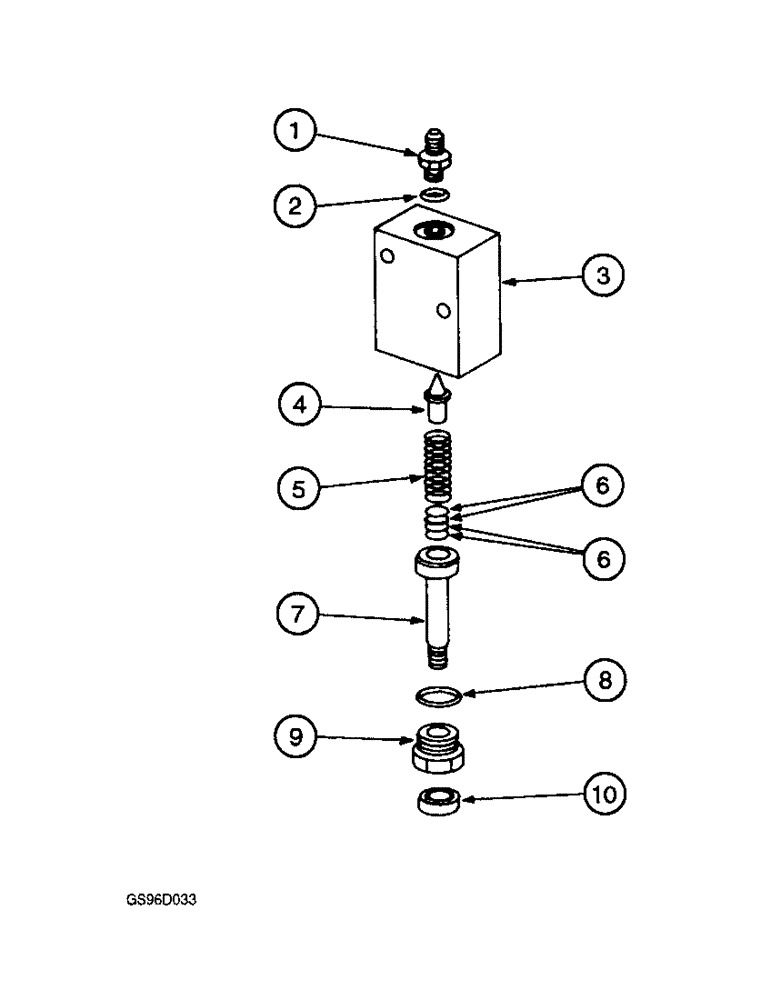

Запчасти Case IH 1400 (6-06) - FOOT-N-INCH VALVE (03) - POWER TRAIN

403347R91

LOCK VALVE

VALVE ASSEMBLY - foot-n-inch

1шт.

1

398709R2

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 JIC

- poppet valve

1шт.

2

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk (Replaces 369751R1)

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - high pressure, order valve assembly 403347R91

1шт.

4

398710R1

VALVE POPPET

VALVE - poppet

1шт.

5

403434R1

SPRING

- valve

1шт.

6

530575R91

SHIM KIT

KIT - relief valve shim

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch, order kit 530575R91

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.007 inch, order kit 530575R91

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.020 inch, order kit 530575R91

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.042 inch, order kit 530575R91

1шт.

7

398708R1

STOP

O-RING - 3/4 ID x 3/32 inch wide

1шт.

8

NSS

NOT SOLD SEPARAT

GUIDE - valve spring stop, order guide 398707R11

1шт.

9

398701R91

OIL SEAL,8.26mm ID x 19.15mm OD x 6.5mm Thk

- oil

1шт.

10

398707R1

GUIDE

- valve spring stop

1шт.
